Infrared motion sensor 10A 230VAC – Finder 18.31.8.230.0031
ID: 1195598
8012823359106
zł364.94
Tax included
zł296.70 tax excl.

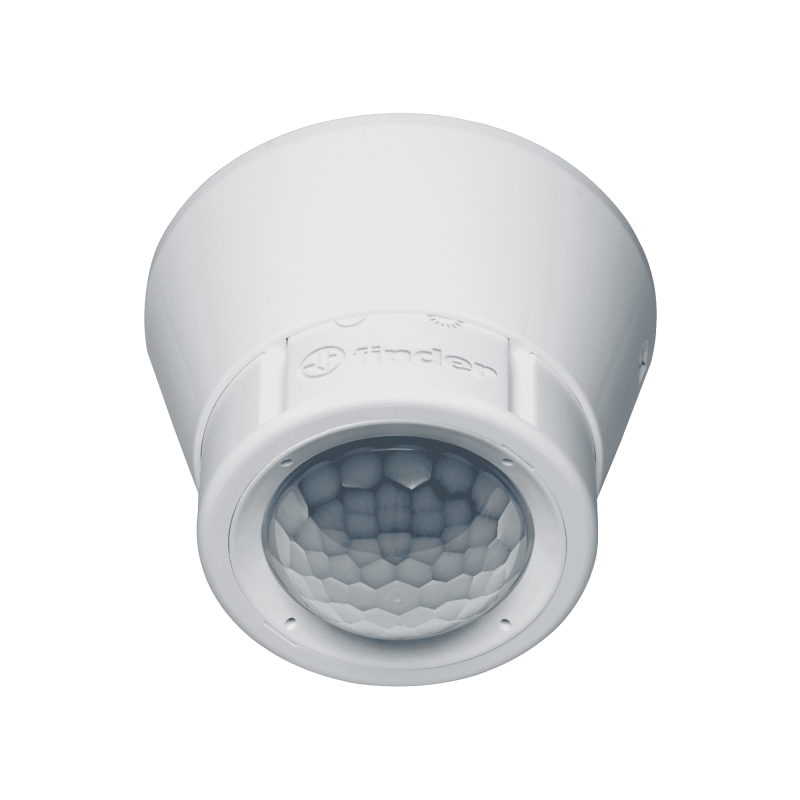

Finder 18.31.8.230.0031 is a PIR sensor for flush mounting, controlling a single NO contact rated at 10 A at 230 V AC. Ideal for automatic indoor lighting control, it is mounted in suspended ceilings and ensures reliable and safe operation.
Description
Infrared motion sensor (PIR) designed for indoor installation, flush-mounted in suspended ceilings. Presence detection is performed by the sensor, which controls a single NO (normally open) contact with a current rating of 10 A at 230 V AC. Ideal for automating lighting in offices, schools, corridors, or restrooms.
Specifications
- Sensor type: PIR, motion and presence
- Contact configuration: 1 NO (normally open)
- Maximum load rating: 230 V AC, 10 A
- Mounting method: flush-mounted in suspended ceiling
- Protection rating: IP 40
- Dimensions (W×H×D): 80 × 42 × 80 mm
- Coil supply: alternating current (AC)
- No remote control or app support
- Intended use: indoor installation
Included
- Finder 18.31.8.230.0031 sensor
- Mounting accessories for suspended ceiling
- Installation manual and wiring diagram
1195598
Manufacturer FINDER POLSKA SPÓŁKA Z OGRANICZONA ODPOWIEDZIALNOŚCIĄ Logistyczna 27, Sady 62-080 Tarnowo Podgórne Poland finder.pl@findernet.com
Responsible person FINDER POLSKA SPÓŁKA Z OGRANICZONA ODPOWIEDZIALNOŚCIĄ Logistyczna 27, Sady 62-080 Tarnowo Podgórne Poland formularz kontaktowy na stronie osoby odpowiedzialnej
