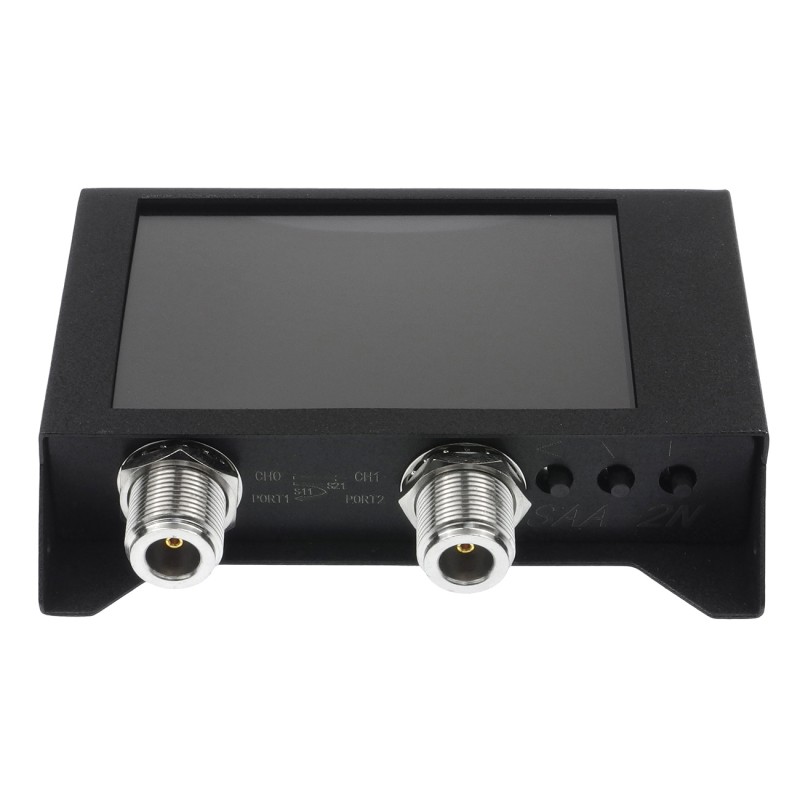

Nanovna V2 4" - 4.4GHz VNA vector network analyzer
ID: 1186045
5902186304109
zł848.15
Tax included
zł689.55 tax excl.
Vector network analyzer with two ports. It can perform measurements for frequencies from 50 kHz to 4.4 GHz. Equipped with an LCD display, it can be connected to a computer via USB. Nanovna V2 4"
Description
2-port vector network analyzer that can measure from 50kHz to 4.4GHz. It offers a dynamic range of up to 90 dB at a frequency of up to 1 GHz and up to 80 dB at a frequency of 3 GHz. It offers a cycle speed of up to 1024 points/s, allows you to determine S-parameters, amplitude and phase parameters, as well as quickly and accurately determine damage in coaxial cables. It will be used when analyzing antennas, amplifiers, wires and filters.
The VNA has a built-in 4" LCD display with a touch screen. The built-in lithium battery ensures portability of the device and is charged via the USB micro B connector. It is compatible with Linux, Windows (7+) and MacOS.
Features
- 2-port vector network analyzer
- Frequency Range: 50kHz to 4.4GHz
- Typical dynamic range: 90 dB (up to 1 GHz), 80 dB (up to 3 GHz)
- Number of points per cycle: 1024
- 4" LCD display with touch panel
- 3.7V 3200mAh battery
- Charging and communication connector: USB micro B
- Metal housing
Kit contains
- Nano V2 4"
- 2 x M-M cable 30cm
- Calibration kit
- SMA F-F Adapter
- USB cable
- Stylus
