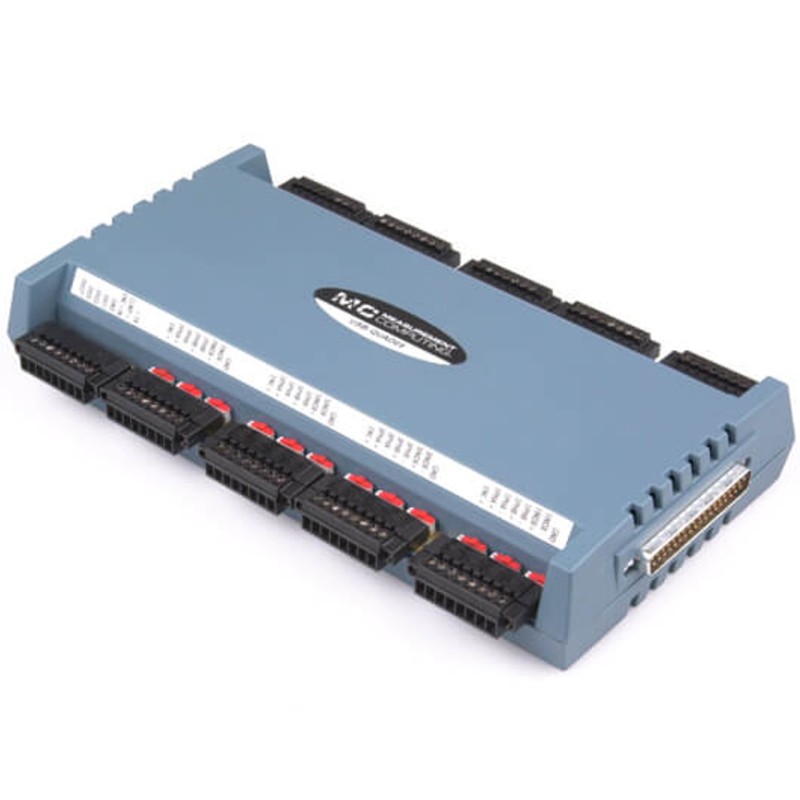

MCC USB-QUAD08 (6069-410-045) – Measurement Module for 8 Quadrature Encoders
ID: 1189987
€808.78
Tax included
€657.54 tax excl.
MCC USB-QUAD08 is a module for precise pulse counting and data reading from 8 quadrature encoders, with support for digital I/O and USB. Digilent 6069-410-045
Free shipping
free shipping in Poland for all orders over 500 PLN
Same day shipping
If your payment will be credited to our account by 11:00
14 days for return
Each consumer can return the purchased goods within 14 days
Description
The MCC USB-QUAD08 is a precision measurement module designed for pulse counting and data acquisition from quadrature encoders. With 8 channels featuring independent 32-bit counting and advanced event recording functions, the device is ideal for industrial applications, automation systems, robotics, and machine testing.
The module uses a USB interface, ensuring easy integration with PCs and fast data transfer. The set includes dedicated DAQami software for data logging, visualization, and analysis. For advanced users, drivers are available for programming in Python, C++, C#, and the LabVIEW environment.
Features
- 8 independent 32-bit counting inputs, compatible with quadrature encoders
- Input frequency up to 10 MHz for accurate measurements of high-speed signals
- Supports TTL signals and differential outputs
- Two programmable 32-bit counters for additional functionality
- USB 2.0 port for fast connection and power supply without additional power sources
- External clock and reset signal input support
Kit Includes
- MCC USB-QUAD08 module
- USB cable
