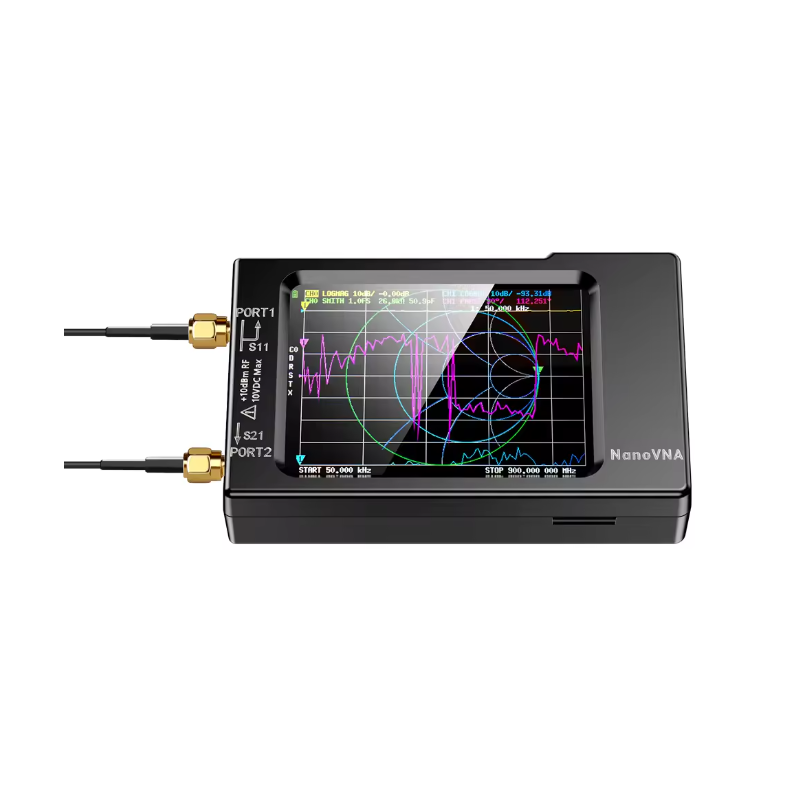

NanoVNA-H - 50kHz-1.5GHz vector network analyzer
ID: 1197008
5902186301955
zł289.00
Tax included
zł234.96 tax excl.
Compact antenna analyzer with a working range from 50 kHz to 1.5 GHz, ideal for HF, VHF and UHF antenna measurements and RF component analysis. Equipped with a 2.8" touchscreen, calibration kit and USB-C interface, it offers simple operation, mobility and the ability to work with a computer or smartphone. NanoVNA-H
Description
NanoVNA H is the latest version of the pocket antenna analyzer, offering a working range from 50 kHz to 1500 MHz, making it perfect for measuring HF, VHF, and UHF antennas. The device features a 2.8-inch TFT touchscreen display and allows for real-time measurement visualization. Thanks to its very compact dimensions, it is ideal for both fieldwork and workshop use. The new version offers an extended frequency range (up to 1.5 GHz), a sleek plastic enclosure, and an additional USB-C cable for compatibility with Android smartphones. The device is easy to operate, and its ability to connect to a computer or smartphone enables analysis, saving, and publishing of measurement graphs. It's an excellent tool for antenna tuning, antenna installation testing, S11 measurements, and analysis of filter and passive component characteristics. The device comes with a calibration kit and preloaded settings, allowing immediate use right out of the box. Thanks to its excellent price-to-performance ratio, NanoVNA H is a great choice for both hobbyists and professionals.
Features
- Frequency range: 50 kHz to 1500 MHz
- Frequency accuracy: < 0.5 ppm
- Measurement range: 70 dB (50 kHz–300 MHz), 50 dB (300–600 MHz), 40 dB (600–900 MHz)
- RF output: -13 dBm (maximum -9 dBm)
- SWR port: < 1.1
- Display: 2.8” color TFT (320x240), touchscreen
- Interface: USB Type-C, CDC (serial) communication mode
- Power supply: USB 5V 120 mA, max charging current 0.8 A
- Built-in battery: 650 mAh
- RF connector: SMA
- Number of calibration points: 101 (fixed)
- Number of scan points: 101 (fixed)
- Settings storage: 5 profiles
- Measurement support: S-parameters (S11, S21), VSWR, phase, delay, Smith chart, and more
- Compatible with PC and Android (NanoVNA-Saver)
- Dimensions: 54 x 85.5 x 11 mm
Kit contains
- NanoVNA H analyzer
- 2 x RF cable SMA male–male RG174, 20 cm
- 2 x SMA female–female adapter
- Calibration adapter SMA – SHORT
- Calibration adapter SMA – OPEN
- Calibration adapter SMA – LOAD
- USB Type-C cable
