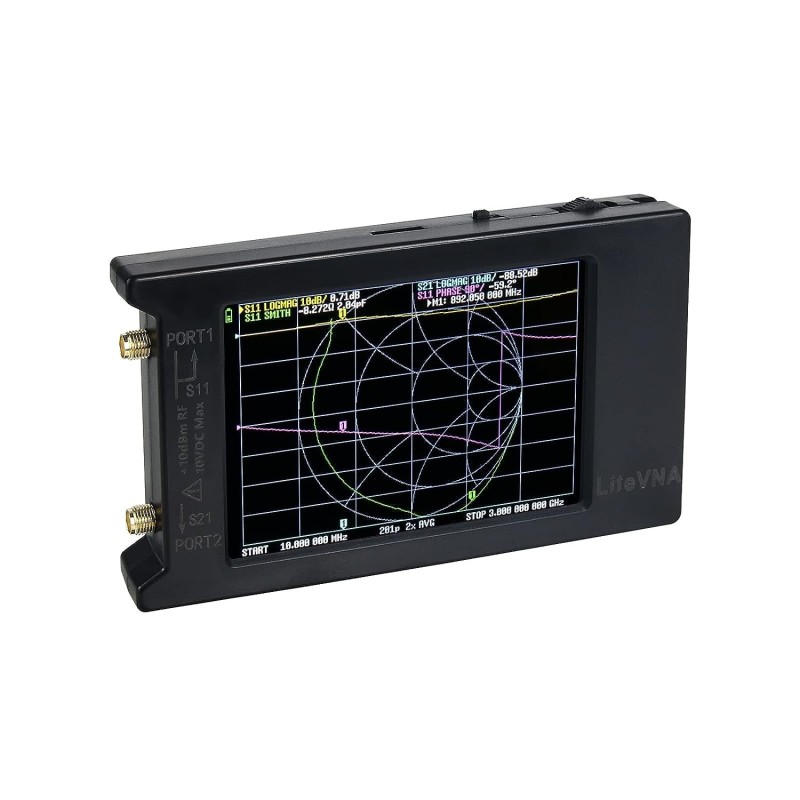

liteVNA 64 - 50kHz-6.3GHz network analyzer
ID: 1197031
5902186301986
zł849.00
Tax included
zł690.24 tax excl.
Compact vector analyzer, enabling measurements in a wide frequency range from 50 kHz to 6.3 GHz, ideal for analyzing antennas and RF systems in the HF, VHF, UHF and WiFi bands. With a 3.95" touch screen, USB-C interface and support for VNA-QT software, it offers convenient operation and professional analysis of results both in the field and in the laboratory. liteVNA 64
Description
LiteVNA-64 is a compact and functional vector network analyzer ideal for measuring antennas in the HF, VHF, UHF bands, as well as 2.4 GHz and 5.8 GHz WiFi. With its wide operating range from 50 kHz to 6.3 GHz, it offers versatile applications for both hobbyists and professionals. The device features a shielded input stage to reduce interference and improve measurement precision. A 3.95” high-resolution color touchscreen (480x320) ensures convenient operation and data analysis. LiteVNA-64 connects to a computer via USB-C and works with VNA-QT software, enabling advanced data processing. Its built-in 2000 mAh Li-Po battery provides several hours of operation without recharging, making it a truly mobile measurement tool. With support for SD card data logging and graphing functions such as the Smith chart, it is an indispensable device for any engineer or radio enthusiast.
Features
- Frequency range: 50 kHz to 6.3 GHz (HF/VHF/UHF/WiFi/LTE)
- Dynamic range: >70 dB (up to 3 GHz), 90 dB (v0.3.1 20avg)
- S11 noise floor: -50 dB (up to 3 GHz), -40 dB (above 3 GHz)
- Frequency stability: 0.5 ppm
- Sampling rate: 550 points/s (2 channels), 800 points/s (1 channel)
- Number of points: 21–1024 (internal memory), 1–65535 (USB)
- Power supply: USB 5V/1A
- Battery: built-in 3.7 V 2000 mAh Li-Po
- USB-C interface, compatible with VNA-QT software
- Operating temperature range: -10°C to +50°C
- RF connectors: SMA female
- Display: 3.95" TFT LCD (480x320)
- Control via touchscreen and rotary encoder
- Measurement logging to SD card supported
- Smith chart support
Kit contains
- LiteVNA-64 vector network analyzer
- USB-C cable
- 2 x SMA-M to SMA-M connection cables (30 cm)
- Calibration dummy load set
- 2 x calibration adapters
- 1 x SMA-F to SMA-F adapter
1197031
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
