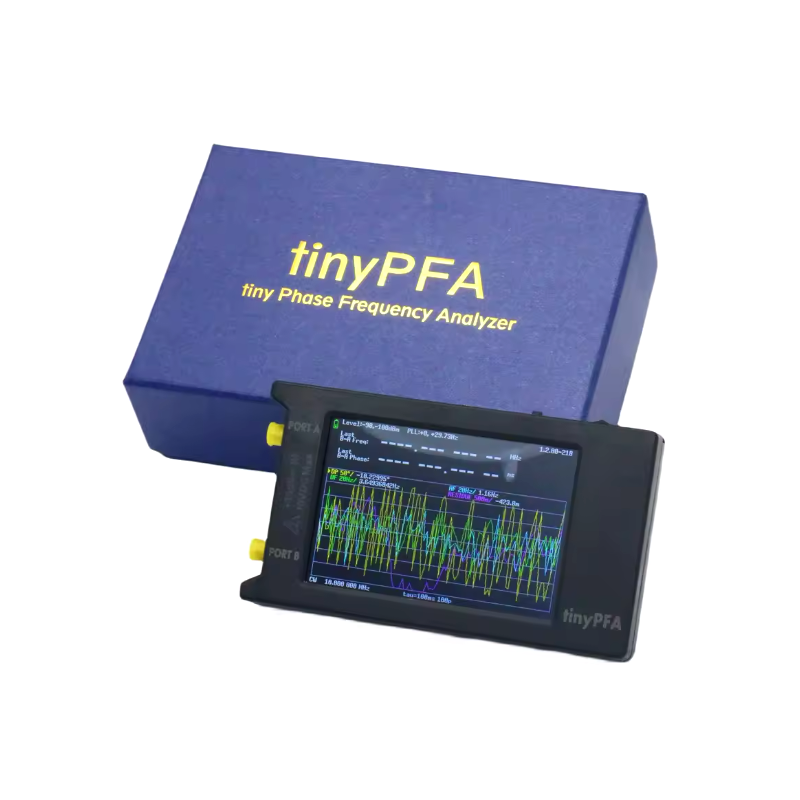

tinyPFA - portable phase frequency analyzer 1-300MHz
ID: 1197036
5902186302013
zł349.00
Tax included
zł283.74 tax excl.
Portable frequency and phase analyzer based on NanoVNA-H4, designed for precise comparison of signals in the range from 1 MHz to 300 MHz, ideal for testing 10 MHz clocks, among others. With a touch screen, data logging and a built-in 2000 mAh battery, it is a mobile tool for engineers and electronics enthusiasts who require high measurement accuracy. tinyPFA
Description
TinyPFA is a portable frequency and phase analyzer designed for engineers and electronics enthusiasts who require precise measurement of frequency and phase differences between two signals. The device is based on NanoVNA-H4 hardware and dedicated software that works exclusively with this model. Equipped with a clear 3.95-inch TFT LCD touchscreen, TinyPFA enables signal measurement in the range of 1 MHz to 300 MHz, making it ideal for applications such as comparing 10 MHz reference clocks. Frequency and phase difference measurements can be displayed numerically, as a time graph, and can be saved to a microSD card or transferred to a computer via USB for further analysis (e.g., in TimeLab software).
The device achieves accuracy better than 1E-12/s (depending on measurement time), providing high precision even for very small deviations. Please note that accurate measurements require an external stable reference source, as the internal reference does not provide sufficient precision. The compact and lightweight design, combined with a built-in 2000 mAh battery, makes TinyPFA a perfect mobile tool ready for use in both field and lab conditions.
Features
- Frequency measurement range: 1 MHz to 300 MHz
- Measurement accuracy: < 1E-12 / s
- Display: 3.95-inch TFT LCD touchscreen (320x240 px)
- Interfaces: USB-C, MicroSD card (< 32 GB)
- Built-in battery: 2000 mAh
- Data logging and PC software support
- Real-time phase and frequency measurement
- High mobility and durable construction
- Dimensions: 75 x 133 x 18 mm
Kit contains
- TinyPFA analyzer
- Antenna cables
- USB cable
- USB adapter
