zł58.24 tax excl.
Gravity: IO Expansion & Motor Driver Shield is an Arduino compatible expansion board that provides digital I / O ports, analog I2C, SPI and UART interfaces, as well as a DC motor driver. DFRobot DFR0502
Free shipping
free shipping in Poland for all orders over 500 PLN
Same day shipping
If your payment will be credited to our account by 11:00
14 days for return
Each consumer can return the purchased goods within 14 days
Description

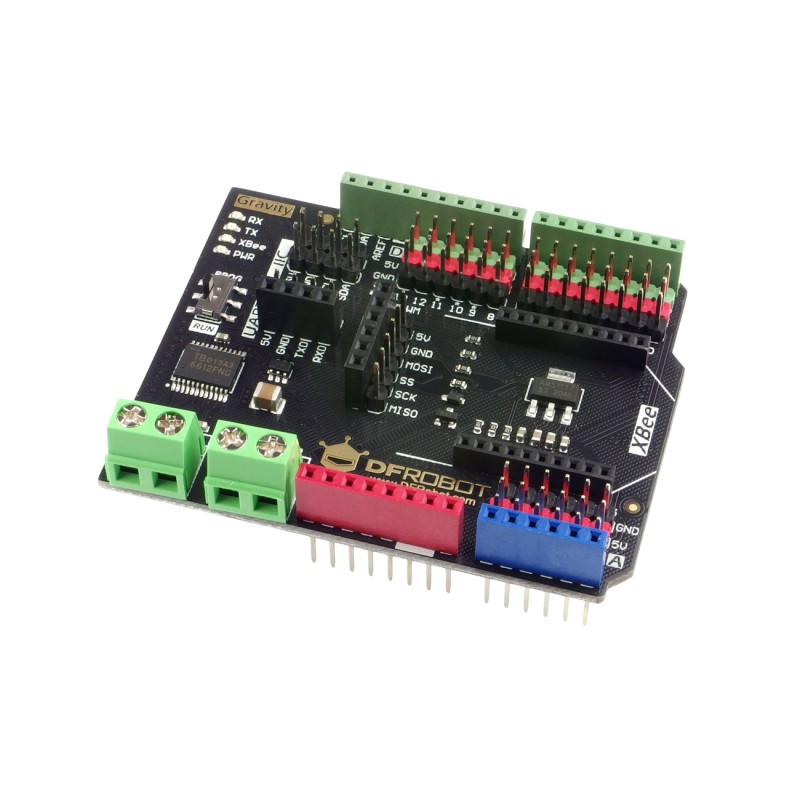

Gravity: IO Expansion & Motor Driver Shield is an expansion board compatible with Arduino UNO R3. It provides 14 digital and 6 analog pins (on Arduino and Gravity connectors), SPI, I2C and UART interfaces. It also has a connector compatible with XBee. The module also has a built-in two-channel DC driver with the designation TB6612FNG. It allows you to control two DC motors with a power consumption of 1.2 A (3.2 at peak).
properties
- Intended for Arduino tiles
- Digital pins: 14
- Analog pins: 6
- I2C interfaces: 2
- SPI interfaces (compatible with Arduino UNO R3): 2
- UART interface: 1
- XBee Slot: 1
- Dual channel DC motor driver (TB6612FNG system)
- Output current: single-channel continuous supply current 1.2 A
- Starting current / peak current: 2 A (continuous pulse) / 3.2 A (at the top)
- Input voltage: 12V (peak value)
- Dimensions: 68.5 × 53.3 mm
- Weight: 36 g
Data sheet
- Output current
- 1,2 A
- Number of channels
- 2
- Supply voltage min
- 4,5 V
- Supply voltages max
- 13,5 V
