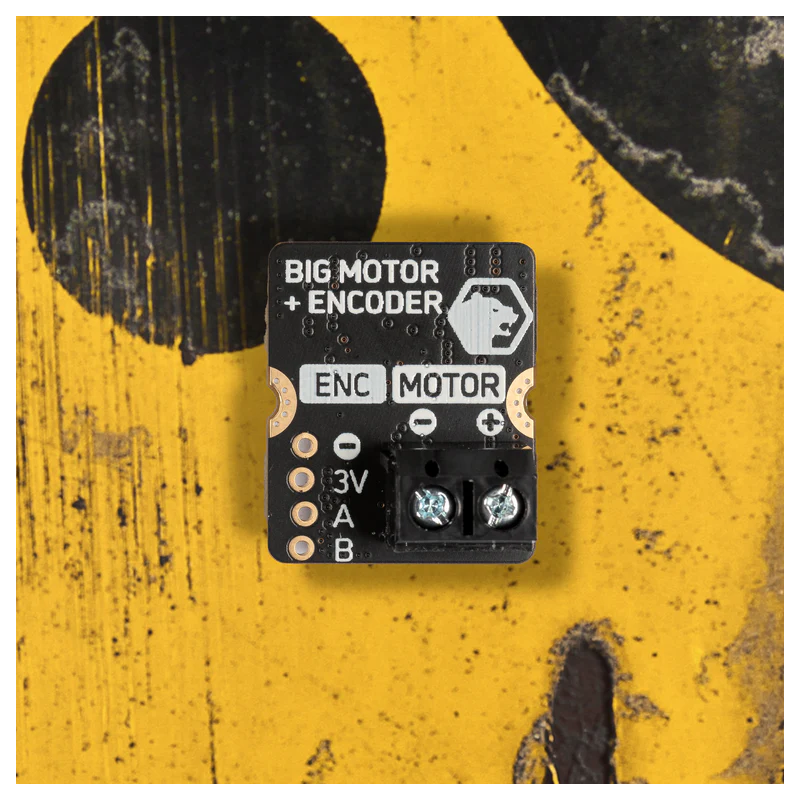

A powerful controller designed to drive a single brushed DC motor with an encoder in the Pimoroni Yukon system. It offers up to 8 A continuous and 12 A peak current at a supply voltage of 5 to 17 V, making it suitable for demanding robotic projects. The module provides precise control thanks to encoder support and built-in current, temperature, and error sensors. Pimoroni PIM691

4 weeks
Awaiting delivery
Kamami is the official distributor of Pimoroni modules and development kits. All products of this brand in our offer are original and come directly from the manufacturer.

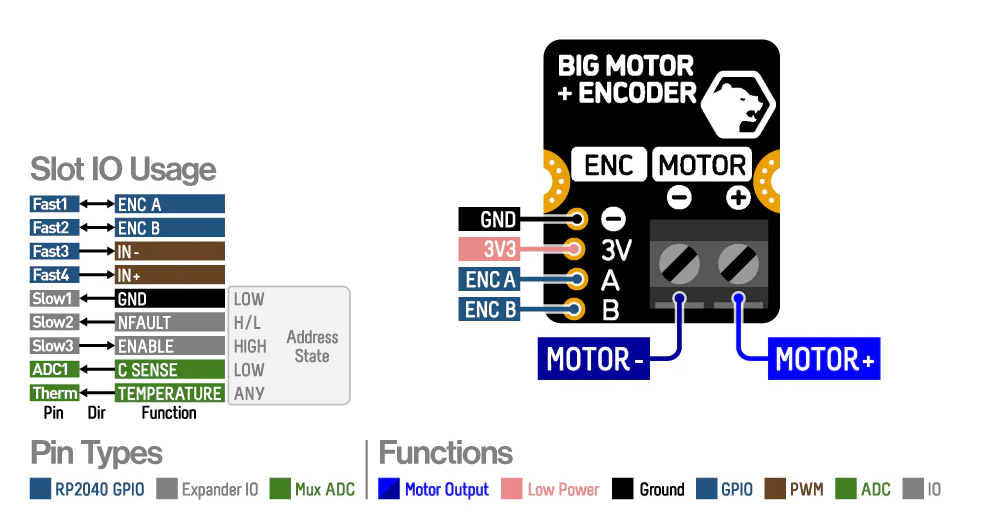

Description

Big Motor Encoder Module is a high-power brushed motor driver module designed specifically for use with the Pimoroni Yukon system. It allows control of a single DC motor with an encoder, delivering up to 8 A continuous current and 12 A peak current, making it ideal for power-hungry projects. By using the DRV8706H intelligent gate driver together with external H-bridge MOSFETs, the module provides high efficiency and reliable operation over a wide supply voltage range from 5 to 17 V. Despite its compact size, it is capable of delivering surprisingly high power.


The module is intended for robotics projects such as remote-controlled vehicles and mobile robots. A dedicated footprint for an encoder connector enables precise feedback of motor position and speed. This connector is intentionally left unpopulated, allowing the user to choose a suitable 2.54 mm pitch connector. The module also includes built-in current, temperature, and fault sensing, enhancing overall system safety. Robust 5 mm pitch screw terminals ensure quick and secure motor connections. Full compatibility with the Yukon ecosystem makes integration with other modules exceptionally easy. It is an excellent choice for students and engineers building advanced, durable mechanical projects.

Features

  • Control of one brushed DC motor with encoder support
  • Gate driver IC: DRV8706H with external H-bridge MOSFETs
  • Input voltage range: 5 to 17 V
  • Continuous current: 8 A
  • Peak current: 12 A
  • 5 mm pitch screw terminals for motor connection
  • Footprint for encoder connector (2.54 mm pitch, unpopulated)
  • Integrated current, temperature, and fault sensors
  • Fully assembled module
  • Full compatibility with Pimoroni Yukon
  • Dimensions: 24 × 20 × 15.3 mm
1202080

Data sheet

Output current
8 A
Number of channels
1
Supply voltage min
5 V
Supply voltages max
17 V
