Soldered Macro Pad - programmable keyboard soldering kit
ID: 1208351
zł62.12
Tax included
zł50.50 tax excl.
DIY soldering kit for building a compact programmable macro keyboard based on the RP2040 microcontroller. Features 5 MX switches, a programmable rotary encoder, USB-C and QMK firmware support. Compatible with Windows, macOS and Linux. Soldered 333347
Description

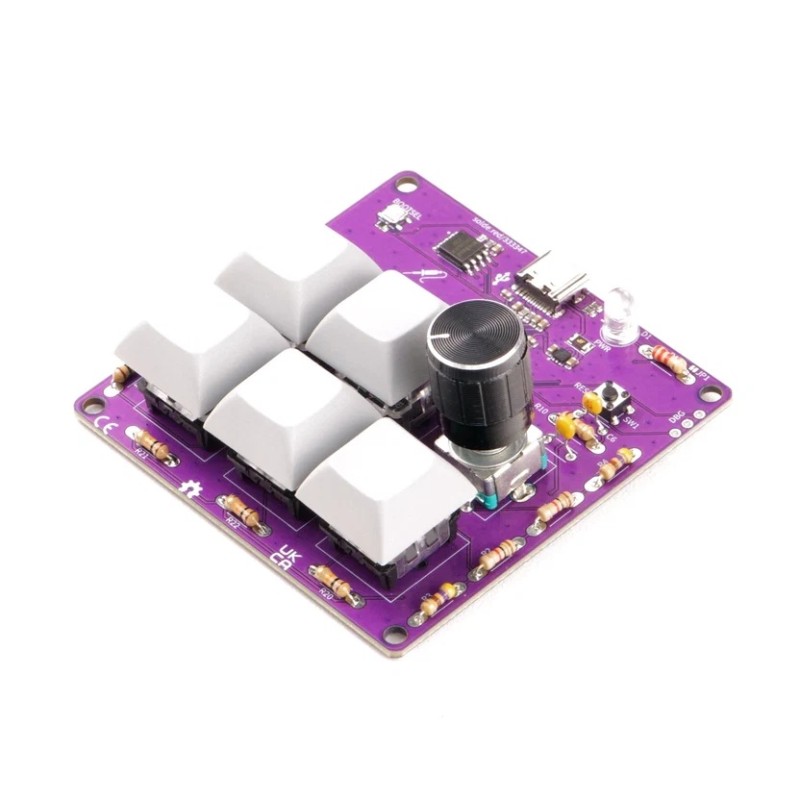

The device Macro Pad Solder Kit by Soldered is a DIY soldering kit for building a compact programmable macro keyboard. The circuit is based on the RP2040 microcontroller with two Arm Cortex-M0+ cores running at up to 133MHz and 264KB of SRAM. Five mechanical MX switches can be assigned to keyboard shortcuts, commands or sequences of actions, making repetitive computer tasks easier to perform.
The device also features a programmable rotary encoder, which can be used for functions such as volume adjustment, scrolling or other custom controls. Macro Pad runs QMK firmware, allowing the keys and encoder to be configured according to the user's needs. The default firmware provides functions including media control, microphone mute and volume adjustment. The device is recognized as a standard keyboard and is compatible with Windows, macOS and Linux.

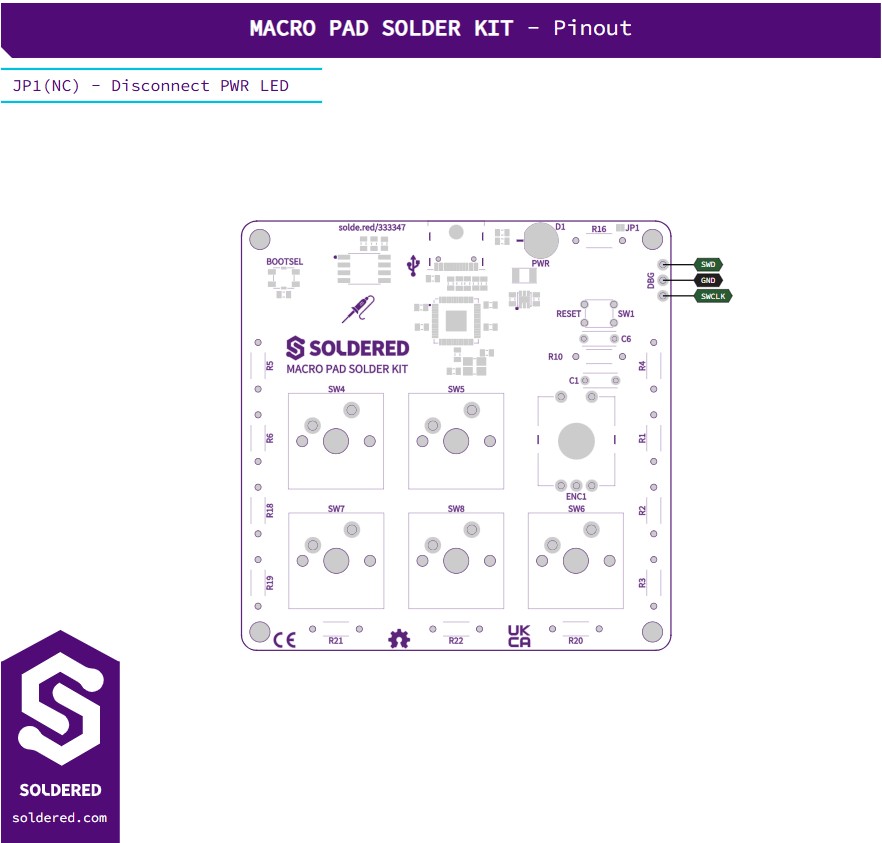

The USB-C connector is used for power, communication with the computer and microcontroller programming. The kit includes five MX switches with keycaps and a rotary encoder with a knob, while compatible mechanical components can be replaced if required. The board measures approximately 70 × 70mm, and the manufacturer rates the assembly difficulty as Level 2. The design is open-source, with an assembly guide, QMK files, schematics and 3D-printable enclosure files available.
Features
- Type: DIY soldering kit
- Function: programmable macro keyboard
- Microcontroller: RP2040
- Processor: 2 × Arm Cortex-M0+
- Clock frequency: up to 133MHz
- SRAM: 264KB
- Number of keys: 5
- Switch type: MX
- Programmable rotary encoder
- Firmware: QMK
- Programmable key and encoder functions
- Keyboard shortcut and macro support
- Media control functions
- Volume adjustment and other encoder functions
- Power and communication connector: USB-C
- Compatibility: Windows, macOS, Linux
- Board dimensions: approximately 70 × 70mm
- Difficulty level: Level 2
- Open-source design
- Assembly guide available
- 3D-printable enclosure files available
- Manufacturer: Soldered Electronics
- Product code: 333347
Kit includes
- Macro Pad PCB with pre-soldered RP2040 microcontroller, USB-C connector and SMD components
- 5 × MX switch
- 5 × keycap
- Rotary encoder with knob
- LED
- 8 × 10kΩ resistor
- 2 × 470Ω resistor
- 2 × 1kΩ resistor
- 1 × 2.2kΩ resistor
- 0.1µF capacitor
- Pushbutton
- Male pin header
1208351
