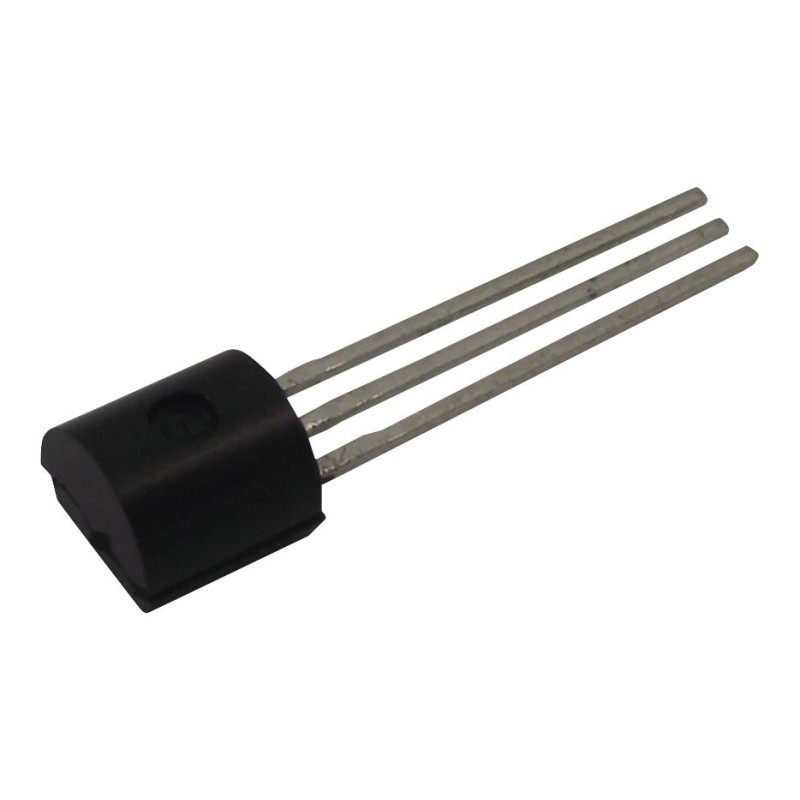

Adjustable voltage regulator TL431AILP
search
  • Adjustable voltage regulator TL431AILP
ID: 1180852
zł2.90
Tax included

zł2.36 tax excl.

The TL431AILP is a precision, adjustable shunt voltage reference regulator, ideal for use in switching power supplies, voltage regulation circuits, and as a replacement for Zener diodes in applications requiring a stable reference voltage. Thanks to its wide output voltage range and high accuracy, this component is used in various electronic projects, providing reliability and precise performance.

24h
Available
Available quantity: 20

Description

Three-terminal adjustable shunt voltage reference regulator, designed for precise voltage regulation in the range of 2.495 V to 36 V. Thanks to its high temperature stability and low dynamic impedance, the component is used in switching power supplies, voltage regulation circuits, DC/DC converters, and as a replacement for Zener diodes in applications requiring precise reference voltage. The “A” version features a reference voltage tolerance of ±1% at 25°C, ensuring high accuracy in industrial applications.

Specifications

  • Regulator type: shunt (parallel stabilizer)
  • Reference voltage: 2.495 V (typical)
  • Output voltage range: 2.495 V – 36 V (adjustable via external resistor divider)
  • Reference voltage tolerance: ±1% at 25°C
  • Cathode current range: 1 mA – 100 mA
  • Typical dynamic impedance: 0.22 Ω
  • REF input current: typically 2 µA
  • Operating temperature: –40°C to +85°C
  • Package: TO-92 (through-hole)
