Magnetic Contact Switch Sensor - magnetic sensor (reed switch)
ID: 586837
zł19.56
Tax included
zł15.90 tax excl.
Magnetic switch (reed switch) enclosed in a plastic housing. It has a compact structure and low weight. DFRobot SEN0481
Free shipping
free shipping in Poland for all orders over 500 PLN
Same day shipping
If your payment will be credited to our account by 11:00
14 days for return
Each consumer can return the purchased goods within 14 days
Description
Magnetic switch (reed switch) consisting of two elements (made of iron and nickel) enclosed in a plastic housing. The tiles overlap and there is a slight gap between them. With an appropriate external magnetic field, they contact and conduct, thus sensing the change in the position of the object.
The magnetic switch has a compact design which allows it to be installed in a small space and is great for use in a miniaturized device. The switching elements of the reed switch are hermetically sealed in an inert gas atmosphere, so they are never exposed to the external environment and have a long service life. The switch can be widely used in devices for limiting the position of doors, windows, proximity switches, measuring instruments, automation, security, transportation and smart home equipment. The kit includes the necessary elements to connect the sensor with popular evaluation boards. Full documentation is available on the product Wiki page.
Features
- Operating voltage: 0 to 100V
- Magnetic sensor (reed switch)
- Size: 6 x 20 x 350 mm
- Black colour
Kit contains
- Magnetic switch

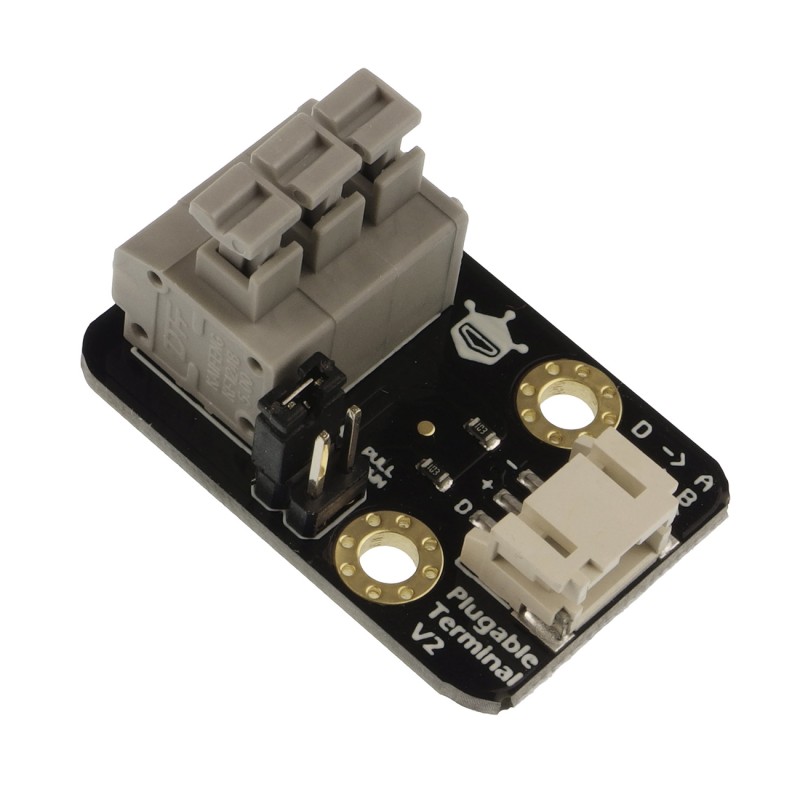

- Adapter
- Line
586837
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
