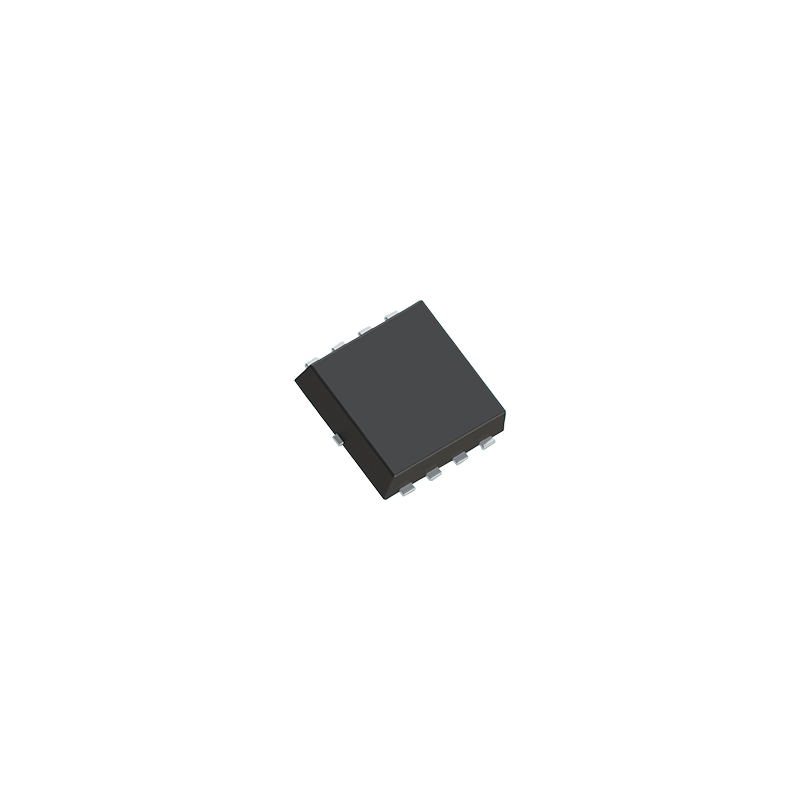

ROHM Semiconductor BD1HC500HFN-CTR – High-Side power switch IC, 1 channel, 4–18 V, 800 mA
ID: 587898
zł7.39
Tax included
zł6.01 tax excl.
ROHM BD1HC500HFN-CTR is a compact high-side switch with output current up to 800 mA, overcurrent and thermal protection, and AEC-Q100 qualification. The device is designed for reliable power distribution in automotive and industrial applications.
Description
The BD1HC500HFN-CTR from ROHM Semiconductor is an integrated high-side switch designed for power distribution in automotive and industrial applications. The device supports a supply voltage range from 4 V to 18 V and provides a maximum output current of 800 mA per channel. Built-in protection mechanisms include current limiting to 1.45 A and thermal shutdown protection (TSD off-latch). A low on-resistance (650 mΩ) minimizes power losses, while fast switching times (up to 25 µs) enable operation in demanding systems. The HSON-8 package and surface-mount design (SMD/SMT) ensure compact PCB integration. The device is AEC-Q100 qualified, confirming compliance with automotive industry standards.
Properties
- Type: High-Side Switch
- Number of channels: 1 (2 outputs)
- Output current: 800 mA
- Current limit: 1.45 A
- On-resistance: max. 650 mΩ
- Turn-on time: ≤ 25 µs
- Turn-off time: ≤ 25 µs
- Supply voltage: 4...18 V
- Power dissipation: 1.75 W
- Operating temperature: -40...+150 °C
- Mounting style: SMD/SMT
- Package: HSON-8
- Qualification: AEC-Q100
