- Out-of-Stock

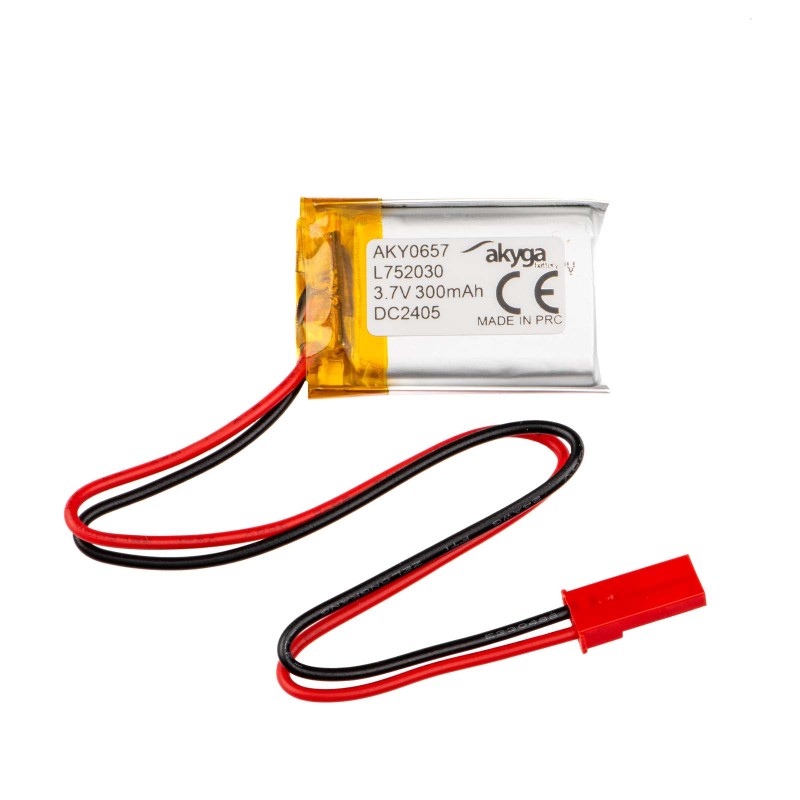

Li-Po Battery Akyga LP752030 3.7V 300mAh PCM JST 2.54
ID: 1202732
5906574243339
Lithium-polymer Li-Po battery with a nominal voltage of 3.7V and a capacity of 300mAh, equipped with a PCM protection circuit and a lead with a JST 2.54 2-pin connector, 150mm long. Akyga AKY0657
Description
Akyga AKY0657 is intended for powering electronic devices operating at a nominal voltage of 3.7V. The LP752030 cell format provides a capacity of 300mAh and a flat, compact construction, enabling installation in enclosures with limited internal space, such as portable electronics, control modules, and embedded projects.
The integrated PCM protection circuit supervises charging and discharging processes, reducing the risk of damage caused by overcharging, deep discharge, short circuit, and overcurrent. The battery is connected via a 150mm lead terminated with a 2-pin JST 2.54 connector, allowing direct connection to development boards, power supply modules, and charging controllers. The AKY0657 model is used in consumer electronics, IoT systems, robotics, and electronic projects requiring small Li-Po power sources.
Warning!
Before installation, read and follow the safety guidelines for lithium-polymer batteries. Improper use may result in damage to the battery!Features
- Battery type: lithium-polymer Li-Po
- Cell format: LP752030
- Nominal voltage: 3.7V
- Nominal capacity: 300mAh
- Configuration: 1S
- Number of cells: 1
- Protection circuit: PCM
- Rechargeable: yes
- Connector: JST 2.54 2-pin
- Cable length: 150mm
- Lead type: wires
- Application: powering electronic devices operating at 3.7V
Kit includes
- 1x Lithium-polymer Li-Po battery with cable and JST 2.54 2-pin connector
1202732
Data sheet
- Battery type
- Li-Po
Other - Output voltage
- 3.7V
- Battery capacity
- 300 mAh
- Battery configuration
- 1S
- Number of cells
- 1
- Output/Connector
- JST 2,54 mm
- Length
- 30 mm
- Width
- 20mm
- Thickness
- 7,5 mm
- Weight
- 8,32 g
Manufacturer AKYGA EUROPE SPÓŁKA Z OGRANICZONĄ ODPOWIEDZIALNOŚCIĄ Wrocławska 1C 52-200 Suchy Dwór Poland contact@akyga.com
Responsible person AKYGA EUROPE SPÓŁKA Z OGRANICZONĄ ODPOWIEDZIALNOŚCIĄ Wrocławska 1C 52-200 Suchy Dwór Poland contact@akyga.com
