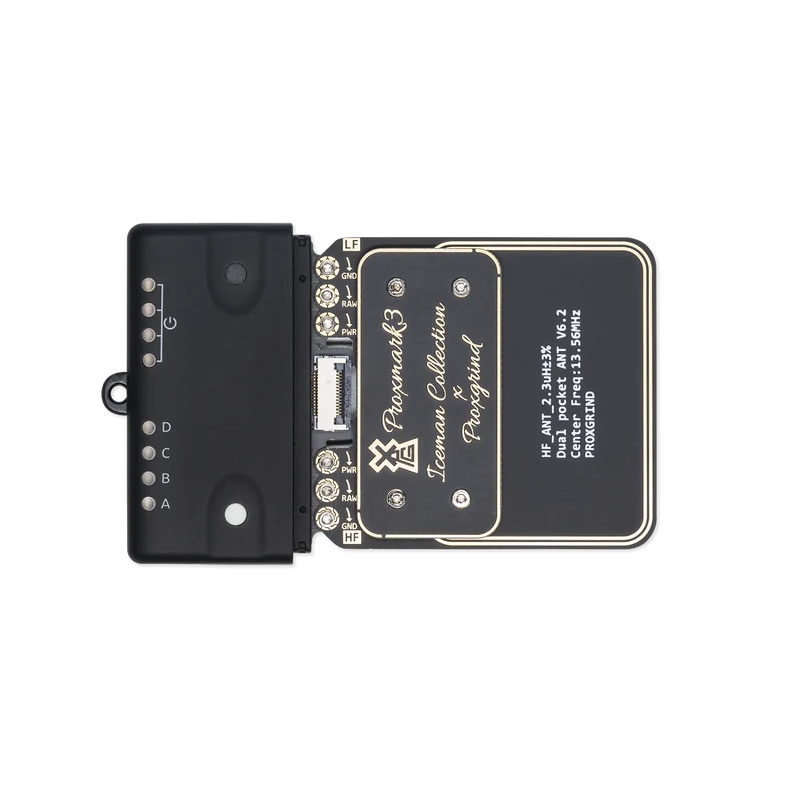

Compact RFID tool designed for the analysis, diagnostics, and security testing of contactless systems operating in the LF and HF bands. Proxmark3 RDV4 supports 125 kHz and 13.56 MHz, uses a SAM7S512 processor, and features integrated, pre-tuned antennas and a SIM/Smart Card reader. Its modular design supports additional antennas and BLE/WiFi expansion modules. Proxmark3 RDV4.01

24h
Available
Available quantity: 1

Description

Proxmark3 RDV4.01 is designed for working with LF 125 kHz and HF 13.56 MHz RFID systems during authorized security testing, contactless system analysis, and research. The hardware uses a SAM7S512 processor and 2 Mbit / 256 kB of external SPI Flash memory. Integrated, pre-tuned antennas allow the device to operate without external antennas in its basic configuration, while the 54 x 87 x 10 mm ABS enclosure facilitates mobile and field use.

The device features a SIM/Smart Card reader, four power LEDs, four mode LEDs, and a single button. Its modular design supports interchangeable medium- and long-range antennas as well as BLE/WiFi expansion modules. Proxmark3 RDV4 can work with software developed for the Proxmark3 platform and can be used for RFID communication analysis, tag diagnostics, and testing contactless identification systems in laboratory and penetration-testing environments.

Features

  • Model: Proxmark3 RDV4.01
  • Type: RFID analysis and security testing tool
  • Processor: SAM7S512
  • External memory: 2 Mbit / 256 kB SPI Flash
  • LF frequency: 125 kHz
  • HF frequency: 13.56 MHz
  • Antennas: internal, pre-tuned
  • Additional antenna support: yes, medium- and long-range antennas
  • SIM/Smart Card reader: yes
  • Power LEDs: 4
  • Mode LEDs: 4
  • Button: 1
  • BLE/WiFi expansion support: yes
  • Enclosure material: ABS
  • Dimensions: 54 x 87 x 10 mm
  • Declared LF 125 kHz range: up to 70 mm at 65 V
  • Declared HF 13.56 MHz range: up to 88 mm at 44 V

Kit Includes

  • Proxmark3 RDV4.01 x 1
  • Internal pre-tuned LF 125 kHz / 134 kHz antenna x 1
  • Internal pre-tuned HF 13.56 MHz antenna x 1
  • SIM / SAM reader module x 1
  • microUSB cable x 1
  • Screwdriver for external antenna installation x 1
  • Magic 1K test card with changeable UID x 1
  • T5577 test card x 1
