- New
Autonomous robotics platform (buggy) for Raspberry Pi Pico - Kitronik 5335
ID: 1203572
6609025156392
zł198.99
Tax included
zł161.78 tax excl.
Educational buggy-type robotics platform designed for learning robotics and programming using Raspberry Pi Pico, requiring no soldering and enabling quick setup of an autonomous robot. Kitronik 5335
Description

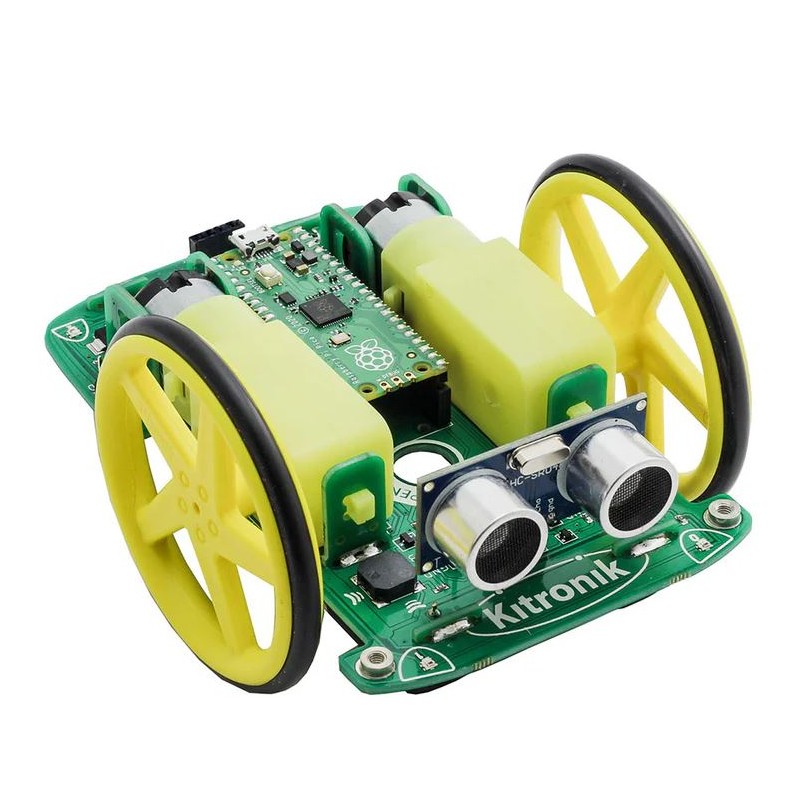

The Kitronik Autonomous Robotics Platform for Raspberry Pi Pico is intended for practical learning of basic robotics, programming, and concepts related to motion and sensors. The platform enables the construction of an autonomous mobile buggy robot controlled by a Raspberry Pi Pico, which is inserted into a dedicated onboard connector.
The kit has been designed to support gradual skill development. The platform features connectors for an ultrasonic sensor and a line following sensor, as well as additional connectors for servo motors and a second ultrasonic sensor, allowing more advanced projects to be implemented. The included step-by-step guide walks through assembly, preparation of the programming environment, and writing code in MicroPython using the Thonny editor.
The kit requires no soldering and is limited to minimal mechanical assembly, including fitting the wheels and connecting the sensor modules. The platform includes mounting points with M3 and M4 threads, enabling expansion with additional mechanical and functional components.
Note!
Required for operation:
- Raspberry Pi Pico with soldered pin headers
- 4 x AA alkaline batteries
- Micro USB cable
Features
- Intended for: Raspberry Pi Pico
- Product type: educational buggy-type robotics platform
- Programming: MicroPython
- Sensors included: ultrasonic sensor, line following sensor
- Additional connectors: servo motors, second ultrasonic sensor
- Power supply: 4.8 – 6 V from AA batteries
- Number of batteries: 4 x AA
- Assembly: no soldering, minimal mechanical assembly
- Mounting points: 3 x M3, 1 x M4
- PCB length: 126 mm
- PCB width: 80 mm
- Wheel diameter with tyre: 67.5 mm
Kit includes
- Buggy robotics platform PCB
- 2 wheels with tyres
- Line following sensor
- Ultrasonic sensor
1203572
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
