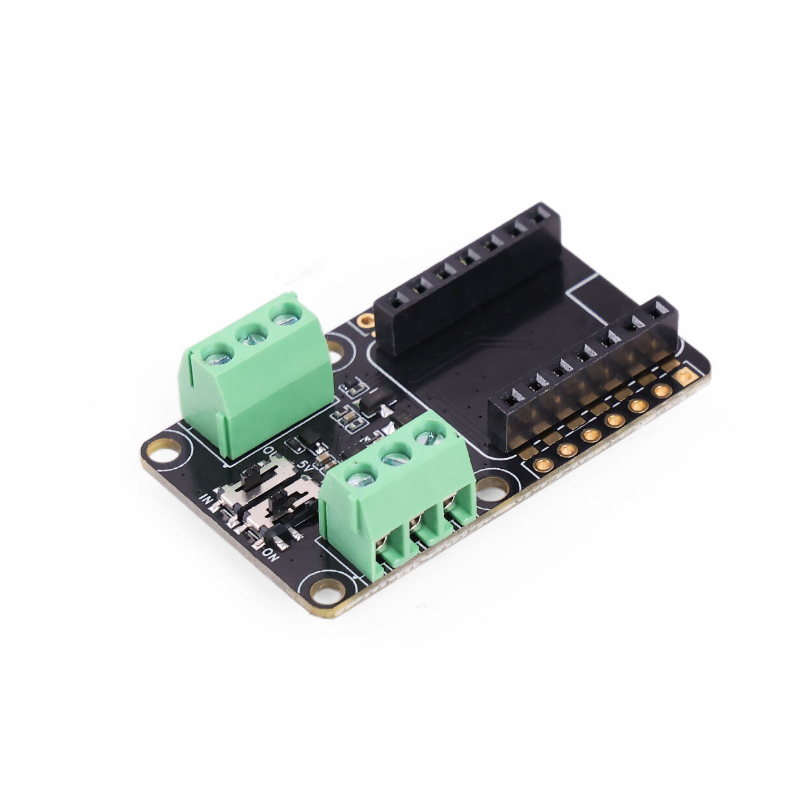

RS-485 Breakout Board for XIAO - module with UART-RS485 converter for XIAO
ID: 1195717
5902186301313
zł27.86
Tax included
zł22.65 tax excl.
The board, equipped with the TP8485E transceiver, converts UART signals to RS-485, enabling one-way half-duplex communication at a distance of up to 1200 meters. With its compact design, support for 5V or 12V voltage and compatibility with Seeed Studio XIAO boards, it is ideal for applications in industrial automation, monitoring and data acquisition systems. Seeed Studio 113991354
Description
The Seeed Studio RS-485 Breakout Board is a versatile extension board designed for all Seeed Studio XIAO development boards. Equipped with the TP8485E transceiver, it enables efficient conversion of UART streams to RS-485 signals. Supporting half-duplex mode, the board facilitates unidirectional communication over distances up to 1200 meters, making it ideal for long-distance data transmission in challenging environments. With a compact design and power support from a single 5V or 12V source, the board is perfectly suited for projects requiring reliable, long-range data communication.
RS-485 is a reliable serial communication standard widely used in industrial and communication systems due to its interference resistance and flexibility. The Seeed Studio RS-485 Breakout Board fully leverages the capabilities of Seeed Studio XIAO boards, bringing RS-485 functionality to projects such as industrial automation, remote monitoring, and data acquisition systems.
Features
- Fully compatible with Seeed Studio XIAO and Adafruit QT Py boards
- Communication range: up to 1200 meters
- Wide voltage range support: 5V or 12V DC
- Two 3-pin connectors for signal and power wires
- Compact size matching two XIAO boards, ideal for space-constrained projects
- RS-485 chip: TP8485E, supporting half-duplex mode
- Data transmission rate: up to 250k bps
- Dimensions: 42 x 25 x 14 mm
1195717
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
