A 7-in-1 weather station designed to monitor temperature, humidity, pressure, solar radiation, sunshine duration, precipitation intensity, and wind speed and direction in harsh outdoor conditions. A rugged, industrial-grade design with an IP66 rating and a thermostatically controlled heating system ensure reliable and accurate measurements even in extreme temperatures. Ultrasonic wind sensors with no moving parts and radiation shields enhance durability and measurement precision. The device offers flexible connectivity to monitoring and automation systems via RS485, SDI-12, ASCII, and M12 interfaces. Seeed Studio 101991141

4 weeks
On request
Kamami is the official distributor of Seeed Studio modules and development kits. All products of this brand in our offer are original and come directly from the manufacturer.

Description

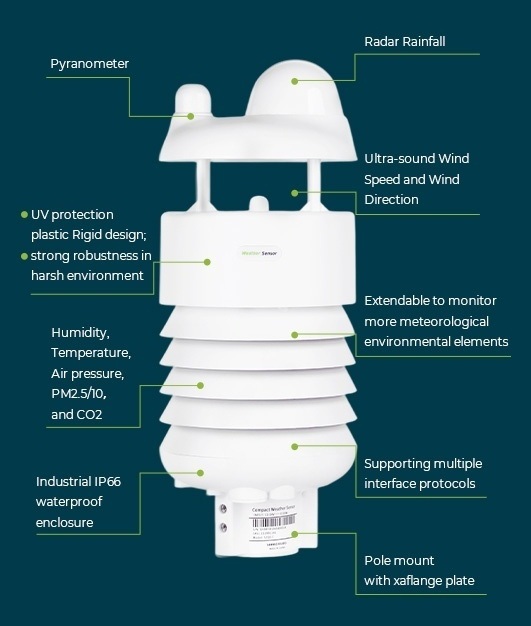

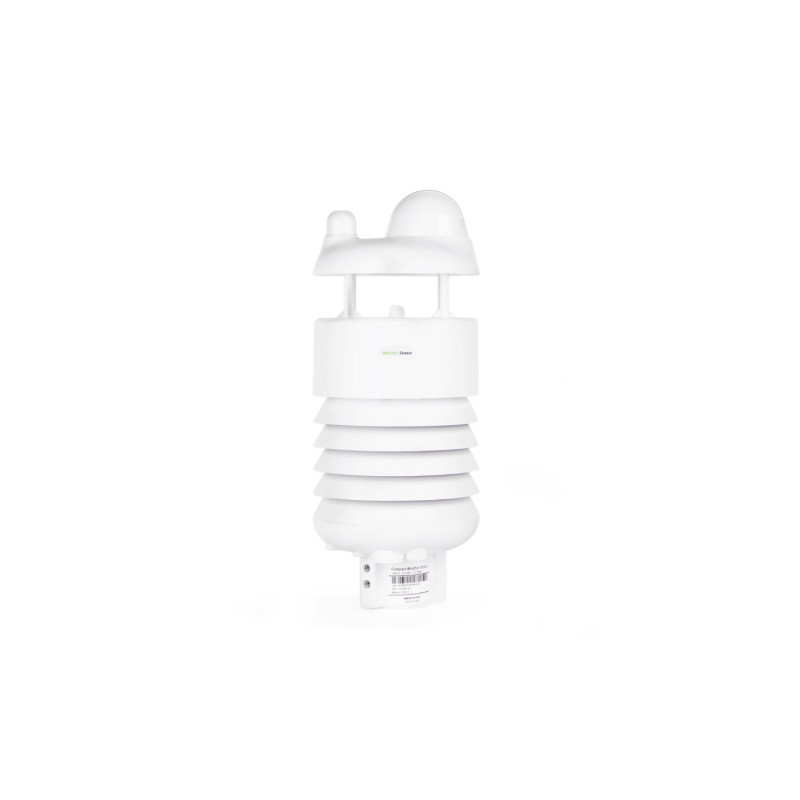

SenseCAP S700-C is a compact 7-in-1 weather station designed for monitoring key environmental parameters in harsh outdoor conditions, such as agriculture, smart cities, and industrial environments. The device measures air temperature, relative humidity, atmospheric pressure, global solar radiation, sunshine duration, precipitation intensity (radar), and wind speed and direction. The S700-C features a robust industrial design with an operating temperature range from -40°C to +85°C and a high protection rating of IP66, ensuring reliability in extreme weather conditions.


The station includes a thermostatically controlled heating system, maintaining proper operation and measurement accuracy even at very low temperatures. Built-in radiation shields minimize the impact of external factors on measurements, and ultrasonic wind sensors with no moving parts increase durability and precision. The device offers universal output interfaces RS485 (Modbus-RTU) and SDI-12, allowing integration with monitoring systems, PLCs, and host computers. The mounting cable is 3 meters long, facilitating installation on poles or other structures. The S700-C provides precise and reliable measurements of all meteorological parameters under any environmental conditions.

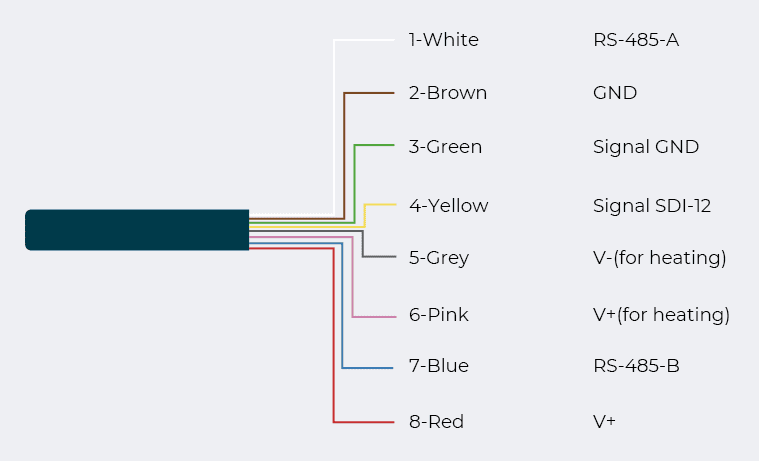

The S700-C station uses M12 connectors with an 8-wire specification. Each of the eight differently colored wires is used for both powering the device and data transmission. The lower wired output is 3 meters long and includes six wires colored white, brown, green, yellow, gray, pink, blue, and red. Devices from the SenseCAP ONE series enable connection to various data acquisition systems, PLC controllers, and host computers via RS485, ASCII, and SDI-12 protocols.


Features

  • Measured parameters: air temperature, relative humidity, atmospheric pressure, global solar radiation, sunshine duration, precipitation intensity (radar), wind speed and direction
  • Atmospheric pressure range: 300–1250 hPa
  • Wind speed range: standard 0–60 m/s, extended 0–75 m/s, withstands up to 80 m/s
  • Wind speed accuracy: ±0.3 m/s (≤10 m/s), ±3% (10–50 m/s), ±5% (>50 m/s), resolution 0.1 m/s
  • Wind direction accuracy: ±3°, resolution 0.1°
  • Global solar radiation range: 0–2000 W/m², accuracy ±3%, resolution 1 W/m²
  • Sunshine duration range: 0–6553.5 h, accuracy ±3%, resolution 0.1 h
  • Precipitation intensity range: 0–300 mm/h, accuracy ±10%, resolution 0.01 mm/h
  • Construction: industrial, IP66, radiation shields, ultrasonic wind sensors
  • Thermostatically controlled heating system
  • Communication interfaces: M12 8-pin, RS485 (Modbus-RTU), SDI-12, ASCII
  • Power supply: 12–24 V DC (24 V for heating)
  • Power consumption: 0.6 W (heating 21 W)
  • Mounting cable length: 3 m
  • Operating temperature range: -40°C to +85°C
  • Operating humidity: 0–100% RH (non-condensing)
  • Dimensions: 140 × 140 × 350 mm
  • Weight: 1607 g

Kit contains

  • SenseCAP S700-C 7-in-1 Compact Weather Station
  • M12 8-pin communication cable
  • USB Type-C cable
  • 6 × mounting screws
  • Flat washer
