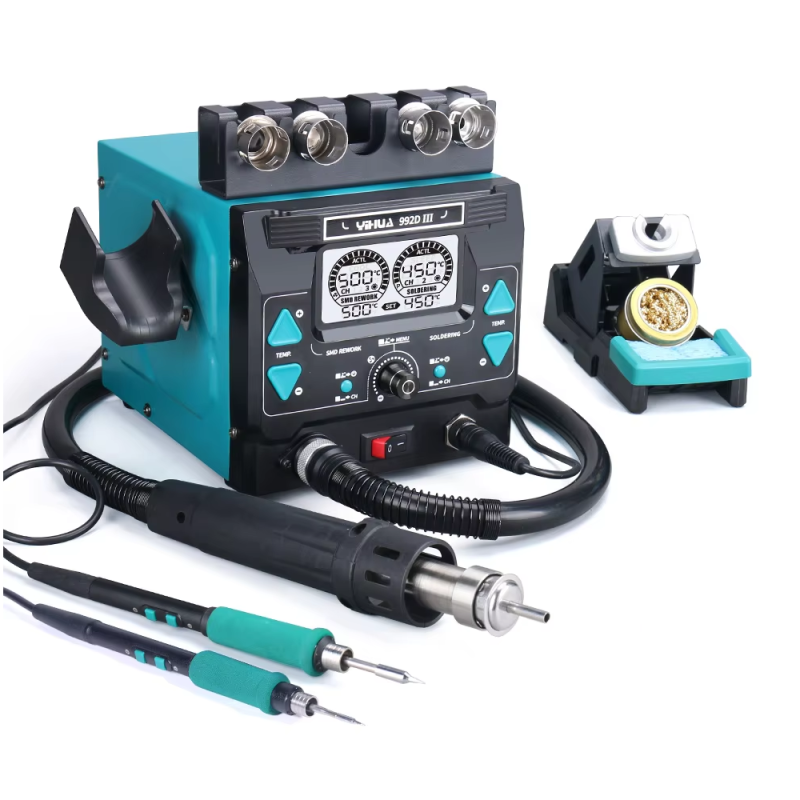

Yihua 992D-III soldering station combines hot-air and soldering iron functions, offering a temperature range of 90–450°C for the iron and 100–500°C for hot-air. Support for C245 and C210 tip series enables work with various components, from through-hole to SMD and BGA. A clear LCD display and intuitive parameter control support convenient operation, while features such as memory presets and sleep mode improve efficiency in service and assembly applications. Yihua 992D-III

24h
Available
Available quantity: 2

Description

2-in-1 soldering station equipped with a hot-air module and two soldering irons (716D and 616D) supporting C245 and C210 tip series, intended for electronic service and assembly work. The hot-air system allows temperature adjustment in the range of 100–500°C and airflow control, enabling work with SMD components. The heating and cooling mode switching function improves control over soldering and desoldering processes.

The soldering irons operate within a 90–450°C range and support various tip shapes for precise work. C245 and C210 tips provide fast heating and stable temperature, while hot-swap capability improves workflow without waiting for cooling. Memory for three temperature presets, sleep mode, and stand-by function support efficiency and reduce energy consumption. The LCD display shows real-time operating parameters, while a buzzer signal indicates changes and system status.

The station supports applications such as electronic device repair, component assembly, and prototyping. The integrated airflow system and precise parameter control enable work with components such as SOIC, QFP, PLCC, and BGA.

Features

  • Device type: 2-in-1 soldering station (hot-air + soldering iron)
  • Temperature range (iron): 90–450°C
  • Temperature range (hot-air): 100–500°C
  • Airflow: ≤55 L/min
  • Power: 1220 W (C245), 1140 W (C210)
  • Display: LCD
  • Operating modes: presets memory, sleep, stand-by
  • Supported tips: C245, C210
  • Air system: compressor
  • Ambient operating temperature: 0–40°C
  • Dimensions: 200 × 164 × 156 mm

Kit includes

  • 1 x Yihua 992D-III soldering station
  • 2 x soldering iron (716D, 616D)
  • 1 x hot-air handle
  • 8 x soldering tips (C245: SI, I, 3.2K, 3.2D; C210: SI, I, I, K)
  • 5 x hot-air nozzles
  • 1 x soldering iron stand with sponge and cleaner
  • 1 x grounding wire
  • 1 x power cable
1202459

Data sheet

Station type
2in1 (tip soldering iron + hotair)
Tip soldering iron temperature
90 - 450°C
HotAir temperature
100 - 500 °C
Power
1220 W
