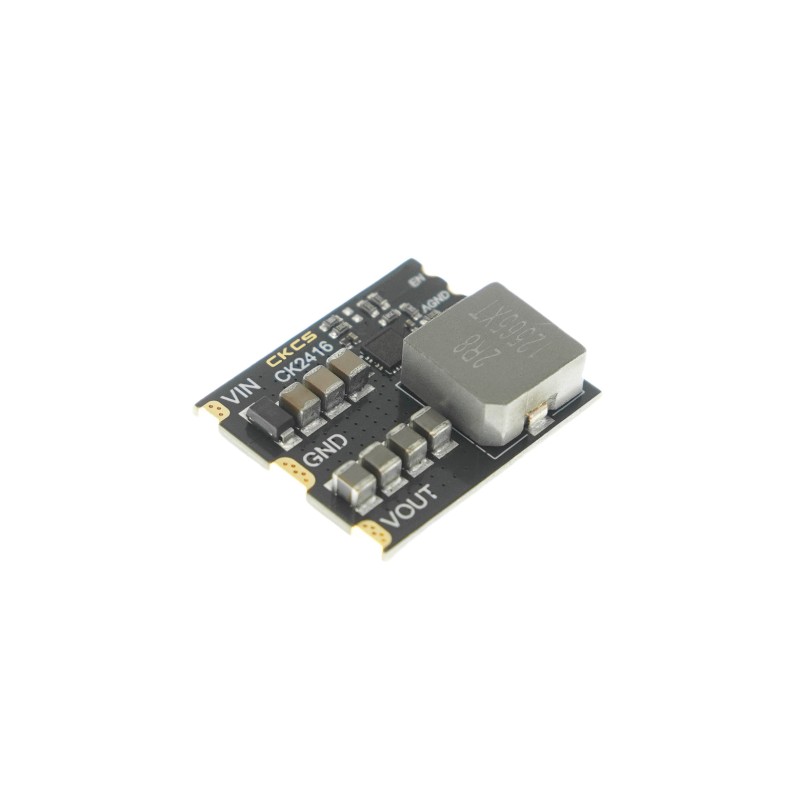

Top view
search
  • Top view
  • Bottom view
ID: 1196979
5902186301054
zł55.98
Tax included

zł45.51 tax excl.

DC-DC step-down converter module 5V 16A used to convert energy from 6-24V input voltage to stable 5V, providing up to 16A current. Thanks to high conversion efficiency (over 90%) and low ripple (<20mV), it is ideal for powering sensitive devices in applications such as robotics, drones or LED lighting systems. Additionally, built-in overheating and short-circuit protection mechanisms ensure reliable operation even in difficult conditions. DFRobot DFR1202

24h
Available
Available quantity: 3
Kamami is the official distributor of DFRobot modules and development kits. All boards of this brand in our offer are original and come directly from the manufacturer.

Description

The DC-DC step-down converter module 5V 16A is a reliable solution for efficient electrical energy conversion. It supports a wide input voltage range from 6V to 24V and provides a stable output voltage of 5V, capable of delivering up to 16A of current. With high conversion efficiency (over 90% at 1-16A load and 12V input voltage), the module is ideal for applications requiring stable power supply, such as robotics, drones, high-power LED lighting systems, and automotive electronics.


Low ripple (<20mV) makes it suitable for powering sensitive electronic devices. The module is equipped with advanced protection mechanisms, such as overheat protection up to 125°C and short circuit protection on the output, ensuring reliable operation in demanding conditions. Its design, which promotes better heat dissipation, ensures stable performance even under continuous high current load.

Features

  • Input voltage range: 6V to 24V
  • Output voltage: 5V ±1%
  • Maximum output current: 16A
  • Output ripple: below 20mV (at 1-16A load)
  • Conversion efficiency: over 90% (at 12V input voltage and 1-16A load)
  • Static current: below 2mA (when the EN pin is not connected), below 3µA (when the EN pin is connected to ground)
  • Operating temperature: -25°C to +70°C
  • Output short circuit protection
  • Overheat protection: 125°C
  • Dimensions: 30 x 26 x 8 mm
1196979

Data sheet

Output voltage
5th
Output current
16 A
Converter type
Step-down
Supply voltage min
6 V
Supply voltages max
24 V
