ID: 1196978
5902186301047
zł68.42
Tax included

zł55.63 tax excl.

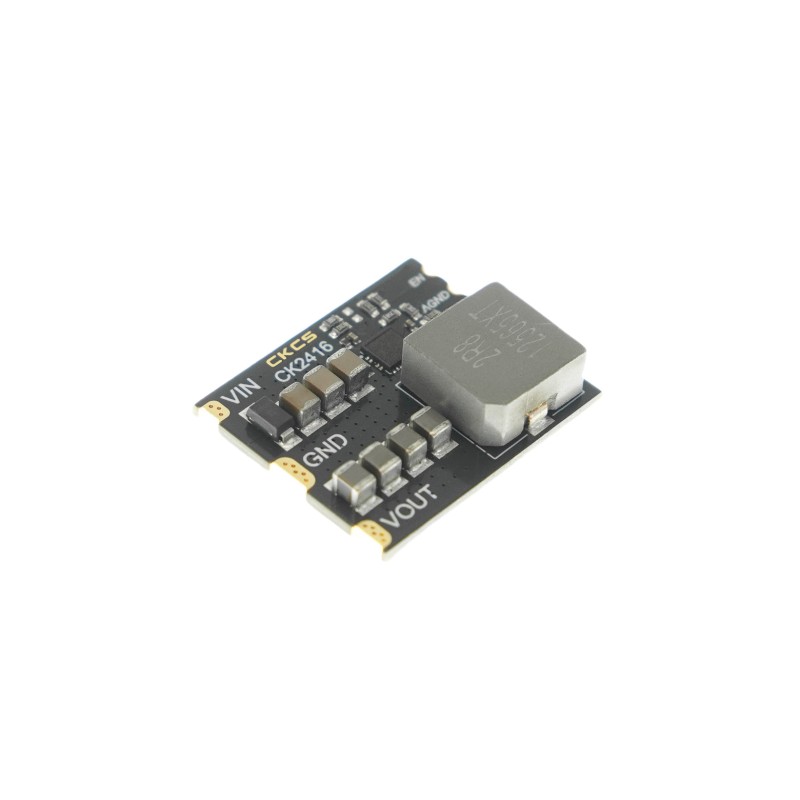

DC-DC step-down converter module 12V 12A used to convert energy from 15-24V input voltage to stable 12V, providing up to 12A current. Thanks to high conversion efficiency (over 90%) and low ripple (<50mV), it is ideal for powering sensitive devices in applications such as robotics, drones or LED lighting systems. Additionally, built-in overheating and short-circuit protection mechanisms ensure reliable operation even in difficult conditions. DFRobot DFR1208

24h
Available
Available quantity: 1
Kamami is the official distributor of DFRobot modules and development kits. All boards of this brand in our offer are original and come directly from the manufacturer.

Description

The DC-DC step-down converter module 12V 12A is a reliable solution for efficient electrical energy conversion. It supports a wide input voltage range from 15V to 24V and provides a stable output voltage of 12V, capable of delivering up to 12A of current. With high conversion efficiency (over 95% at 1-12A load and 24V input voltage), the module is ideal for applications requiring stable power supply, such as robotics, drones, high-power LED lighting systems, and automotive electronics.


Low ripple (<50mV) makes it suitable for powering sensitive electronic devices. The module is equipped with advanced protection mechanisms, such as overheat protection up to 125°C and short circuit protection on the output, ensuring reliable operation in demanding conditions. Its design, which promotes better heat dissipation, ensures stable performance even under continuous high current load.

Features

  • Input voltage range: 12V to 24V
  • Output voltage: 12V ±1%
  • Maximum output current: 12A
  • Output ripple: below 50mV (at 1-12A load)
  • Conversion efficiency: over 95% (at 24V input voltage and 1-12A load)
  • Static current: below 3mA (when the EN pin is not connected), below 3µA (when the EN pin is connected to ground)
  • Operating temperature: -25°C to +70°C
  • Output short circuit protection
  • Overheat protection: 125°C
  • Dimensions: 30 x 26 x 8 mm
1196978

Data sheet

Output voltage
12V
Output current
12 A
Converter type
Step-down
Supply voltage min
15 V
Supply voltages max
24 V
