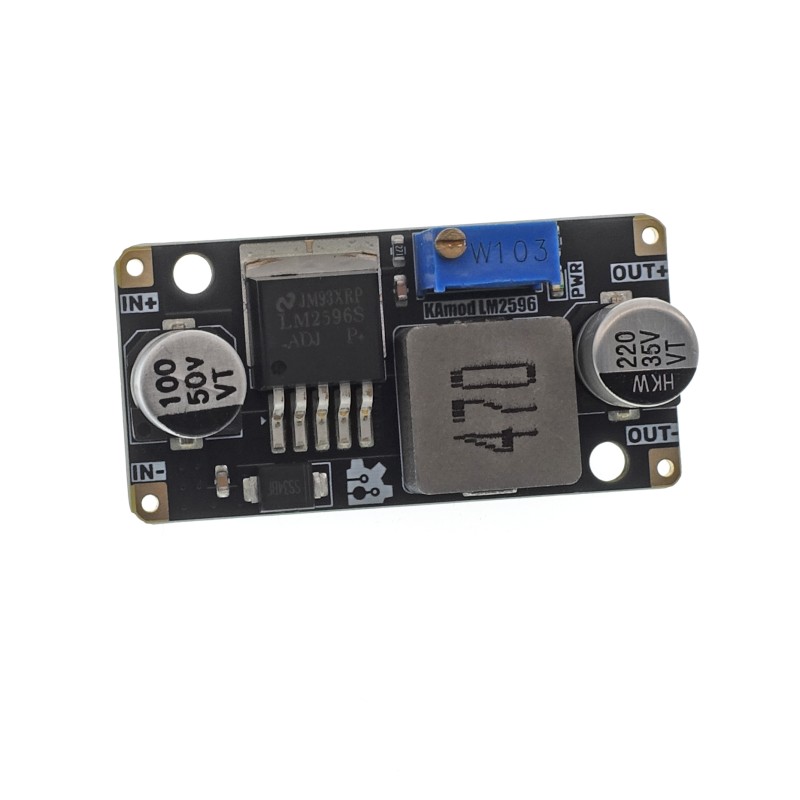

KAmod LM2596S DC-DC Step-down Converter Module 3A with LM2596S Chip
ID: 1196918
5902186302372
zł5.90
Tax included
zł4.80 tax excl.
The DC-DC Step-down Converter Module with the LM2596S chip allows you to convert the voltage from the range of 3-40 V to a regulated output voltage of 1.5-35 V with high efficiency up to 92%. The maximum output current is 3 A, and the operating frequency is 150 kHz. The compact design with dimensions of 43 × 21 × 14 mm, the possibility of precise voltage regulation and a pinout of 2.54 mm facilitate the integration of the module in DIY projects, power supply systems, modeling and laboratory stations. The operating temperature range is from -40 to 85°C
Description
The DC-DC Step-down converter module with the LM2596S chip provides effective voltage regulation in a wide range of 1.5-35 V, achieving high efficiency of up to 92%. Thanks to its compact dimensions, precise regulation and universal applications, it is ideal for DIY projects, modeling and as a tool in electronics laboratories. The module's leads have been arranged in a 2.54 mm pitch and allow for soldering wires or golpins.
Features
- Wide input voltage range: 3 - 40 V
- Adjustable output voltage: 1.5 - 35 V
- Potentiometer for smooth, precise output voltage adjustment
- Maximum current: 3 A (when cooling is used)
- Operating frequency: 150 kHz
- High efficiency: 92%
- Operating temperature range: -40...85°C
- Mounting hole diameter: ⌀3 mm
- Dimensions: 43 x 21 x 14 mm
1196918
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Other products in the same category (16)
DC-DC Step-Down converter module. It has an input voltage from 6 to 45 V, an output voltage of 6 V and a maximum output current of up to 3.3 A. Pololu 4893
zł88.33
24h
Available quantity: 1
Available
DC-DC Step-Down converter module. It has an input voltage from 7.5 to 45 V, an output voltage of 7.5 V and a maximum output current of up to 3 A. Pololu 4894
zł85.19
24h
Available quantity: 1
Available
DC-DC Step-Down converter module. It has an input voltage from 9 to 45 V, an output voltage of 9 V and a maximum output current of up to 2.9 A. Pololu 4895
zł79.51
24h
Available quantity: 1
Available
Step-Down converter with adjustable output voltage from 4.2 V to 15 V and output voltage up to 45 V. It is equipped with reverse voltage protection, input undervoltage lockout, overload and short circuit protection. Pololu 4875
zł110.34
24h
Available quantity: 2
Available
Step-Down converter with adjustable output voltage from 4.2 V to 15 V and output voltage up to 45 V. It is equipped with reverse voltage protection, input undervoltage lockout, overload and short circuit protection. Pololu 4874
zł114.97
24h
Available quantity: 2
Available
Step-Down converter with adjustable output voltage from 4.2 V to 15 V and output voltage up to 45 V. It is equipped with reverse voltage protection, input undervoltage lockout, overload and short circuit protection. Pololu 4855
zł106.42
24h
Available quantity: 2
Available
Step-Down converter with adjustable output voltage from 4.2 V to 15 V and output voltage up to 45 V. It is equipped with reverse voltage protection, input undervoltage lockout, overload and short circuit protection. Pololu 4854
zł127.35
24h
Available quantity: 3
Available

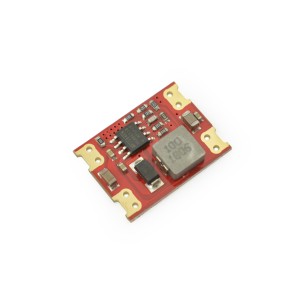

Buck-mode DC-DC power module that converts voltage from 8 V to 28 V to a stable 5 V at a maximum current of 1.6 A, providing high conversion efficiency. Thanks to its small size, stability and reliability, the module is perfect for DIY projects, mobile power supply construction and applications requiring precise, stable voltage. DFRobot DFR0571
