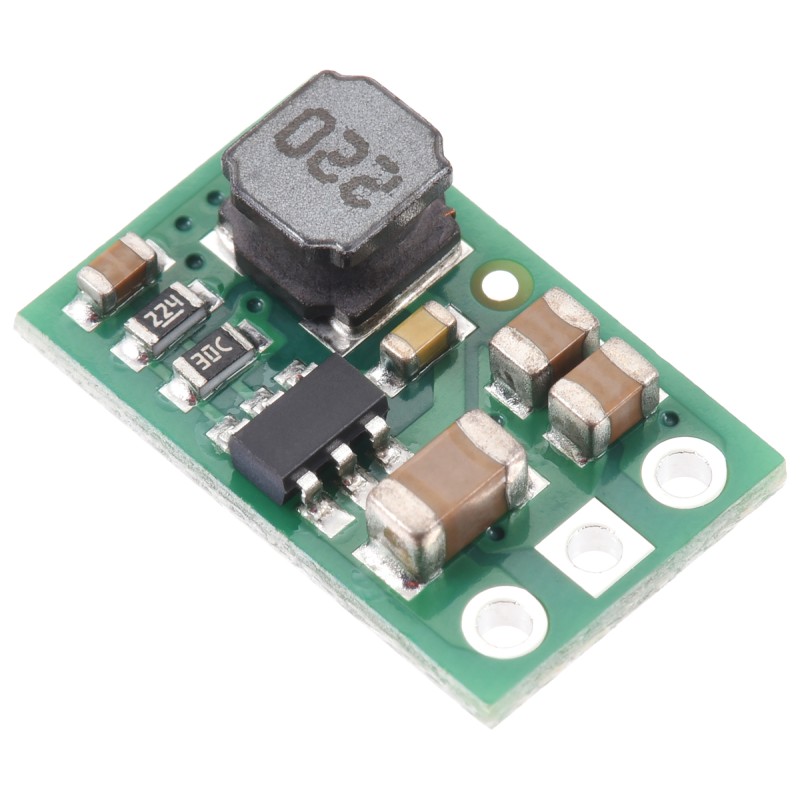

12V, 600mA Step-Down Voltage Regulator D24V7F12
ID: 1201026
zł10.46
Tax included
zł8.50 tax excl.
A step-down converter module that allows you to reduce the input voltage from 12.2–36 V to a stable 12 V, ensuring high efficiency thanks to SMPS technology. A maximum output current of 600 mA allows you to power microcontrollers, IoT modules, and other electronic systems. The device is equipped with short circuit and overheating protection and offers very low quiescent current. Pololu 5597
Description
The voltage converter module is a step-down (buck) converter designed to reduce an input voltage from 12.2 V to 36 V down to a stable 12 V output. Thanks to its switch-mode power supply (SMPS) design, it provides significantly higher efficiency than traditional linear regulators, especially when there is a large difference between the input and output voltages. The maximum continuous output current is 600 mA, making it suitable for powering a wide range of popular electronic circuits, microcontrollers, and communication modules. The device operates at a switching frequency of 1.1 MHz under standard loads and automatically reduces the frequency at light loads to further improve energy efficiency. The regulator features a very low quiescent current – below 0.01 mA across most of its operating range – making it an ideal choice for battery-powered applications.
The converter includes built-in short-circuit and overtemperature protection, ensuring stable and safe operation under all conditions. Its compact design allows for easy integration into space-constrained projects. The board features three pins: VIN (input voltage), GND (ground), and VOUT (output voltage), spaced at 2.54 mm for full compatibility with breadboards and prototyping connectors.
Thanks to its high efficiency and stable performance, this module is ideal for microcontroller-based projects, IoT systems, portable devices, and any other application requiring reliable voltage conversion. It combines compact size, high performance, and reliability, offering an excellent price-to-performance ratio.
Features
- Input voltage: 12.2 V to 36 V
- Output voltage: 12 V (accuracy ±4%)
- Maximum output current: 600 mA (continuous)
- Switching frequency: 1.1 MHz (reduced at light loads)
- Very low quiescent current: < 0.01 mA
- Short-circuit and overtemperature protection
- Pinout: VIN, GND, VOUT
- Pin spacing: 2.54 mm
- Dimensions: 8.6 × 13.7 × 4.1 mm
- Weight: 0.5 g
1201026
Data sheet
- Output voltage
- 12V
- Output current
- 0.6A
- Converter type
- Step-down
- Supply voltage min
- 12,2 V
- Supply voltages max
- 36 V
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
You might also like
Pin header goldpin black 1x40 pins. Straight connector for through-hole assembly. 2.54mm pitch.
zł1.23
24h
Available quantity: 5293
Available
Pin header goldpin black 1x40 pins. Angled connector for through-hole assembly. 2.54mm pitch.
zł1.23
24h
Available quantity: 19237
Available
Other products in the same category (16)
The Step-Down converter module on the MP1584EN chip converts the input voltage (9-35V) to the regulated output voltage (0.8-25V) with a maximum current of 5A and a power of 25W. It operates in temperatures from -20°C to 75°C and has a compact size of 45 x 31 x 16 mm.
zł3.60
4 weeks
No product available!
Step-Down converter with adjustable output voltage from 1.25 to 36 V, input voltage from 4 to 38 V and maximum current up to 5 A
zł6.91
24h
Available quantity: 34
Available
The Step-Down D24V6F5 Buck Voltage Regulator module gives the output voltage of 5V with a wide input voltage range of 7-42V and a maximum output current of 600 mA. Pololu 2107
zł41.72
24h
Available quantity: 1
Available
The DC-DC Step-down Converter Module with the LM2596S chip allows you to convert the voltage from the range of 3-40 V to a regulated output voltage of 1.5-35 V with high efficiency up to 92%. The maximum output current is 3 A, and the operating frequency is 150 kHz. The compact design with dimensions of 43 × 21 × 14 mm, the possibility of precise voltage regulation and a pinout of 2.54 mm facilitate the integration of the module in DIY projects, power supply systems, modeling and laboratory stations. The operating temperature range is from -40 to 85°C
zł5.90
24h
Available quantity: 768
Available
The Step-Down converter module on the MP1584EN chip converts the 4.5-28V input voltage to 12V output voltage with a maximum current of 3A and an efficiency of up to 92%. It is a compact device measuring 22 x 17 x 4 mm, operating in a temperature range of -20°C to 85°C, ideal for a variety of industrial applications.
zł3.91
24h
Available quantity: 15
Available
Step-Down converter D36V50F5 with an output voltage of 5 V, an input voltage from 5.5 to 50 V and a maximum output current of 8 A. Pololu 4091
zł156.19
4 weeks
No product available!
The compact (0.4″ × 0.5″) D24V5F5 synchronous buck voltage regulator takes an input voltage of up to 36 V and efficiently reduces it to 5 V while allowing for a maximum output current of 500 mA. Pololu 2843
zł32.50
24h
Available quantity: 9
Available
This compact (0.4″ × 0.5″) switching step-down (or buck) voltage regulator takes input voltages up to 50 V and efficiently reduces them to 7.5 V while allowing for a maximum output current of 600 mA. It has a very low dropout, so it can be used with input voltages that are within a few hundred millivolts of its output.
zł26.40
24h
Available quantity: 1
Available
The Step-Down Converter Module converts 0.5V-26V input voltage to 0.8-25V constant, with a maximum output current of 3A, recommended up to 2.3A for long-term use. The conversion efficiency of the device is 96%, and the module size is 22.3mm x 17mm x 4.2mm.
zł5.18
24h
Available quantity: 24
Available
This small synchronous switching step-down (or buck) regulator takes an input voltage of up to 38 V and efficiently reduces it to 6 V. The board measures only 0.7″ × 0.7″, but it allows a typical continuous output current of up to 2.5 A. Typical efficiencies of 85% to 95% make this regulator well suited for powering moderate loads like sensors or small motors.
zł88.84
4 weeks
No product available!
DC-DC Step-Down converter module. It has an input voltage from 9 to 45 V, an output voltage of 9 V and a maximum output current of up to 2.9 A. Pololu 4895
zł79.51
24h
Available quantity: 1
Available
Available
The Step-Down Converter allows you to adjust the output voltage (1.5-35V) and output current (up to 10A, 8A recommended), supporting a maximum of 150W (100W recommended) with an operating temperature of -20 to 75°C and a conversion efficiency of up to 95%. It has short-circuit protection but no reverse input protection.
zł55.50
24h
Available quantity: 6
Available

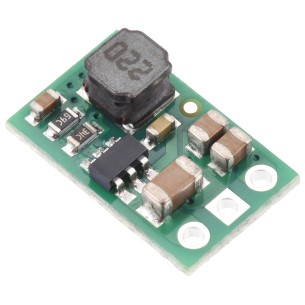

A step-down converter module that allows you to reduce the input voltage from 4–36 V to a stable 3.3 V, ensuring high efficiency thanks to SMPS technology. A maximum output current of 600 mA allows you to power microcontrollers, IoT modules, and other electronic systems. The device is equipped with short circuit and overheating protection and offers very low quiescent current. Pololu 5592
