5V, 600mA Step-Down Voltage Regulator D24V7F5
ID: 1201030
zł10.46
Tax included
zł8.50 tax excl.
A step-down converter module that allows you to reduce the input voltage from 5.1–36 V to a stable 5 V, ensuring high efficiency thanks to SMPS technology. A maximum output current of 600 mA allows you to power microcontrollers, IoT modules, and other electronic systems. The device is equipped with short circuit and overheating protection and offers very low quiescent current. Pololu 5593
Description
The voltage converter module is a step-down (buck) converter designed to reduce an input voltage from 5.1 V to 36 V down to a stable 5 V output. Utilizing switch-mode power supply (SMPS) technology, the device offers significantly higher efficiency than traditional linear regulators, especially when there is a large difference between input and output voltage. The maximum output current is 600 mA, allowing it to power a wide range of popular electronic circuits, microcontrollers, and communication modules. The converter operates at a switching frequency of 1.1 MHz under standard loads, and automatically lowers the frequency at light loads to improve energy efficiency. The regulator features a very low quiescent current – below 0.01 mA for most of the operating range – making it ideal for battery-powered applications.
The converter includes built-in short-circuit and overtemperature protection, ensuring stable and safe operation under all conditions. Its compact design makes it easy to integrate into projects with limited space. The board provides three pins: VIN (input voltage), GND (ground), and VOUT (output voltage), spaced at 2.54 mm intervals for full compatibility with breadboards and prototype connectors.
Thanks to its high efficiency and stable performance, this module is an excellent choice for microcontroller-based projects, IoT systems, portable devices, and any application that requires reliable voltage conversion. It combines compact size, high performance, and reliability, offering an outstanding price-to-quality ratio.
Features
- Input voltage: 5.1 V to 36 V
- Output voltage: 5 V (accuracy ±4%)
- Maximum output current: 600 mA (continuous)
- Switching frequency: 1.1 MHz (reduced at light loads)
- Very low quiescent current: < 0.01 mA
- Short-circuit and overtemperature protection
- Pinout: VIN, GND, VOUT
- Pin spacing: 2.54 mm
- Dimensions: 8.6 × 13.7 × 4.1 mm
- Weight: 0.5 g
1201030
Data sheet
- Output voltage
- 5th
- Output current
- 0.6A
- Converter type
- Step-down
- Supply voltage min
- 5,1 V
- Supply voltages max
- 36 V
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
You might also like
Pin header goldpin black 1x40 pins. Straight connector for through-hole assembly. 2.54mm pitch.
zł1.23
24h
Available quantity: 5293
Available
Pin header goldpin black 1x40 pins. Angled connector for through-hole assembly. 2.54mm pitch.
zł1.23
24h
Available quantity: 19237
Available
Other products in the same category (16)
The Step-Down D24V6F12 Buck Voltage Regulator module gives the output voltage of 12V with a wide input voltage range of 15-42V and a maximum output current of 600 mA. Pololu 2109
zł34.82
4 weeks
No product available!
The Step-Down D24V3F3 Buck Voltage Regulator module gives the output voltage of 3,3V with a wide input voltage range of 4.3-42V and a maximum output current of 300 mA. Pololu 2097
zł33.53
24h
Available quantity: 1
Available
A synchronous step-down converter that reduces input voltage from 18V to 60V to a stable 18V with up to 95% efficiency and 4A output current. It offers low standby current (<0.2mA), soft-start functionality, overcurrent, thermal, and reverse polarity protection. Compact and easy to integrate, it is ideal for microprocessor systems, IoT, and automation. Pololu 5578
zł120.68
4 weeks
No product available!
Step-Down XL4005 converter module with adjustable output voltage in the range from 0.8 to 30 V with a wide input voltage range from 4.5 to 30 V and a maximum output current of 5 A
zł19.35
24h
Available quantity: 25
Available
This compact (0.4″ × 0.5″) switching step-down (or buck) voltage regulator takes input voltages up to 50 V and efficiently reduces them to 15 V while allowing for a maximum output current of 600 mA. It has a very low dropout, so it can be used with input voltages that are within a few hundred millivolts of its output.
zł27.85
24h
Available quantity: 1
Available
Step-Down DC-DC converter module based on the D24V150F9 chip. Input voltage 11 ... 40V, output voltage 9V (max 15A). Pololu 2884
zł485.70
24h
Available quantity: 2
Available
Step-Down Converter Module allows you to adjust the voltage from 5-36V to 1.3-32V, supporting a maximum of 8A current (5A recommended) and 200W power. It also features voltmeter, ammeter and short circuit protection, offering 94% efficiency and 180KHz switching frequency. XH-M403
zł59.90
4 weeks
No product available!
Step-Down converter D36V28F12 with an output voltage of 12 V, an input voltage from 12.9 to 50 V and a maximum output current of 3.3 A. Pololu 3786
zł81.91
24h
Available quantity: 2
Available
The 4-channel Step-Down Converter module converts voltages in the range of 13.5-30V to 3.3V, 5V, 12V or regulated 2-28V, with a maximum current of 3A per channel and a total power of 50W. It includes protections and shutdown functions and can operate in temperatures from -40°C to +85°C.
zł55.25
4 weeks
No product available!
An efficient step-down converter that reduces the input voltage to 5 V at a maximum current of 100 mA, offering high efficiency due to low quiescent current (<20 μA). It supports input voltage from 5 V to 65 V, has a Power Good (PGOOD) function, an EN input for system shutdown, and short circuit and overheat protection, making it a reliable and energy-efficient solution. Pololu 5373
zł23.43
4 weeks
No product available!
Step-Down Voltage Regulator D24V25F5. Pololu 2850
zł82.64
24h
Available quantity: 2
Available
The Step-Down Converter allows you to adjust the output voltage (1.5-35V) and output current (up to 10A, 8A recommended), supporting a maximum of 150W (100W recommended) with an operating temperature of -20 to 75°C and a conversion efficiency of up to 95%. It has short-circuit protection but no reverse input protection.
zł55.50
24h
Available quantity: 6
Available
An efficient step-down converter that reduces the input voltage to 3.3 V at a maximum current of 100 mA, offering high efficiency due to low quiescent current (<20 μA). It supports input voltages from 3.3 V to 65 V, has a Power Good (PGOOD) function, an EN input for system shutdown, and short circuit and overheat protection, making it a reliable and energy-efficient solution. Pololu 5372
zł23.43
4 weeks
No product available!
The Step-Down D24V3F12 Buck Voltage Regulator module gives the output voltage of 12V with a wide input voltage range of 14.5-42V and a maximum output current of 300 mA. Pololu 2100
zł28.86
4 weeks
No product available!

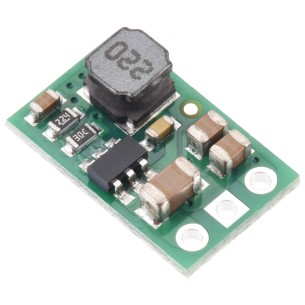

A step-down converter module that allows you to reduce the input voltage from 12.2–36 V to a stable 12 V, ensuring high efficiency thanks to SMPS technology. A maximum output current of 600 mA allows you to power microcontrollers, IoT modules, and other electronic systems. The device is equipped with short circuit and overheating protection and offers very low quiescent current. Pololu 5597
