Step-Down Voltage Converter D24V7F3 3.3V, 600mA
ID: 1201031
zł10.46
Tax included
zł8.50 tax excl.
A step-down converter module that allows you to reduce the input voltage from 4–36 V to a stable 3.3 V, ensuring high efficiency thanks to SMPS technology. A maximum output current of 600 mA allows you to power microcontrollers, IoT modules, and other electronic systems. The device is equipped with short circuit and overheating protection and offers very low quiescent current. Pololu 5592
Description

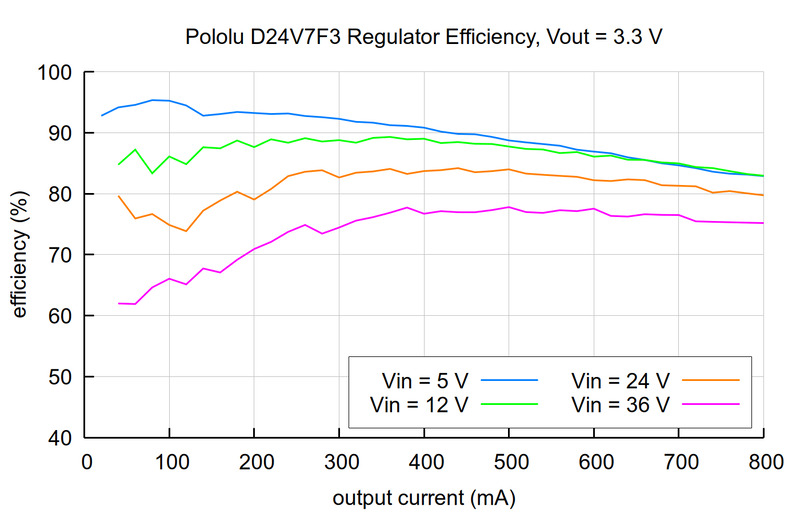

The voltage converter module is a step-down (buck) converter designed to reduce an input voltage from 4 V to 36 V down to a stable 3.3 V output. Utilizing switch-mode power supply (SMPS) technology, the device offers significantly higher efficiency than traditional linear regulators, especially when there is a large difference between input and output voltage. The maximum output current is 600 mA, allowing it to power a wide range of popular electronic circuits, microcontrollers, and communication modules. The converter operates at a switching frequency of 1.1 MHz under standard loads, and automatically lowers the frequency at light loads to improve power efficiency. The regulator features a very low quiescent current – below 0.01 mA for most of the operating range – making it ideal for battery-powered applications.
The converter includes built-in short-circuit and overtemperature protection, ensuring stable and safe operation under all conditions. Its compact design makes it easy to integrate into projects with limited space. The board provides three pins: VIN (input voltage), GND (ground), and VOUT (output voltage), spaced at 2.54 mm intervals for full compatibility with breadboards and prototype connectors.
Thanks to its high efficiency and stable performance, this module is an excellent choice for microcontroller projects, IoT systems, portable devices, and any application that requires reliable voltage conversion. It combines compact size, high performance, and reliability, offering an outstanding price-to-quality ratio.
Features
- Input voltage: 4 V to 36 V
- Output voltage: 3.3 V (accuracy ±4%)
- Maximum output current: 600 mA (continuous)
- Switching frequency: 1.1 MHz (reduced at light loads)
- Very low quiescent current: < 0.01 mA
- Short-circuit and overtemperature protection
- Pinout: VIN, GND, VOUT
- Pin spacing: 2.54 mm
- Dimensions: 8.6 × 13.7 × 4.1 mm
- Weight: 0.5 g
1201031
Data sheet
- Output voltage
- 3,3 V
- Output current
- 0.6A
- Converter type
- Step-down
- Supply voltage min
- 4 V
- Supply voltages max
- 36 V
