- New

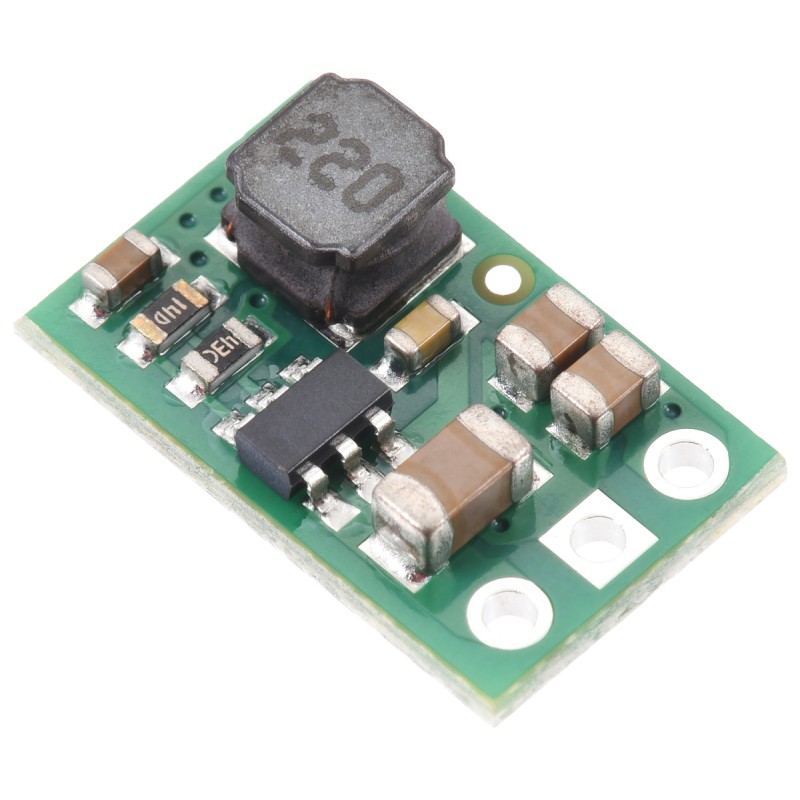

6V, 600mA Step-Down Voltage Regulator D24V7F6
ID: 1201029
zł10.46
Tax included
zł8.50 tax excl.
A step-down converter module that allows for input voltage reduction from 6.1–36V to a stable 6V level, ensuring high efficiency thanks to SMPS technology. A maximum output current of 600mA allows for powering microcontrollers, IoT modules, and other electronic systems. The device is equipped with short circuit and overheating protection and offers very low quiescent current. Pololu 5594
Description

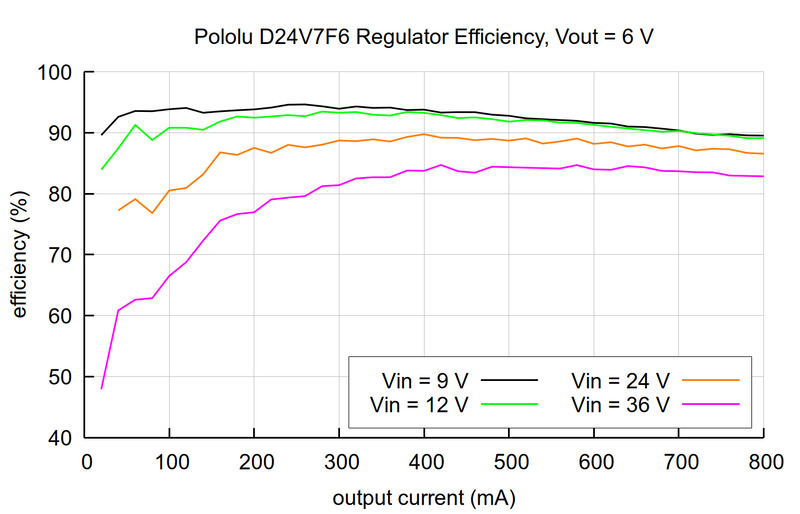

The voltage converter module is a step-down (buck) converter designed to reduce an input voltage from 6.1 V to 36 V down to a stable 6 V output. Using switch-mode power supply (SMPS) technology, the device provides significantly higher efficiency than traditional linear regulators, especially when there is a large difference between the input and output voltage. The maximum output current is 600 mA, allowing it to power a variety of popular electronic circuits, microcontrollers, and communication modules. The converter operates at a switching frequency of 1.1 MHz under standard loads and automatically reduces the frequency at light loads to increase energy efficiency. The regulator features a very low quiescent current – below 0.01 mA across most of its operating range – making it ideal for battery-powered applications.
The converter includes built-in short-circuit and overtemperature protection, ensuring stable and safe operation under all conditions. Its compact design makes it easy to integrate into projects with limited space. The board provides three pins: VIN (input voltage), GND (ground), and VOUT (output voltage), spaced at 2.54 mm intervals for full compatibility with breadboards and prototype connectors.
Thanks to its high efficiency and stable operation, this module is an excellent choice for microcontroller-based projects, IoT systems, portable devices, and any application that requires reliable voltage conversion. It combines compact size, high performance, and reliability, offering an outstanding price-to-quality ratio.
Features
- Input voltage: 6.1 V to 36 V
- Output voltage: 6 V (accuracy ±4%)
- Maximum output current: 600 mA (continuous)
- Switching frequency: 1.1 MHz (reduced at light loads)
- Very low quiescent current: < 0.01 mA
- Short-circuit and overtemperature protection
- Pinout: VIN, GND, VOUT
- Pin spacing: 2.54 mm
- Dimensions: 8.6 × 13.7 × 4.1 mm
- Weight: 0.5 g
1201029
Data sheet
- Output voltage
- 6.0V
- Output current
- 0.6A
- Converter type
- Step-down
- Supply voltage min
- 6,1 V
- Supply voltages max
- 36 V
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
