A step-down converter module that allows you to reduce the input voltage from 9.2–36V to a stable 9V, ensuring high efficiency thanks to SMPS technology. A maximum output current of 600mA allows you to power microcontrollers, IoT modules, and other electronics. The device is equipped with short circuit and overheating protection and offers very low quiescent current. Pololu 5596

6 weeks
Awaiting delivery
Kamami is the official distributor of electronic modules and Pololu robotic parts. All products of this brand in our offer are original and come directly from the manufacturer.

Description

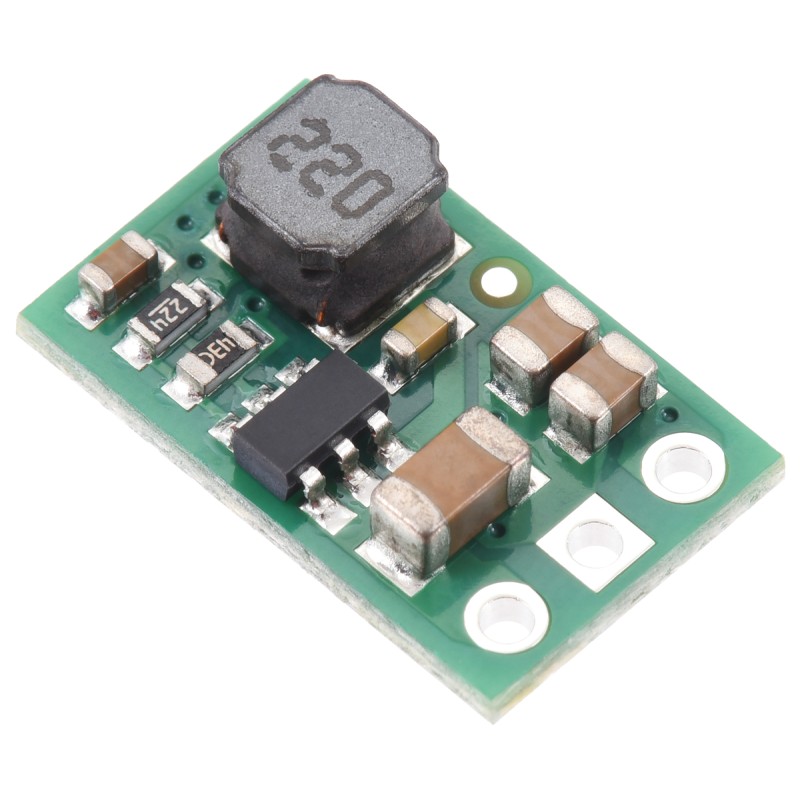

The voltage converter module is a step-down (buck) converter designed to reduce an input voltage from 9.2 V to 36 V down to a stable 9 V output. Thanks to its switch-mode power supply (SMPS) design, it provides much higher efficiency than traditional linear regulators, especially when there is a large difference between the input and output voltages. The maximum continuous output current is 600 mA, making it suitable for powering various popular electronic circuits, microcontrollers, and communication modules. The device operates at a switching frequency of 1.1 MHz under standard loads and automatically lowers the frequency at light loads to further increase energy efficiency. The regulator features a very low quiescent current – below 0.01 mA across most of its operating range – making it an ideal solution for battery-powered systems.


The converter includes built-in short-circuit and overtemperature protection, ensuring stable and safe operation in all conditions. Its compact design allows for easy integration into projects with limited space. The board features three pins: VIN (input voltage), GND (ground), and VOUT (output voltage), spaced at 2.54 mm for full compatibility with breadboards and prototyping connectors.

Thanks to its high efficiency and stable operation, this module is an excellent choice for microcontroller-based projects, IoT systems, portable devices, and any other application requiring reliable voltage conversion. It combines compact size, high performance, and reliability, offering an excellent price-to-performance ratio.


Features

  • Input voltage: 9.2 V to 36 V
  • Output voltage: 9 V (accuracy ±4%)
  • Maximum output current: 600 mA (continuous)
  • Switching frequency: 1.1 MHz (reduced at light loads)
  • Very low quiescent current: < 0.01 mA
  • Short-circuit and overtemperature protection
  • Pinout: VIN, GND, VOUT
  • Pin spacing: 2.54 mm
  • Dimensions: 8.6 × 13.7 × 4.1 mm
  • Weight: 0.5 g
1201027

Data sheet

Output voltage
9 V
Output current
0.6A
Converter type
Step-down
Supply voltage min
9,2 V
Supply voltages max
36 V
