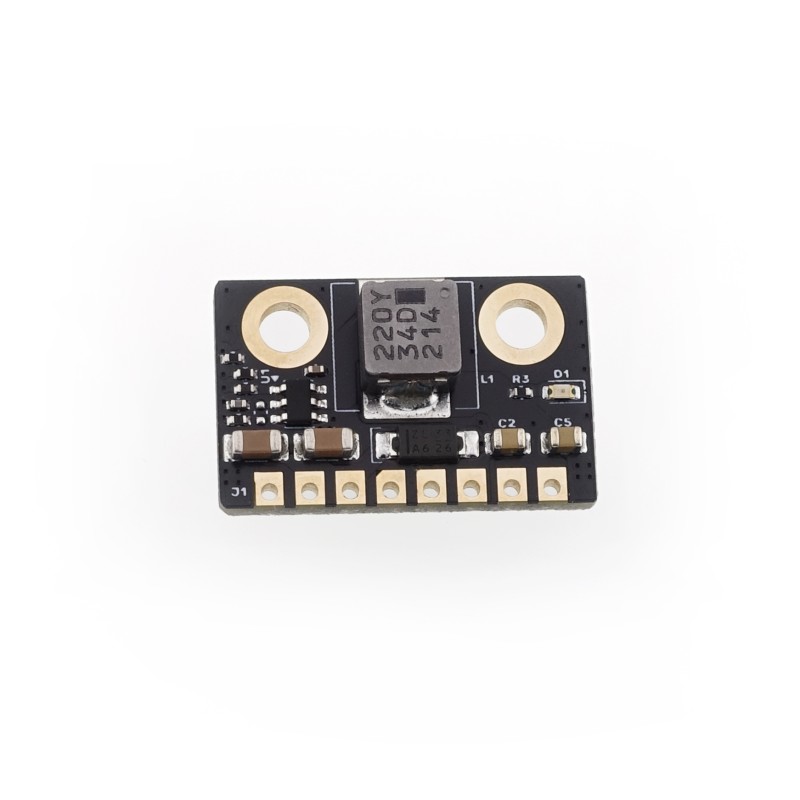

  • Top view
  • Bottom view
ID: 1201615
5902186335677
zł18.91
Tax included

zł15.37 tax excl.

Miniature Step-Down converter module with AP63300, input voltage 3.5-32 V, selectable output voltage 3.3 V, 5 V or 12 V, maximum continuous current 1 A, peak current up to 2 A, dimensions 24 x 16 mm. Kamami KAmod DCDC AP63300

24h
Available
Available quantity: 212

Description

Compact Step-Down switching converter module based on the AP63300 integrated circuit, intended for voltage regulation in electronic power supply systems and embedded projects. The compact design with dimensions of 24 x 16 mm allows integration in space-constrained applications such as portable devices, IoT modules, and automation systems.

The module operates with an input voltage range from 3.5 V to 32 V and provides a stable output voltage selectable between 3.3 V, 5 V, and 12 V. Output voltage selection is performed using SMD jumpers. The module supports up to 2 A peak load and 1 A continuous current, with conversion efficiency reaching approximately 90% at 1 A load. An additional control pin allows switching the converter into standby mode, reducing power consumption in low-power applications.

Features

  • Integrated circuit: AP63300
  • Input voltage: 3.5 - 32 V
  • Output voltage: 3.3 V / 5 V / 12 V (SMD jumper selectable)
  • Maximum continuous output current: 1 A
  • Maximum peak output current: 2 A
  • Minimum input-output voltage difference: 1 V
  • Switching frequency: 500 kHz
  • Efficiency: approx. 90% at 1 A
  • Standby control input: yes
  • Protection against overvoltage, overload and overheating
  • Dimensions: 24 x 16 mm
1201615

Data sheet

Output voltage
3,3 V /5 V / 12 V
Output current
1A
Converter type
Step-down
Supply voltage min
3,5 V
Supply voltages max
32 V

Manufacturer

  • BTC Korporacja sp. z o. o.
  • Ludwinowo Zegrzyńskie 52G
  • 05-140 Ludwinowo Zegrzyńskie
  • Poland
  • [email protected]
  • 22 767 36 20

Responsible person

  • BTC Korporacja sp. z o. o.
  • Ludwinowo Zegrzyńskie 52G
  • 05-140 Ludwinowo Zegrzyńskie
  • Poland
  • [email protected]
  • 22 767 36 20
