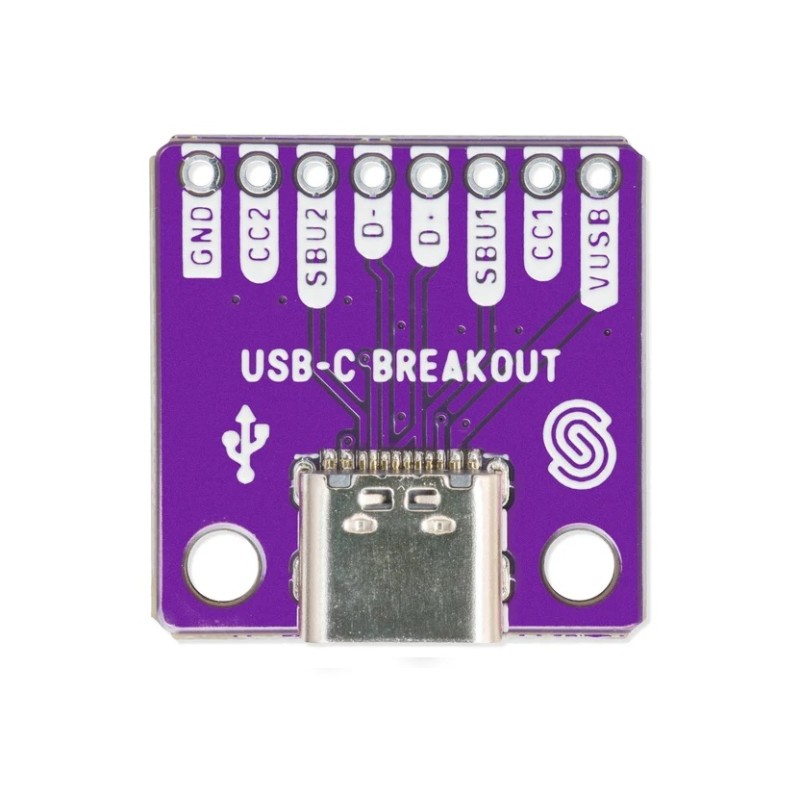

USB-C female connector breakout providing access to VBUS, GND, CC1, CC2, D+, and D- through breadboard-compatible 2.54mm-pitch pins. It provides access to USB power and data lines for custom electronic circuits and prototyping. Board dimensions are 22 × 22mm. Soldered 333011

Delivery date unknown
Out-of-Stock

Description

The device USB-C Female Connector Breakout by Soldered provides access to selected USB Type-C female connector signals through breadboard-compatible pins. The board exposes VBUS, GND, CC1, CC2, D+, and D-, allowing USB power and data lines to be connected to custom electronic circuits.

The 2.54mm pin pitch makes the board suitable for use with breadboards and standard pin headers. Access to the CC1 and CC2 lines allows them to be used in circuits requiring the USB-C configuration channel. Functions such as USB Power Delivery require a suitable external controller and are not implemented by the breakout board itself.

The board can be used for prototyping devices with a USB-C receptacle, USB-powered circuits, and designs requiring access to the D+ and D- data lines. Two mounting holes allow the board to be mechanically secured inside a prototype or finished device. Board dimensions are 22 × 22mm.

Features

  • Connector and signals
    • Connector type: USB Type-C female
    • Exposed lines: VBUS, GND, CC1, CC2, D+, D-
    • Access to USB D+ and D- data lines
    • Access to USB-C CC1 and CC2 configuration channel lines
  • Prototyping and mounting
    • Pin pitch: 2.54mm
    • Breadboard-compatible design
    • Number of mounting holes: 2
    • Dimensions: 22 × 22mm

Kit includes

  • USB-C Female Connector Breakout board
  • Male pin header for soldering
