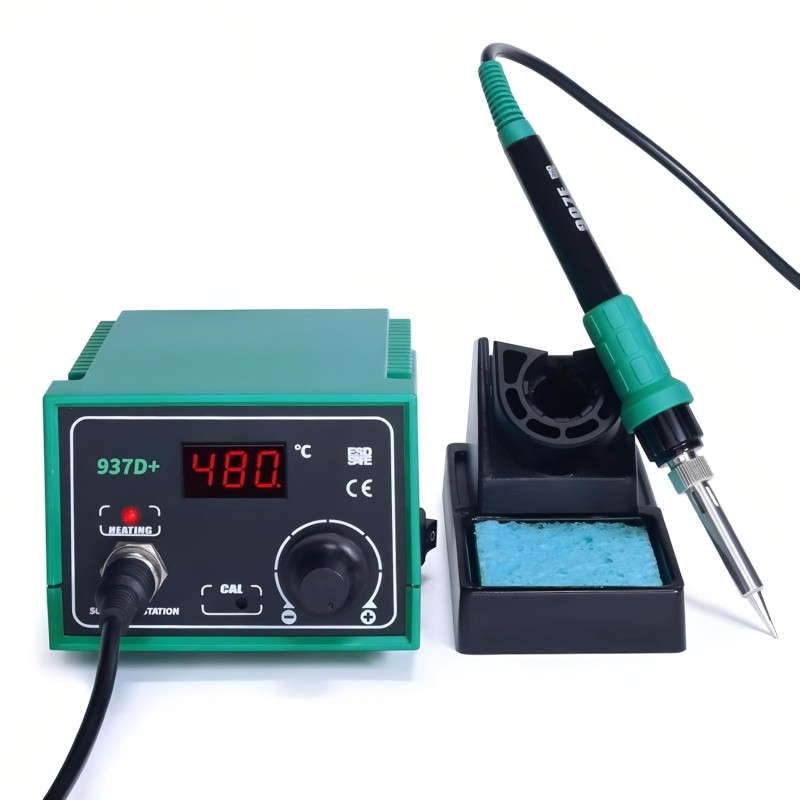

Yihua 937D+ Soldering Station 75W 200-480°C ESD LED
ID: 562881
5906623434275
zł139.90
Tax included
zł113.74 tax excl.
Yihua 937D+ soldering station with 75 W rated power and up to 120 W peak power, featuring temperature control from 200-480°C, LED display, and ESD Safe protection. Equipped with 907E soldering iron with ceramic heater and compatible with 900M-T tips. Yihua 937D+
Description
Soldering station designed for service work, electronics assembly, and workshop applications. The design uses a 907E soldering iron with a ceramic heating element, enabling fast heat-up and stable temperature maintenance during operation with various types of solder joints.
The temperature control system in the range of 200-480°C allows adjustment of parameters for soldering SMD components and joints requiring higher thermal energy. Control via rotary knob and LED display enables real-time monitoring of set and actual temperature.
The PID controller ensures temperature stability by continuously correcting operating parameters, reducing fluctuations and improving soldering quality. The calibration function allows maintaining accuracy over extended use.
ESD Safe protection enables safe operation with electrostatic-sensitive components. Compatibility with 900M-T series tips allows selecting the appropriate tip for specific applications.
Features
- Rated power: 75 W
- Peak power: up to 120 W
- Temperature range: 200-480°C
- Temperature stability: ±10°C
- Power supply: 220-240 V AC 50-60 Hz
- Iron voltage: 24 V AC
- Soldering iron: 907E
- Heating element: ceramic
- Display: 7-segment LED
- Control: rotary knob
- Temperature regulation: PID with calibration
- Compatible tips: 900M-T
- Tip-to-ground potential: <2 mV
- Ground resistance: <2 Ω
- Protection: ESD Safe
- Dimensions: 120 x 93 x 170 mm
- Weight: approx. 1.6 kg
Kit includes
- Yihua 937D+ soldering station - 1 pc
- 907E soldering iron with T-B tip - 1 pc
- Iron stand - 1 pc
- Cleaning sponge - 1 pc
- User manual - 1 pc
562881
Data sheet
- Station type
- Tip soldering iron
- Tip soldering iron temperature
- 200 - 480 °C
- HotAir temperature
- No HotAir
- Power
- 75 W
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
