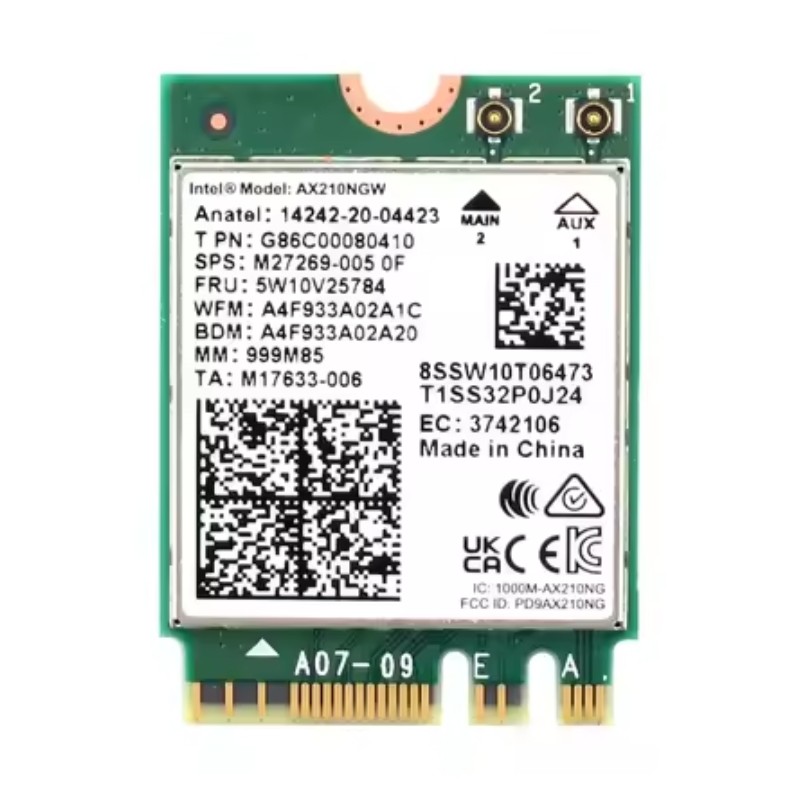

Internal M.2 2230 network card designed for laptops and computers equipped with an NGFF M.2 interface, featuring the Intel AX210NGW module with WiFi 6 and WiFi 6E support. The module operates on 2.4GHz, 5GHz, and 6GHz frequency bands and supports Bluetooth 5.3 technology, providing high-speed wireless connectivity, low latency, and stable data transmission. Maximum throughput up to 5374Mbps improves online gaming, media streaming, remote work, and high-speed file transfers in modern wireless networks

24h
Available
Available quantity: 10

Description

Internal M.2 2230 network card designed for upgrading laptops and computers equipped with a compatible NGFF M.2 slot. Intel AX210NGW chipset supports 802.11a/b/g/n/ac/ax standards and WiFi 6E technology, enabling operation on 2.4GHz, 5GHz, and 6GHz frequency bands. Maximum transmission throughput up to 5374Mbps improves download speeds, connection stability, and overall wireless network performance.

Bluetooth 5.3 module support enables communication with wireless headphones, keyboards, mice, controllers, and other peripheral devices. Compact M.2 2230 form factor is suitable for laptops, mini PCs, and compact computer systems requiring a high-performance wireless communication module. The card supports Windows 10 and Windows 11 operating systems.

Note!

If the Bluetooth module does not operate correctly while WiFi functions normally, the cause may be the lack of Bluetooth interface support through the M.2 slot implemented on the target device motherboard.

Features

  • Model: AX210NGW
  • Chipset: Intel AX210
  • Device type: internal WiFi/Bluetooth network card
  • Interface: NGFF M.2 2230
  • WiFi standards: 802.11a/b/g/n/ac/ax
  • WiFi 6 support
  • WiFi 6E support
  • WiFi frequency bands: 2.4GHz / 5GHz / 6GHz
  • Bluetooth: 5.3
  • Maximum throughput: up to 5374Mbps
  • Supported operating systems: Windows 10 / Windows 11
1197108

Data sheet

Logic voltage
3,3 V
Wi-Fi chip
AX210
Wi-Fi standard
802.11 a/b/g/n/ac/ax
Frequency range
2,4 GHz/5 GHz/6 GHz
Baud rate
5374 Mbps
Antenna connector
I-PEX
Power supply voltage
3,3 V
