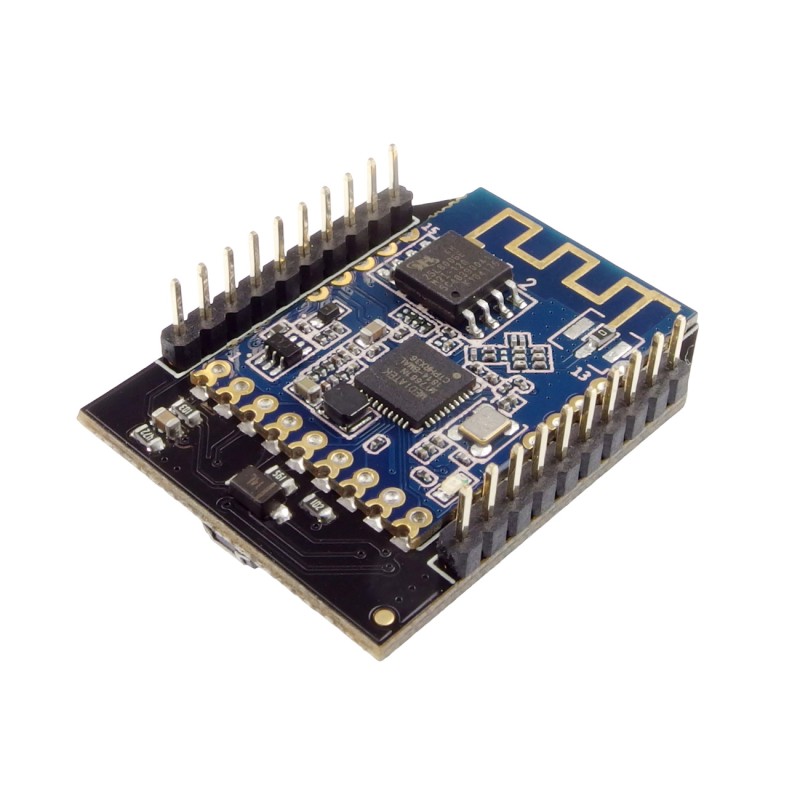

  • WiFiBee-MT7681 - XBee module with Arduino wireless programming mode
  • WiFiBee-MT7681 - XBee module with Arduino wireless programming mode - top view
  • WiFiBee-MT7681 - XBee module with Arduino wireless programming mode - bottom view
ID: 564328
zł74.39
Tax included

zł60.48 tax excl.

WiFiBee-MT7681 is an XBee module based on the MT7681 Wi-Fi module. WiFiBee supports standard IEEE802.11b / g / ni protocols. Can be used as a remote programmer for Arduino tiles. It is powered by 3.3 V. DFRobot TEL0107

24h
Available
Available quantity: 9
Kamami is the official distributor of DFRobot modules and development kits. All boards of this brand in our offer are original and come directly from the manufacturer.


Free shipping

free shipping in Poland for all orders over 500 PLN



Same day shipping

If your payment will be credited to our account by 11:00



14 days for return

Each consumer can return the purchased goods within 14 days

Description

WiFiBee-MT7681 is an XBee module based on the MT7681 Wi-Fi module. It is powered by 3.3V. WiFiBee supports standard IEEE802.11b / g / n protocols, with 2.4 GHz Wi-Fi bands, 14 channels and WEP / WPA-PSK / WPA2-PSK / TKIP / AES encryption methods. It has STA and AP operating modes, it can switch and support TCP / IP communication. The WiFi Bee module also supports smartLink connection. The device is easy to use - just install the application ( Android ) and connect to the wireless router. It is powered by 3.3V.

The module has pin pins compatible with XBee . In the case of Arduino UNO and Arduino Mega 2560 boards , the WiFi Bee module can also be used as a module for wireless code transfer. This is a very convenient solution for debugging robots or mobile platforms. The device parameters can be configured using AT commands via the serial terminal. The module is ideal for Internet of Things (IoT) applications, home automation and robotic applications.

properties

  • Based on the MT7681 layout
  • Protocol standard: IEEE802.11 b / g / n
  • Wi-Fi range: up to 180 m
  • Number of channels: 1 ... 14
  • Frequency range: 2.4 ... 2.4835 G
  • Transmission power: 15 ... 18 dbm
  • Encryption methods: WEP / WPA-PSK / WPA2-PSK / TKIP / AES
  • Operating mode: STA mode / AP mode (mixed mode STA and AP is not supported, only one device can be connected in AP mode)
  • TCP port 1000: TCP <-> Transparent UART data port
  • TCP port 1001: AT command port
  • UDP port 3333: transmission port
  • Interface: UART serial port
  • Transmission speed: 9600, 14400, 19200, 38400, 57600, 115200bps (default)
  • Power consumption: 75 mA
  • Supply voltage: 3.3 V
  • Dimension: 32 x 24 mm
  • Weight: 3.5 g
