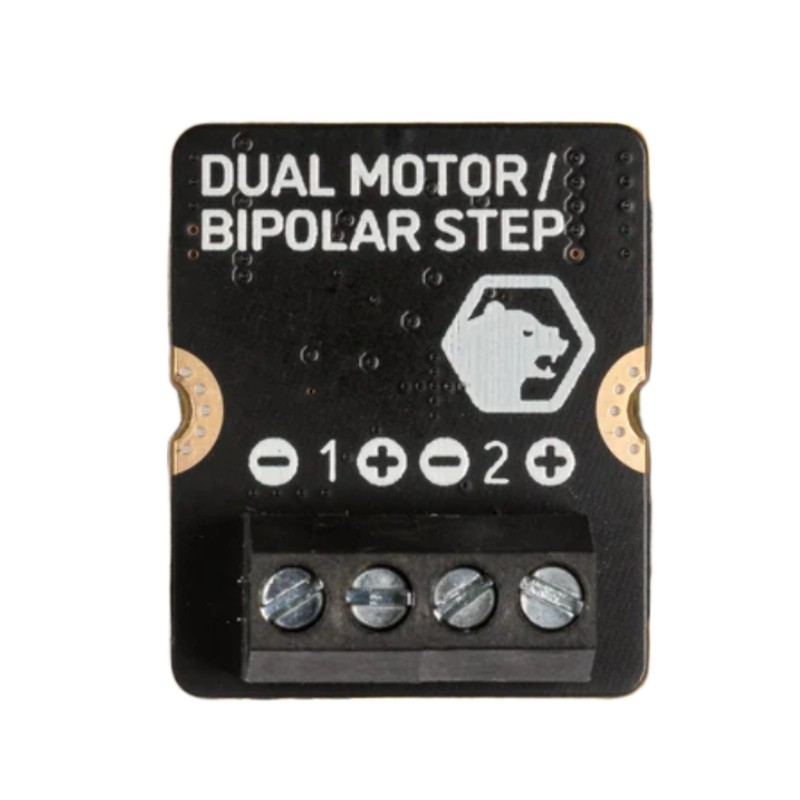

  • Main view
  • Back view
ID: 1202078
769894024713
zł88.73
Tax included

zł72.14 tax excl.

A compact motor controller designed for the Pimoroni Yukon platform, capable of driving two DC motors or one bipolar stepper motor. The DRV8424P chip provides stable control with a supply voltage of 5 to 17 V and a current of up to 1.6 A continuous per channel. The module offers adjustable current limiting, thermal protection, and error detection. Pimoroni PIM693

24h
Available
Available quantity: 2
Kamami is the official distributor of Pimoroni modules and development kits. All products of this brand in our offer are original and come directly from the manufacturer.

Description

Dual Motor/Bipolar Stepper Module is a versatile motor driver module designed for projects based on the Pimoroni Yukon platform. It allows control of two brushed DC motors or one bipolar stepper motor, making it a highly flexible solution for a wide range of applications. The module is intended for hobbyist, educational, and semi-professional projects.


Thanks to the use of the DRV8424P dual H-bridge driver, precise and stable motor control is possible. The device supports a wide input voltage range from 5 V to 17 V, allowing easy adaptation to various power sources. Each channel can supply up to 1.6 A of continuous current and 2.24 A of peak current, which is sufficient for most popular motors. Built-in temperature sensors and fault detection enhance operational safety and protect the module from damage. Adjustable current limiting allows precise matching of parameters to a specific motor. Practical screw terminals greatly simplify installation and wiring. The module is fully assembled and requires no soldering, so it can be used immediately out of the box. It is ideal for robots, CNC machines, plotters, and other mechatronic projects.

Features

  • Driver: DRV8424P dual H-bridge
  • Support: 2 × brushed DC motor or 1 × bipolar stepper motor
  • Supply voltage: 5 to 17 V
  • Output current: up to 1.6 A continuous / 2.24 A peak per channel
  • Adjustable current limiting: 0.16 A to 2.24 A
  • Built-in temperature sensors and fault detection
  • Screw terminals for motor connection
  • Compatibility: Pimoroni Yukon
  • Dimensions: 24 × 20 × 13.7 mm
1202078

Data sheet

Output current
1,6 A
Number of channels
2
Supply voltage min
5 V
Supply voltages max
17 V
