Fermion HR8833 DC Motor Driver - two-channel controller for DC 10V/1.5A motors
ID: 562334
5902186312296
zł21.46
Tax included
zł17.45 tax excl.
Two-channel DC motor driver based on the HR9933 circuit. It allows you to control the movement of drives with a supply voltage of up to 10 V and power consumption up to 1.5 A. DFRobot DRI0040
Description
Dual-channel driver for DC motors that can control the movement of the drive with a supply voltage of up to 10 V and a current consumption of up to 1.5 A per channel. It uses the H HR8833 moastka system and is controlled by the PWM signal. It has a 5 V output, which allows for powering external modules, including e.g. a control board. Full documentation and examples of use are available on the product page.
Features
- Two channels to control the DC motor
- Power supply: DC 3.3 to 10 V
- Control signal level compatible 3.3V and 5V
- Maximum continuous operating current: 1.5 A per channel
- Speed control: PWM
- Working temperature: -20 to 85°C
- Dimensions: 18 x 13 mm

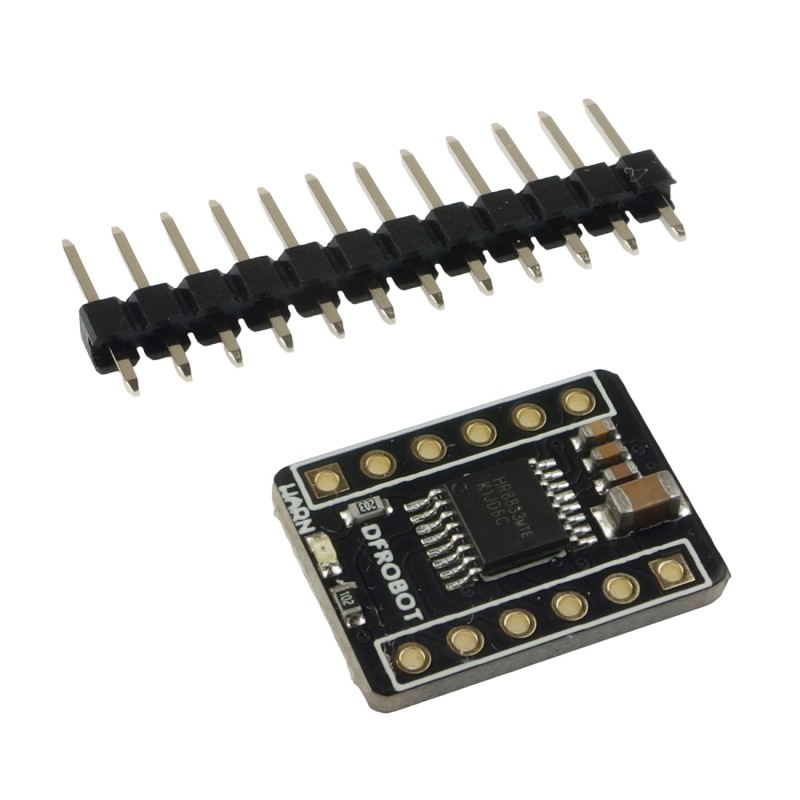

Kit contains
- Fermion HR8833 DC Motor Driver module
- 2 x 6-pin male goldpin connector
562334
Data sheet
- Output current
- 1,5 A
- Number of channels
- 2
- Supply voltage min
- 3,3 V
- Supply voltages max
- 10 V
