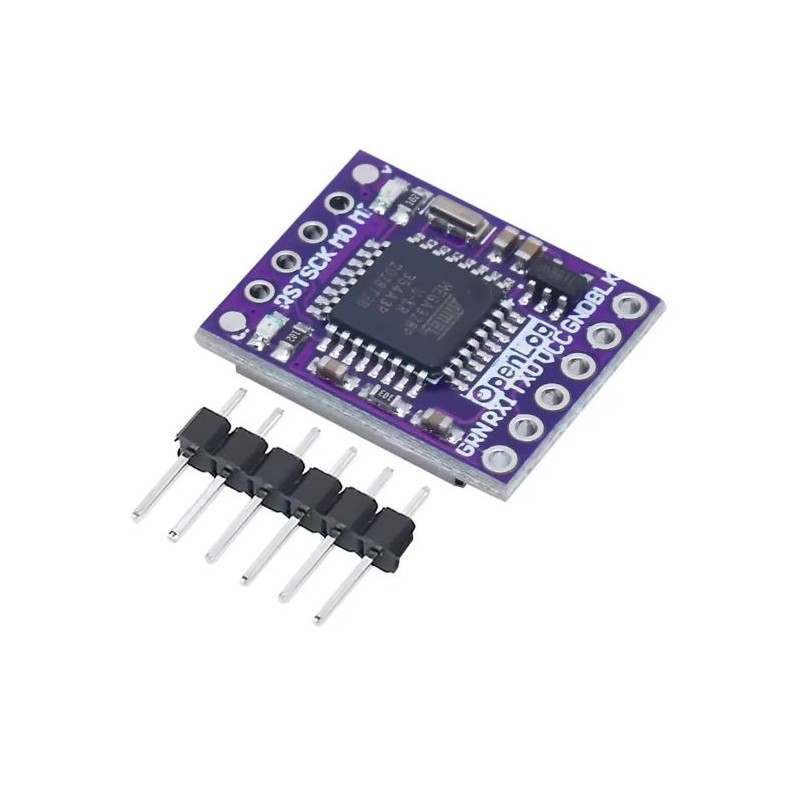

modOpenLog - UART Data Logger Module, ATmega328
ID: 1202962
zł17.61
Tax included
zł14.32 tax excl.
The OpenLog (WAVGAT) module is a compact UART data logger based on the ATmega328 microcontroller, designed to record serial data directly to a microSD card. This black-box–style solution enables standalone logging of text data without the need for a continuous connection to a computer.
Description
modOpenLog is a compact, open-source data logging module intended for recording data transmitted via the UART interface directly to a microSD (TF) card. The module is built around the ATmega328 microcontroller and operates as an independent black box, storing incoming data as text files without requiring a permanent connection to a host computer.
The module communicates via the RX/TX serial interface and requires only three connections for operation: VCC, GND, and RX. Data is saved using the FAT16/FAT32 file system, allowing the microSD card to be easily read on a computer.
Upon first startup with a new memory card, the module automatically creates a CONFIG.TXT file, where operating parameters such as the UART baud rate can be configured. Configuration does not require any additional tools – simple file editing on a computer is sufficient.
Two onboard LEDs indicate operating status and data write activity. The small dimensions (approx. 19.5 × 16 mm) and very low weight (approx. 2 g) make the modOpenLog suitable for mobile applications, including model making, drones, and telemetry systems.
The module supports a wide supply voltage range (3.3–12 V, recommended 3.3–5 V), features very low power consumption, and offers temperature resistance up to 105°C, enabling operation in demanding environmental conditions.
Applications:
- data logging from sensors and measurement modules,
- data logging from Arduino and compatible microcontrollers,
- telemetry systems and UAVs (flight data recording, black box),
- hobby and educational projects,
- electronic and research experiments,
- mobile UART data loggers,
- monitoring of processes and events in embedded systems.
Features
- Microcontroller: ATmega328
- Communication interface: UART (RX / TX)
- Supported storage: microSD / TF card
- File system: FAT16 / FAT32
- Maximum card capacity: up to 32 GB
- Data format: text file
- UART baud rate: 300 – 1,000,000 bps (configurable)
- Supply voltage: 3.3 V – 12 V (recommended 3.3–5 V)
- Current consumption:
- idle mode: approx. 2 mA
- data writing: up to 6 mA
- Status indication: 2 LEDs
- Operating modes: file creation, data append, command mode
- Temperature resistance: up to 105°C
- Dimensions: approx. 19.5 × 16 mm
- Weight: approx. 2 g
- Product type: electronic module / smart electronics
- Condition: new
- Customization support: yes (open-source)
