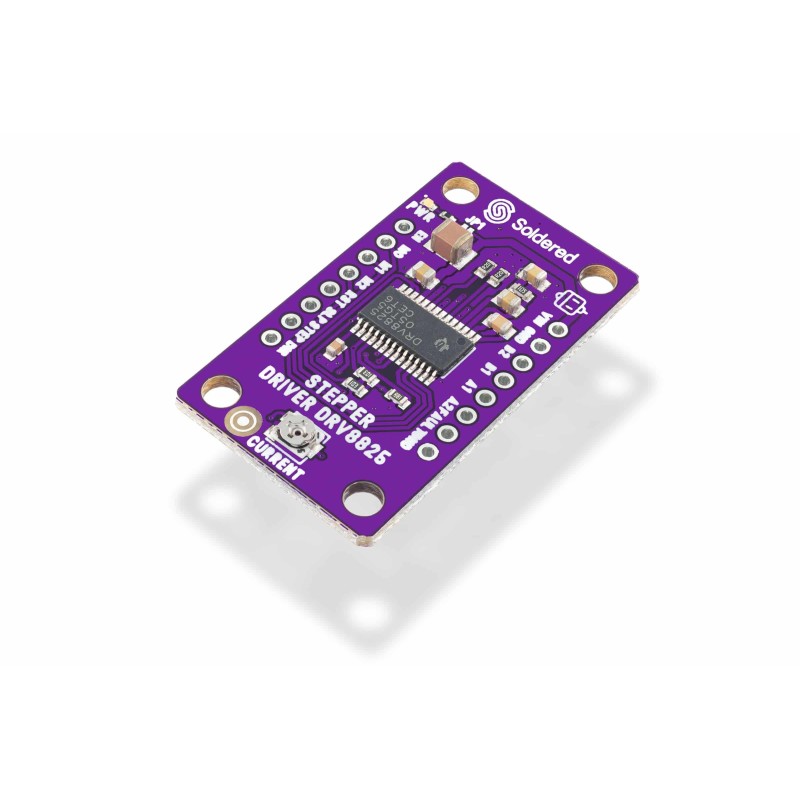

Main view
search
  • Main view
  • Top view
  • Bottom view
  • Goldpin header
ID: 1208233
zł37.11
Tax included

zł30.17 tax excl.

Driver designed for controlling bipolar stepper motors, equipped with the DRV8825 IC and adjustable current limiting. It supports microstepping down to 1/32 step and a current of up to 1.5 A per phase without a heatsink or up to 2.2 A per phase with a heatsink. Soldered 333000

24h
Available
Available quantity: 5

Description

The DRV8825 IC enables control of a bipolar stepper motor with microstepping down to 1/32 step, providing smoother motion and increased positioning resolution. The built-in potentiometer allows adjustment of the motor current limit, while overcurrent and thermal protection help protect the driver during operation. The module is compatible with 3.3 V and 5 V logic levels.

The motor supply voltage ranges from 8.2 V to 45 V, while the maximum current is 1.5 A per phase without a heatsink and 2.2 A per phase when a heatsink is used. The 2.54 mm pin pitch allows the board to be used in prototype circuits. The driver can be used in 3D printers, CNC machines, robots, and mechanisms requiring precise stepper motor positioning. The board measures 38 x 22 mm.

Features

  • Driver IC: DRV8825
  • Supported motors: bipolar stepper motors
  • Motor supply voltage: 8.2 V to 45 V
  • Maximum current per phase without heatsink: 1.5 A
  • Maximum current per phase with heatsink: 2.2 A
  • Maximum microstepping resolution: 1/32 step
  • Adjustable current limiting
  • Current adjustment via potentiometer
  • Overcurrent protection
  • Thermal protection
  • Compatible with 3.3 V and 5 V logic levels
  • Pin pitch: 2.54 mm
  • Breadboard-compatible design
  • LEGO-compatible mounting holes
  • Dimensions: 38 x 22 mm
  • Arduino support
  • MicroPython module available
  • Open-source design
  • Manufactured in Croatia, EU

Kit includes

  • Soldered Stepper Motor Driver DRV8825 - 1 pc.
  • Pin header - 1 pc.
1208233

Data sheet

Output current
1,5 A
Number of channels
1
Supply voltage min
8,2 V
Supply voltages max
45 V
