New products
zł1,459.42 tax excl.
5G/4G/3G and GNSS module with SIM8200EA-M2 chip. It allows you to make phone calls, SMS support, cloud communication and has support for GPS, Galileo, BeiDou, Glonass and QZSS. Waveshare SIM8200EA-M2 5G for Jetson Nano (EU)
Free shipping
free shipping in Poland for all orders over 500 PLN
Same day shipping
If your payment will be credited to our account by 11:00
14 days for return
Each consumer can return the purchased goods within 14 days
Description
5G/4G/3G communication and GNSS positioning module designed to work with the NVIDIA Jetson Nano kit. It is based on the Qualcomm Snapdragon X55 chip, which guarantees multi-band frequency support, so that the device can be used in countries and regions such as China, Japan, South Korea, Europe or the Middle East. It supports 5G SA or NSA networks and is backwards compatible with 4G and 3G networks. SIM8200EA-M2 supports positioning within GPS, GLONASS, Beidou, Galileo and QZSS systems. The module allows you to make phone calls, support SMS, MMS, mail, TCP / IP, IPV4, IPV6, Multi-PDP, FTP, FTPS, HTTP, HTTPS, MQTTS, DNS, SSL3.0. The board has a 40-pin connector for connecting the module to Jetson Nano and a 3.5 mm audio connector, SIM card slot, USB connector for communication with the SIM8200EA-M2 using AT commands and connectors for connecting antennas. The base board has a standard M2 connector, which enables connection to various 4G or 5G communication modules with an M2 connector. Full documentation is available on the product Wiki page.
1. M2 Connector | 10. Reset |
2. USB 3.1 | 11. Power switch |
3. Jack 3,5 mm | 12. Power circuit |
4. 40-pin connector | 13. Audio circuit |
5. Fan connector | 14. Power supply jumper |
6. Nano SIM socket | 15. PWR jumper |
7. Power supply 5V 3A | 16. Reset jumper |
8. Network indicator | 17. Audio IN/OUT |
9. Power indicator |
Features
- Compatible with NVIDIA Jetson Nano
- SIMCom 5G SIM8200EA-M2 modem with Qualcomm SDX55 chip
- Frequency band:
- 5G NR Sub-6G n1, n2, n3, n5, n7, n8, n12, n20, n28, n38, n40, n41, n48, n66, n71, n77, n78
- LTE-FDD B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B66, B71
- LTE-TDD B34, B38, B39, B40, B41, B42, B43, B48
- WCDMA B1, B2, B3, B4, B5, B8
- GNSS GPS, GLONASS, Beidou, Galileo and QZSS
- Data transfer rate:
- Sub-6G 4 Gb/s (Download) and 500 Mb/s (Upload)
- LTE 2 Gb/s (download) and 200 Mb/s (upload)
- HSPA 42 Mb/s (Download) and 5.76 Mb/s (Upload)
- WiFi standard IEEE802.11b / g / n, 2.4GHz up to 300 Mbps with WEP, WPA, WPA2 encryption
- 1x M.2 connector, supplied with SIM8200EA-M2 module by default, supports other 5G modules
- Supports phone calls, phone calls, SMS, TCP / IP, IPV4, IPV6, Multi-PDP, FTP, FTPS, HTTP, HTTPS, MQTTS, DNS, SSL3.0
- Built-in USB interface to test AT commands, get GPS positioning data
- 1.8V / 3V nano SIM card slot
- Built-in 3.5mm audio jack
- Signaling LEDs
- Control by AT commands
- 6 x IPEX-4 antenna connector
- Operating systems: Linux, Windows, Android
- Dimensions: 100 x 79 mm
Kit contains
- Base board
- SIM8200EA-M2
- 5 x external 5G antenna
- External GPS antenna
- USB 3.0 adapter
- USB 3.0 cable
- 5V 3A power supply
- Radiator
- A set of screws
You might also like
NVIDIA development kit with the ARM Cortex A57 1.43GHz CPU chip and the Maxwell graphics system consisting of 128 cores supporting CUDA technology. The module has a DDR4 4GB RAM memory. NVIDIA Jetson Nano Development Kit rev. B01 945-13450-0000-100
4G/3G/2G communication and GNSS positioning module. It allows you to make phone calls, support SMS, MMS, e-mail, TCP, UDP, DTMF, HTTP, FTP and has support for GPS, BeiDou, Glonass, LBS. Waveshare SIM7600G-H 4G for Jetson Nano
Industrial router with SIMCom 5G SIM8200EA-M2 module. It supports 5G SA or NSA networks and is backwards compatible with 4G and 3G networks. It has an RS232 and RS485 output. Waveshare SIM8200EA-M2 5G Router (EU)
No product available!
Other products in the same category (16)

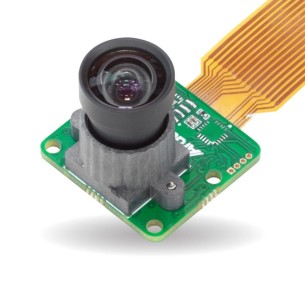

Camera module designed for NVIDIA Jetson Nano/Xavier NX. The camera is equipped with a Sony IMX477 sensor and focus controlled by the I2C interface. ArduCAM B0273
