TPA3116 50W audio amplifier
ID: 1197023
zł43.90
Tax included
zł35.69 tax excl.
Digital audio amplifier dedicated to woofers. It has one channel with a power of 50 W each and can work with speakers from 4 to 8 Ω. It is powered with the voltage from 8 to 25 V
Description

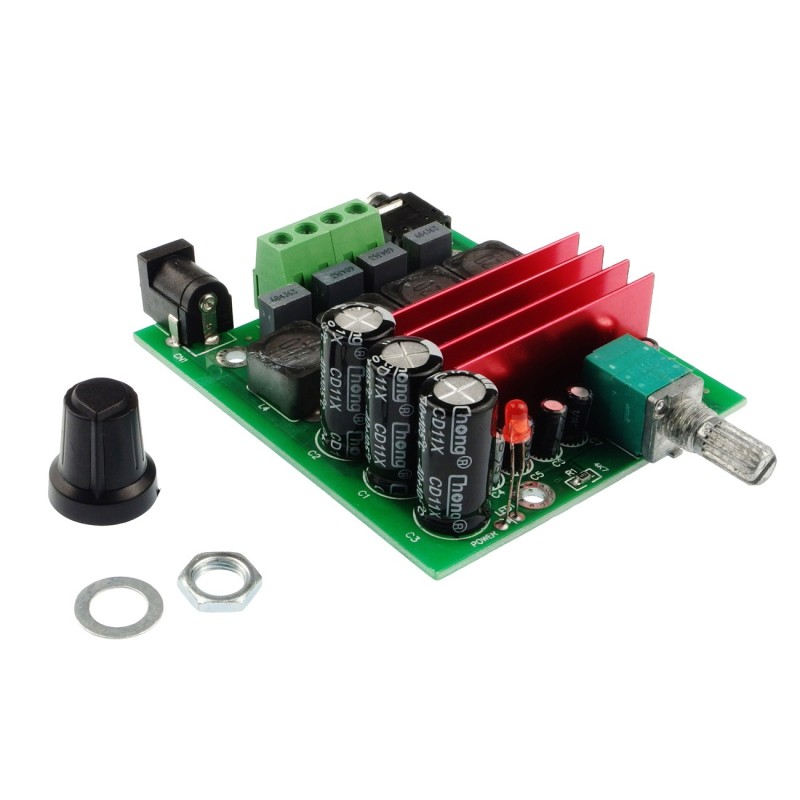

Class D digital audio amplifier based on the TPA3116 chip. It has one 50 W channel. The user can connect speakers with an impedance of 4 to 8 Ω via the screw connection. The module is powered with the voltage from 8 to 25 V through the DC 5.5 mm connector. It is equipped with a 3.5 mm jack audio input and a potentiometer to adjust the volume level. It can be used as an element of a home audio system.
Features
- TPA3116 Class D audio amplifier
- Power: 50 W
- Speaker impedance: 4 to 8 Ω
- Output on a screw connection
- Input on the Jack 3.5 mm connector
- Transmission frequency: 20 Hz to 20 kHz
- Power supply: DC 8 to 25 V (DC 5.5mm connector)
- Dimensions: 96 x 61 x 22 mm
1197023
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
