RP2350 Touch LCD 1.85 – Development Board with Round Touch Display (Standard Version) - Waveshare 33301
ID: 1202591
zł127.62
Tax included
zł103.76 tax excl.

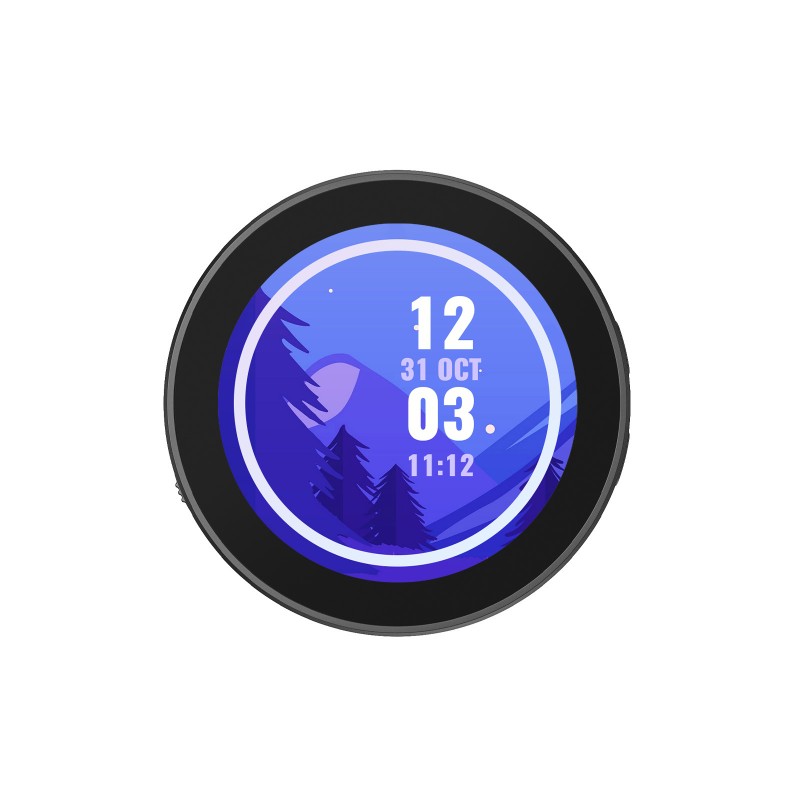

Development board based on the RP2350A microcontroller with a 1.85-inch round capacitive LCD touch display at 360 x 360 resolution and 65K colors, supporting ARM Cortex-M33 and RISC-V architectures, designed for user interfaces and embedded systems. Waveshare RP2350-Touch-LCD-1.85C
Description
RP2350 Touch LCD 1.85 in the standard version is a compact, highly integrated development board designed by Waveshare for building modern user interfaces, IoT devices, and embedded systems. The onboard RP2350A microcontroller, developed by Raspberry Pi, features a unique dual-core and dual-architecture design, enabling operation using either two ARM Cortex-M33 cores or two Hazard3 RISC-V cores with clock frequencies of up to 150 MHz.
The board integrates a round 1.85-inch capacitive IPS LCD with a resolution of 360 x 360 pixels and a 65K color depth. The display provides wide viewing angles, good readability, and smooth touch operation handled via an I2C interface with interrupt support, supporting intuitive graphical user interface development.
The board is equipped with 16 MB of Flash memory, a microSD card slot, an RTC chip, an audio codec, a microphone, and USB, UART, and I2C communication interfaces. The standard version does not include a speaker box or a battery, allowing easy integration into projects with a custom power supply or dedicated enclosure.

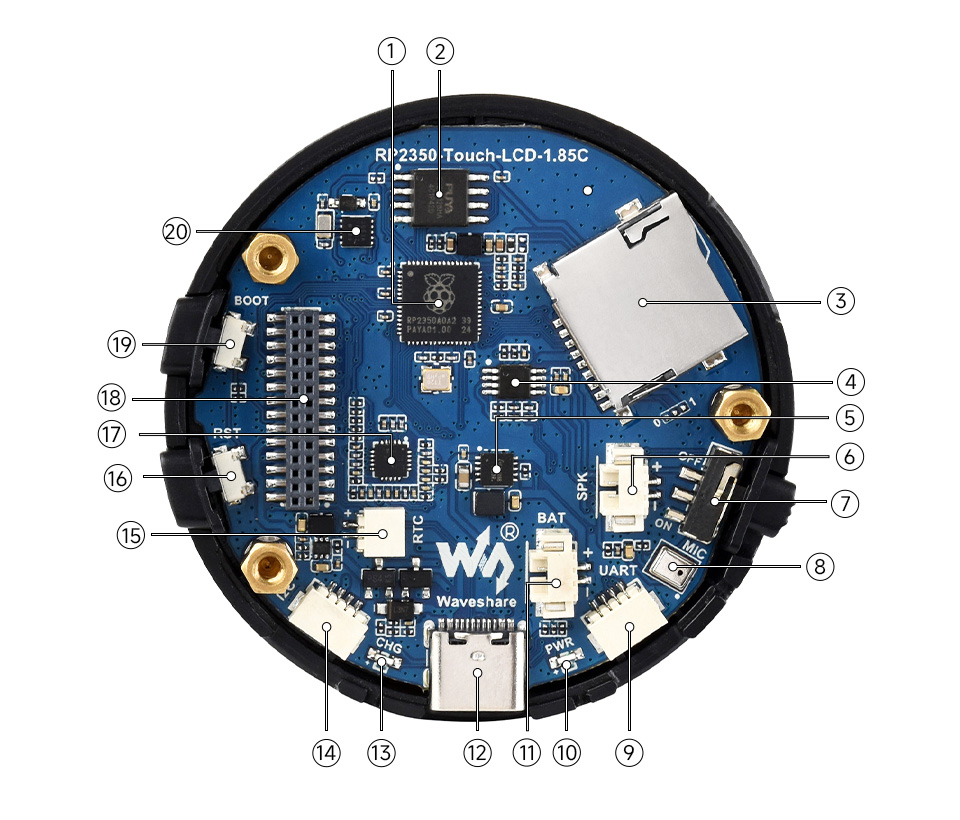

- RP2350A -Dual-core and dual-architecture design, up to 150 MHz operating frequency
- 16MB NOR-Flash
- TF card slot
- Amplifier chip
- Batt charging management chip
- Speaker header
- Batt power supply ON/OFF
- Microphone
- UART header
- Power indicator
- MX1.25 Batt header - for 3.7V Lithium Batt, supports charging and discharging, with charging current of up to 1A
- USB Type-C port - for programming, USB 1.1 with device and host support
- Charge indicator - Lithium Batt charge indicator, lights up when charging, off when fully charged (the light status is uncertain when the Batt is not connected)
- 12C header - connecting with internal chip, only supports the 12C peripherals and cannot be mapped to other functions
- RTC Batt header - for connecting rechargeable RTC Batt
- RESET button
- ES8311 - low-power audio codec chip

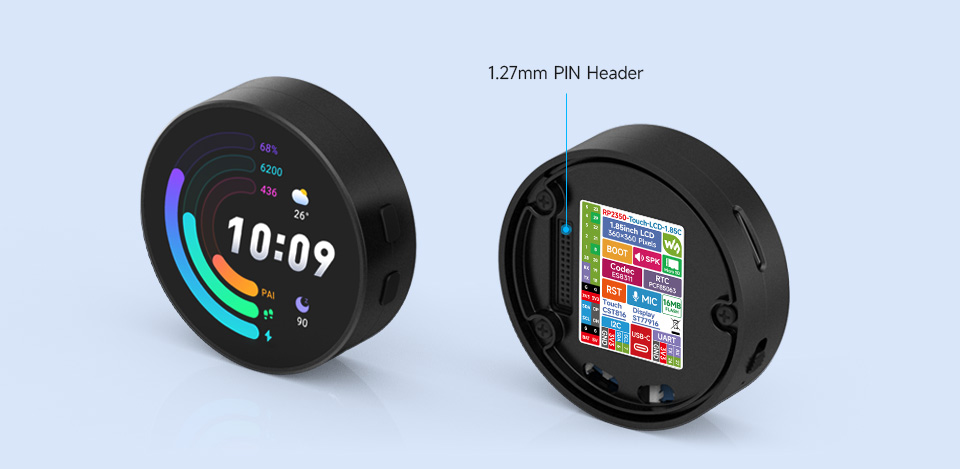

- 1.27mm pin header - Reserved 28PIN header, adapting GPIO and other function pins
- BOOT button - press it when resetting to enter download mode
- RTC chip - PCF85063 RTC chip

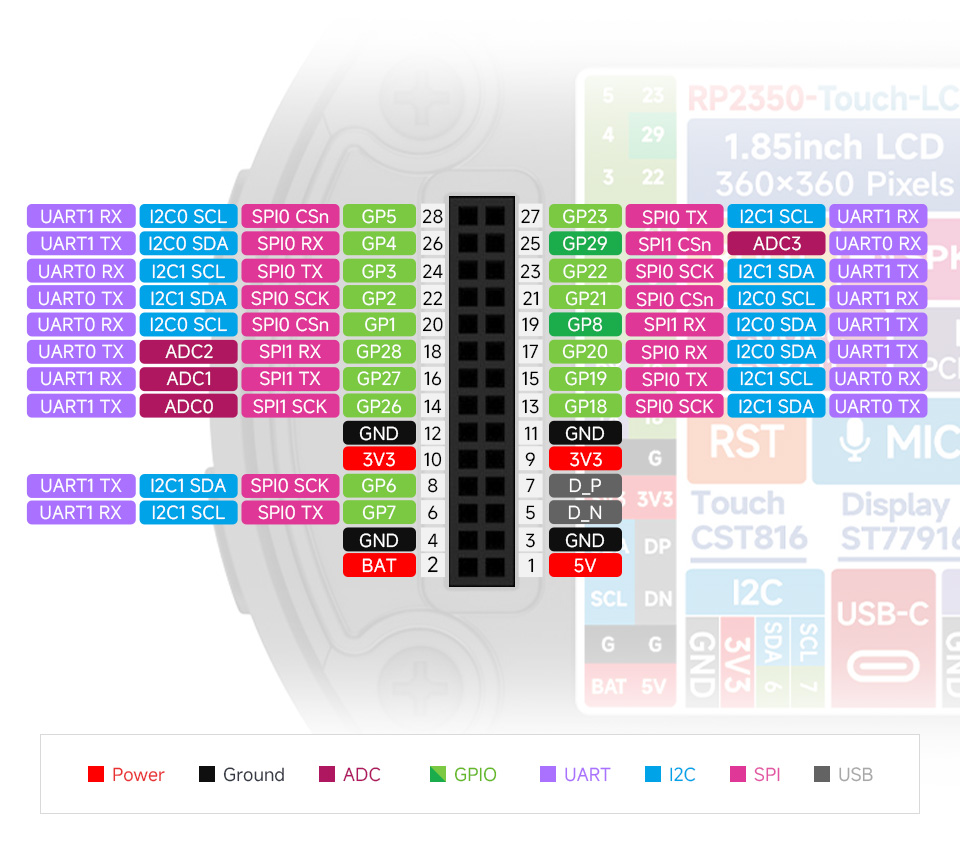

Pin definition
Features
- Microcontroller: RP2350A
- Architecture: dual-core, ARM Cortex-M33 or Hazard3 RISC-V
- Clock frequency: up to 150 MHz
- RAM: 520 KB SRAM
- Flash memory: 16 MB NOR Flash
- Display: capacitive IPS LCD
- Display size: 1.85 inch
- Resolution: 360 x 360
- Color depth: 65K
- Touch interface: I2C with interrupt support
- USB: USB 1.1 device and host
- GPIO: 18 multifunctional pins
- Interfaces: 2 x SPI, 2 x I2C, 2 x UART
- ADC: 4 x 12-bit
- PWM: 12 channels
- PIO: 12 programmable state machines
- RTC: PCF85063
- Audio codec: ES8311
- Card slot: microSD (TF)
- Battery connector: MX1.25 2-pin
- Battery voltage: 3.7 V
- USB port: USB Type-C
- Temperature sensor: built-in
- Supported environments: C/C++, MicroPython, Arduino IDE
Kit includes
- 1x RP2350-Touch-LCD-1.85C development board
- 2x SH1.0 4-pin cable ~100 mm
- 1x 8 Ω 2 W speaker
Note!
3.7 V lithium battery is not included
The set does not include a speaker enclosure
1202591
Data sheet
- Microcontroller
- RP2350A
- Flash memory
- 16 MB
- Number of I/O
- 18
- Ethernet
- none
- WiFi/BT module
- No
- Bluetooth module
- No
- MicroSD slot
- Yes
- Length
- 17 mm
- Width
- 58 mm
- USB connector type
- USB type C
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
