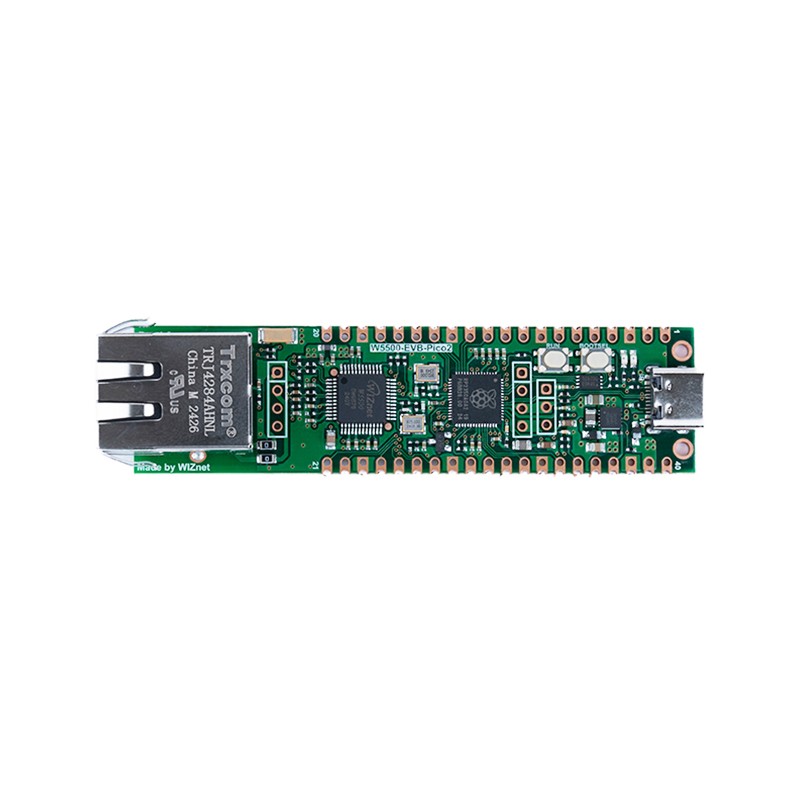

Main view
search
  • Main view
  • Angled view
ID: 1207154
zł61.66
Tax included

zł50.13 tax excl.

Development board based on the RP2350 microcontroller combines a dual-core Arm Cortex-M33 processor with the W5500 Ethernet controller featuring a hardware TCP/IP stack. The board maintains compatibility with Raspberry Pi Pico 2 while adding a 10/100 Mb/s Ethernet interface with an RJ45 connector and optional Power over Ethernet support using the WIZPoE-P1 module. It is designed for IoT applications, industrial automation, network communication systems, and embedded devices requiring reliable wired Ethernet connectivity. WIZnet W5500-EVB-Pico2

5 weeks
Awaiting delivery
Kamami is the official distributor of WIZnet network modules for Raspberry Pi Pico. All products of this brand in our offer are original and come directly from the manufacturer.

Description

The WIZnet W5500-EVB-Pico2 development board is designed for projects requiring wired Ethernet communication and the capabilities of the RP2350 microcontroller. The hardware combines a dual-core Arm Cortex-M33 processor running at up to 150 MHz with the W5500 Ethernet controller featuring a hardware TCP/IP stack. The board maintains mechanical compatibility and most of the Raspberry Pi Pico 2 pinout, allowing the use of existing accessories and software libraries. It is equipped with a USB Type-C connector, an RJ45 Ethernet port with an integrated Ethernet PHY, and dual 20-pin GPIO headers.

W5500 Ethernet controller with hardware TCP/IP support

The W5500 controller processes network protocols in hardware, reducing the workload of the microcontroller during Ethernet communication. It supports TCP, UDP, ICMP, IPv4, ARP, IGMP, and PPPoE protocols, provides eight simultaneous hardware sockets, and includes 32 kB of memory dedicated to TX/RX buffers. The integrated 10/100 Mb/s Ethernet interface supports Auto Negotiation and Full and Half Duplex operating modes, ensuring reliable network communication for IoT applications and embedded systems.


The board can be expanded with the optional dedicated WIZPoE-P1 PoE module, enabling power delivery through the Ethernet cable in accordance with the IEEE 802.3af standard.


RP2350 microcontroller compatible with Raspberry Pi Pico 2

The RP2350 microcontroller features dual Arm Cortex-M33 cores running at up to 150 MHz, 520 kB of SRAM, and integrated 16 Mbit Flash memory. The device also incorporates advanced security features, including Secure Boot, OTP memory, and Arm TrustZone technology, as well as three Programmable I/O (PIO) blocks, UART, I²C, SPI, PWM interfaces, and a 12-bit ADC. Compatibility with Raspberry Pi Pico 2 simplifies migration of existing projects while allowing the use of compatible expansion boards, software libraries, and development tools.

The manufacturer provides comprehensive technical documentation, schematics, pinout diagrams, 3D models, and example projects for C/C++, Ethernet, LwIP, AWS IoT Core, and Microsoft Azure, making it easier to start developing applications with the board.

Features

  • RP2350 microcontroller
  • Dual-core Arm Cortex-M33 processor up to 150 MHz
  • Integrated 16 Mbit Flash memory
  • 520 kB SRAM
  • W5500 Ethernet controller
  • Hardware TCP/IP stack
  • TCP, UDP, ICMP, IPv4, ARP, IGMP, and PPPoE protocol support
  • Support for 8 independent hardware sockets
  • 32 kB TX/RX buffer memory
  • 10/100 Mb/s Ethernet interface
  • RJ45 connector with integrated Ethernet PHY
  • Auto Negotiation support
  • Full and Half Duplex operation
  • Up to 48 GPIO pins
  • Up to 8 ADC inputs
  • 12-bit 500 kS/s ADC
  • 2 × UART
  • 2 × I²C
  • 2 × SPI
  • 16 PWM channels
  • 3 PIO blocks with 12 state machines
  • USB Type-C interface for power and programming
  • SWD debugging interface
  • Raspberry Pi Pico 2 compatible
  • C/C++ support
  • LwIP support
  • Optional PoE support via the WIZPoE-P1 module
  • AWS IoT Core Qualified
1207154

Data sheet

Microcontroller
RP2350
Flash memory
2 MB
Number of I/O
48
Ethernet
100Mb x1
WiFi/BT module
No
Bluetooth module
No
MicroSD slot
No
Length
51mm
Width
21 mm
USB connector type
USB type C
