Makerbase DUAL FOC PLUS - dual-channel BLDC brushless motor controller 12-24V, 12A
ID: 1187437
zł121.30
Tax included
zł98.62 tax excl.
A dual-channel BLDC controller capable of controlling two motors simultaneously using precise FOC vector control. Equipped with the EG Driver Chip, an INA181A2 amplifier, and a 1 mΩ sensing resistor, it provides accurate current measurement and stable operation at peak currents up to 12 A. It supports a variety of encoders and sensors, and its compatibility with ESP32 modules makes it easy to integrate into projects. Makerbase DUAL FOC PLUS
Description
Makerbase SimpleFOC Dual FOC PLUS is an advanced dual-channel BLDC driver board designed for precise Field Oriented Control (FOC) with current loop. The device allows simultaneous control of two brushless motors, making it an ideal solution for robotics projects such as walking robots, balancing platforms, gimbals, or educational systems for learning FOC. The board is designed to work with ESP32 modules, offering a compatible interface and easy integration into both hobby and professional systems. With support for multiple types of encoders and sensors, including Hall sensors and magnetic encoders (SPI/I2C/ABI/UVW/Analog), the user gains great flexibility in implementing various applications.
The PLUS version is based on the improved EG Driver Chip with medium-power MOS transistors, providing significantly higher performance and operational stability. The integrated INA181A2 operational amplifier enables precise real-time current measurement, and the 1 mΩ shunt resistor allows current detection up to ±33A. Thanks to this, the board offers accurate control of torque, speed, and motor position, improving the overall quality and precision of the system. The module supports an input voltage range of 12 to 24 V DC and allows peak currents of up to 12 A.
DUAL FOC PLUS is a low-cost and energy-efficient solution while still offering high functionality. With its compact size, the module can be easily integrated into small mechanical designs. The robust architecture and compatibility with popular programming environments make it an excellent choice for robot builders, mobile device designers, and automation enthusiasts. The combination of ease of use, high performance, and versatile capabilities makes the Makerbase DUAL FOC PLUS one of the best controllers for BLDC-based projects.
Features
- Control capability: 2 BLDC motors
- Driver Chip: EG Driver Chip + medium-power MOS
- Integrated operational amplifier: INA181A2
- Supply voltage: DC 12–24 V
- Peak current: up to 12 A
- Supported motors: three-phase BLDC (gimbal motors and medium-power model motors)
- Sensor interfaces: Hall / magnetic encoder (SPI/I2C/ABI/UVW/Analog)
- Control modes: torque, speed, and position
- Current measurement: ±33 A in real time (1 mΩ shunt resistor)
- Compatible with ESP32 modules
- Dimensions: 56.3 x 39.7 x 1.6 mm

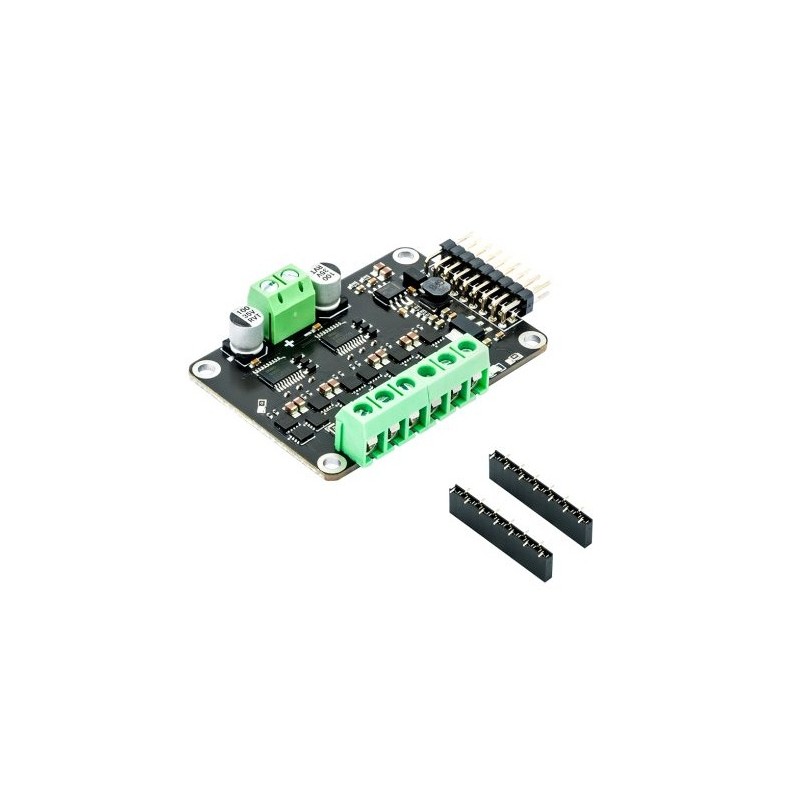

Kit contains
- MKS DUAL FOC PLUS
- 2 × 13-pin female connectors
1187437
Data sheet
- Output current
- 12 A
- Number of channels
- 2
- Supply voltage min
- 12 V
- Supply voltages max
- 24 V
