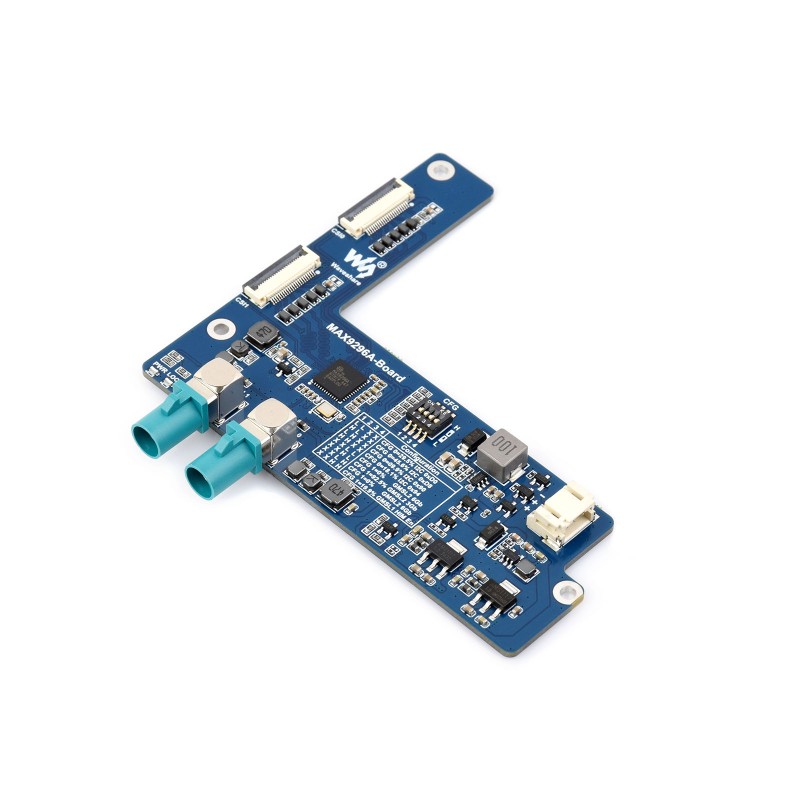

  • Front view - GMSL outputs
  • Angled view
  • Board dimensions
ID: 1203092
zł336.95
Tax included

zł273.94 tax excl.

Dual-channel GMSL camera adapter based on the MAX9296A deserializer, enabling connection of up to two GMSL cameras to Raspberry Pi 5 and Jetson Orin Nano/NX, intended for high-speed and low-latency video transmission. Waveshare 33623 MAX9296-GMSL-DESER-MODULE

6 weeks
Awaiting delivery
Kamami is the official distributor of Waveshare displays, accessories and modules.

Description

The 2-channel GMSL camera adapter Waveshare 33623 is designed for systems requiring high-bandwidth and low-latency video transmission from GMSL cameras. The board is based on the MAX9296A deserializer from Maxim Integrated (ADI), developed for automotive and industrial applications where stability, electromagnetic interference resistance, and synchronization of multiple video streams are critical.

The module allows simultaneous connection of up to two GMSL cameras, supporting both GMSL2 and GMSL1 standards via software configuration. Transmission is carried out over a single coaxial or twisted-pair cable, simplifying wiring and enabling long-distance signal transmission while maintaining low latency.

The adapter works with Raspberry Pi 5 as well as NVIDIA Jetson Orin Nano and Jetson Orin NX platforms, enabling use in projects such as autonomous systems, machine vision, driver assistance systems, video monitoring, and smart factory solutions. Video output is provided through two 22-pin CSI connectors, allowing direct integration with embedded platforms without additional image controllers.

The use of GMSL (Gigabit Multimedia Serial Link) technology enables reliable transmission of video, audio, and control data with high resistance to electromagnetic interference, which is essential in industrial and automotive environments.


Features

  • Deserializer chip: MAXIM (ADI) MAX9296A
  • Number of GMSL channels: 2
  • Supported standards: GMSL2, compatible with GMSL1
  • Supported platforms: Raspberry Pi 5, Jetson Orin Nano, Jetson Orin NX
  • Supported serializers: MAX9295, MAX96717, MAX96705
  • Supported GMSL cameras: ISX031

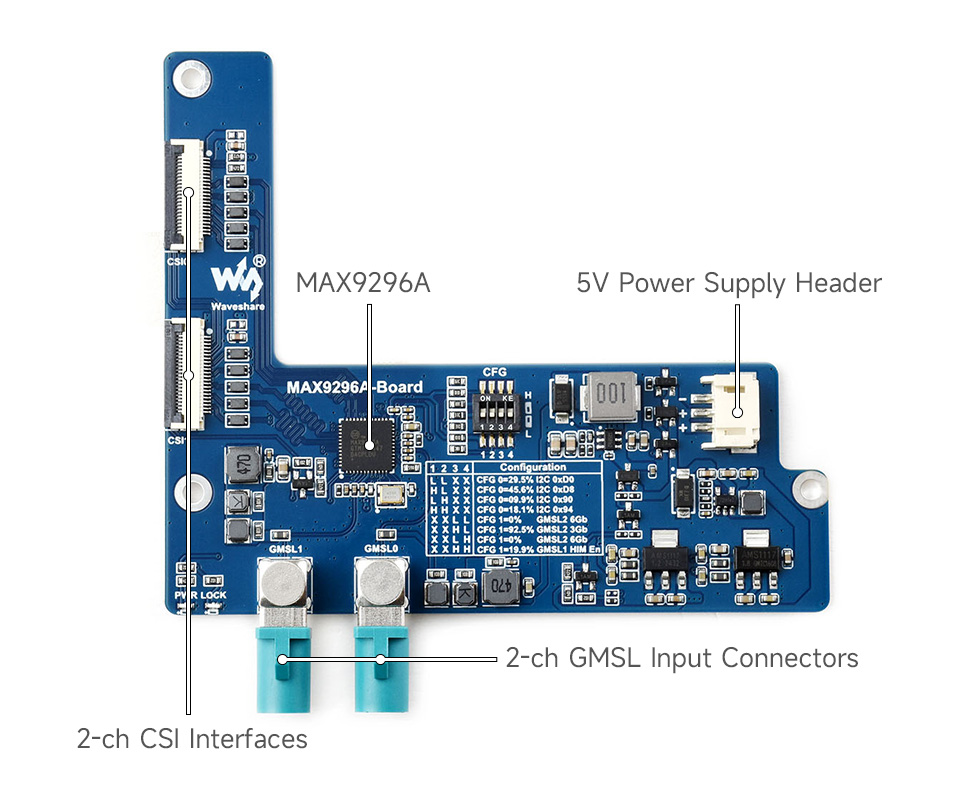

  • GMSL input: 2 x MATE-AX FAKRA Z connectors
  • Video output: 2 x 22-pin CSI connectors
  • Power supply: 5 V
  • Applications: autonomous robots, machine vision, ADAS, video monitoring, smart manufacturing
  • Weight: 0.044 kg

Kit includes

  • MAX9296-GMSL-DESER-MODULE board
  • FFC 22-pin cable ~100 mm x2
  • PH2.0 3-pin cable
  • Screws pack
