IMX219-130 Camera – 8 MP, 130° FOV, for Jetson Nano / Xavier NX - Seeed Studio 114992262
search
  • IMX219-130 Camera – 8 MP, 130° FOV, for Jetson Nano / Xavier NX - Seeed Studio 114992262
ID: 1200461
zł106.12
Tax included

zł86.28 tax excl.

The IMX219-130 camera with a 130° field of view and 8 MP resolution, designed for Jetson Nano and Xavier NX, enables wide field image capture in machine vision and AI projects. Equipped with a MIPI interface, 1.88 mm lens, and IR filter, it provides high image quality with low distortion.

4 weeks
On request
Kamami is the official distributor of Seeed Studio modules and development kits. All products of this brand in our offer are original and come directly from the manufacturer.

Description

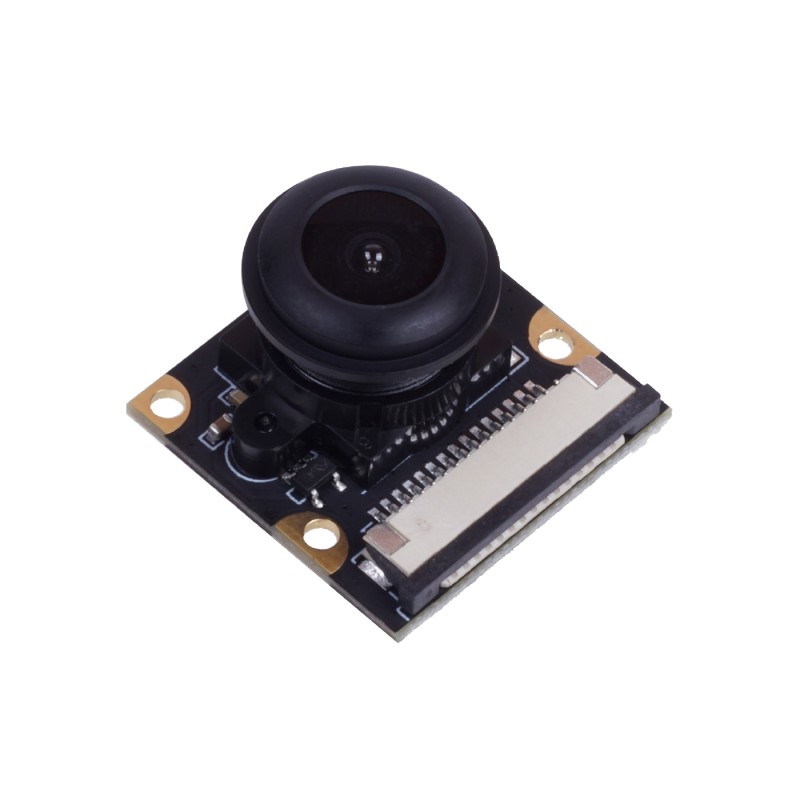

The IMX219-130 camera with a Sony IMX219 image sensor offers 8 MP resolution and a wide 130° field of view, allowing larger areas to be captured in a single frame. Compatible with NVIDIA Jetson Nano and Xavier NX developer kits, it is used in computer vision projects, analytical systems, and mobile robotics.

The 1.88 mm fixed-focus lens with 4E+IR construction provides a clear image with low distortion (<7.6%), while the integrated IR filter ensures accurate color reproduction. The module supports video transmission at QSXGA resolution at 30 fps, communicates via the MIPI CSI-2 interface, and operates over a wide temperature range.

Properties

  • Sensor: Sony IMX219
  • Resolution: 8 MP (3280 × 2464)
  • Sensor format: 1/4 inch
  • Pixel size: 1.12 × 1.12 μm
  • Lens: fixed-focus, focal length 1.88 mm
  • Lens construction: 4E+IR
  • Field of view (FOV): 130° (diagonal)
  • Distortion: <7.6%
  • Aperture: f/1.8
  • Max. frame rate: 30 fps (QSXGA)
  • Output format: 8/10-bit RGB RAW
  • Interface: 15-pin MIPI connector (1.0 mm)
  • Power supply: 3.3 V (pin 15)
  • IR filter: 650 ±10 nm
  • Focus range: from 30 cm to ∞
  • S/N ratio: 39 dB
  • Dynamic range: 69 dB
  • Sensitivity: 600 mV/Lux-sec
  • Module size: 25 × 24 × 14 ±0.5 mm
  • Operating temperature: from -20°C to 70°C

Set includes

  • 1 × IMX219-130 8 MP camera
  • 1 × 150 mm FPC cable
1200461

Data sheet

Resolution
8MPx
Interface
MIPI
Sensor
IMX219
IR filter
Yes
Lens assembly
none
