ISG1321 camera module mono 1.38 MP with global shutter and 95.5° wide-angle lens - Waveshare 32175
ID: 1201216
zł105.63
Tax included
zł85.88 tax excl.
ISG1321 is an industrial camera module with a global shutter, wide field of view and high refresh rate, dedicated to vision systems, high-speed motion capture and inspection tasks. Equipped with a MIPI-CSI interface, it enables integration with modern computing platforms.
Description

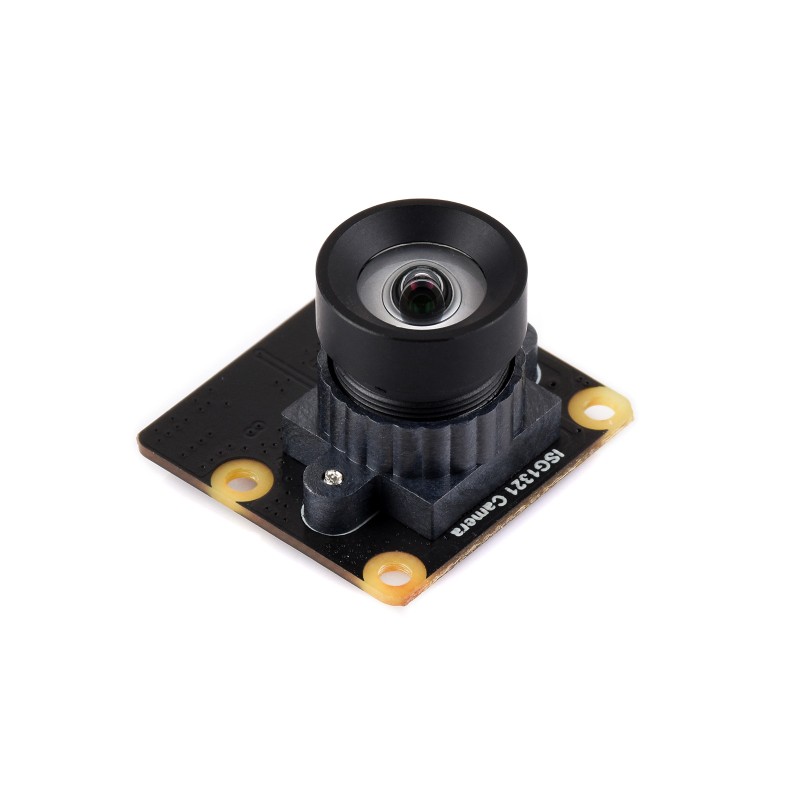

The ISG1321 module is a compact mono CMOS camera with a 1.38 MP sensor (1280 × 1080 px) and a global shutter, enabling simultaneous exposure of all pixels. This makes it suitable for precise capture of fast-moving objects without distortion effects. Equipped with a 2-lane MIPI-CSI interface and a wide-angle lens with a 95.5° field of view and low distortion (<1%), the camera is used in vision systems, industrial inspection and code reading in logistics.
The lens with a focal length of 2.88 mm and aperture F2.4 enables manual focus adjustment, and a high refresh rate of 120 fps allows detailed capture of dynamic scenes. The module is compatible with boards equipped with a MIPI-CSI connector, such as Luckfox Pico Zero.
Properties
- ISG1321 CMOS sensor with mono 1.38 MP matrix (1280 × 1080)
- Global shutter ensuring no distortion during motion
- MIPI-CSI 2-lane interface
- Refresh rate up to 120 fps
- 95.5° wide-angle lens with 2.88 mm focal length
- Aperture F2.4, manual focus adjustment
- Optical distortion <1%
- Sensor size 1/4"
- Applications: industrial vision systems, logistics, code reading, optical inspection
Included
- ISG1321 camera module ×1
- FFC 22PIN cable (approx. 200 mm) ×1
1201216
Data sheet
- Resolution
- 1280 x 1080 px
- Interface
- MIPI CSI-2
- Sensor
- Inny
- IR filter
- No
- Lens assembly
- none
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
