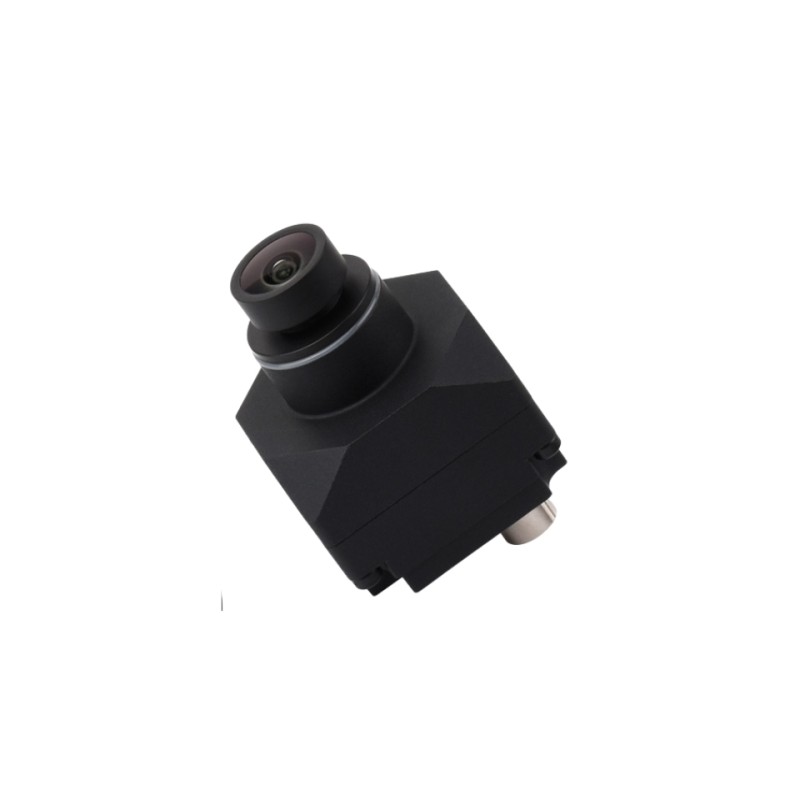

ISX031 GMSL Camera H190 3MP IP67 - GMSL2 camera module - Waveshare 33903
ID: 1204590
zł1,923.52
Tax included
zł1,563.84 tax excl.
3 MP camera module with ISX031 image sensor, GMSL2 interface and IP67-rated enclosure, designed for automotive and vision systems. Includes 2 m Fakra cable. Waveshare ISX031-GMSL-Camera-H190
Description
Camera module based on the ISX031 image sensor with a resolution of 3 MP, equipped with a GMSL2 interface and MAX96717 serializer. The design enables long-distance image transmission with high bandwidth, making it suitable for vision systems and automotive applications. The CMOS sensor ensures stable operation over a wide temperature range and maintains high image quality in dynamic lighting conditions.
The built-in ISP processor performs real-time image processing, including noise reduction and color correction. A dynamic range of up to 120 dB allows capturing details in both bright and dark areas of the scene. The optical system uses a multi-element glass lens structure to reduce distortion and improve image sharpness.
The IP67-rated enclosure allows operation in outdoor environments and applications requiring resistance to dust and water. The wide field of view enables image capture in applications requiring coverage of large areas, such as driver assistance systems, mobile robotics and surveillance systems.
Features
- Sensor: ISX031 CMOS 2.95 MP
- Resolution: 1920 x 1536
- Sensor size: 1/2.4"
- Pixel size: 3.0 µm x 3.0 µm
- Field of view: 197.0° x 162.3°
- Focal length: 1.14 mm
- Aperture: F2.0
- Built-in ISP
- Frame rate: 30 fps at 1920 x 1536
- Dynamic range: 120 dB
- Output format: YUV422 8-bit
- Serializer: MAX96717
- Interface: GMSL2
- Connector: Fakra Z-coded
- GMSL2 bandwidth: 6 Gbps
- Supply voltage: 9 - 12 V PoC
- Operating temperature: -40 ~ 85°C
- Protection rating: IP67
- Weight: 0.098 kg
Kit includes
- ISX031-GMSL-Camera-H190 module x1
- Fakra Z-Coded Dual Female RG174 cable 2 m x1
1204590
Data sheet
- Resolution
- 1920 x 1536 px
- Interface
- GMSL2
- Sensor
- Sony ISX031
- IR filter
- No
- Lens assembly
- none
