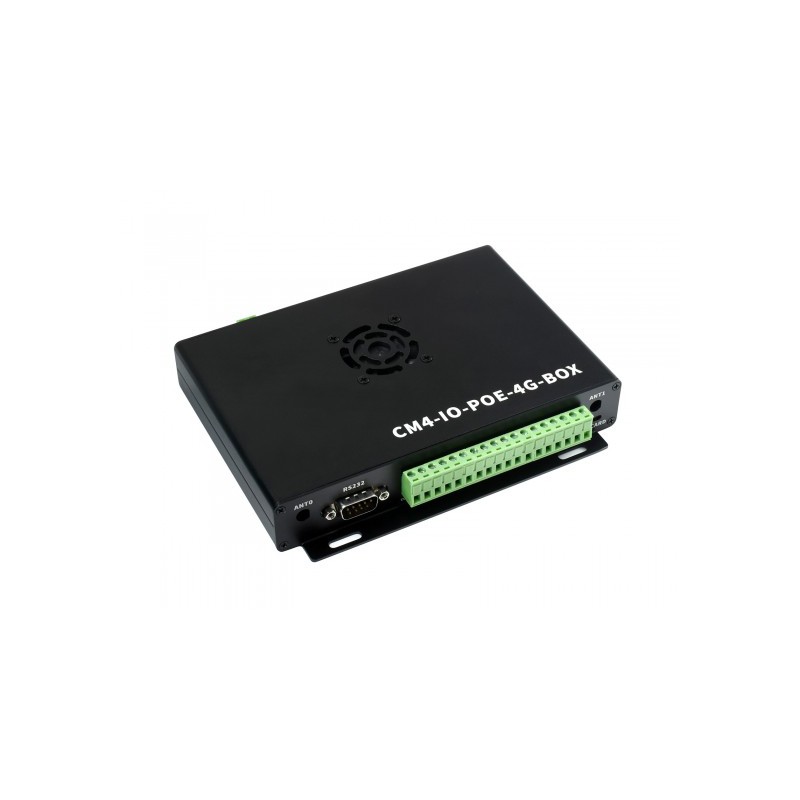

Designed to work with the Raspberry Pi Compute Module 4 (CM4), the board offers a wide range of connectors, including M.2, HDMI, USB, Ethernet, and RS232, ideal for industrial applications. Equipped with a cooling fan, PoE, and 5G/4G support, the board ensures reliable operation in harsh environments, enabling integration with peripherals. Additionally, MIPI DSI and CSI-2 connectors allow for connection to displays and cameras, while the HDMI port supports 4K 30fps video, making it ideal for IoT and visual applications. Waveshare CM4-IO-POE-4G-BOX-EU

24h
Available
Available quantity: 1
Kamami is the official distributor of Waveshare displays, accessories and modules.

Description

The Industrial IoT Mini-computer is an advanced baseboard designed specifically to work with the Raspberry Pi Compute Module 4 (CM4), enabling the rapid and easy creation of a mini-computer for industrial applications. The board includes a wide range of connectors such as M.2, CSI, DSI, HDMI, USB, Ethernet, PCIe, RS232, and RS485, allowing connection to many peripheral devices.


Each connector is precisely cut, and the labels make it easy to integrate with the system. The board is equipped with a cooling fan, which, along with the appropriate ventilation holes, ensures effective cooling and heat dissipation, particularly important in high-load environments. Additionally, the PoE (Power over Ethernet) system provides convenient power through a single Ethernet connector, minimizing the number of required cables. This solution makes the board ideal for applications that require reliable operation in harsh conditions. The device supports various communication standards, including 5G/4G, thanks to the M.2 B KEY connector and a SIM card slot, enabling a wide range of IoT applications. Furthermore, with MIPI DSI and CSI-2 connectors, it is possible to connect displays and cameras, opening up opportunities for visual and monitoring solutions.


The board also features HDMI ports supporting 4K 30fps output, making it suitable for projects requiring high-quality video. The inclusion of a real-time clock (RTC) with wake-up functionality allows for time synchronization and scheduling tasks at specified hours. With a wide input voltage range (7V to 36V) and the ability to connect external accessories, the board can be used in various configurations. The device also offers a wall-mounting system, enabling easy installation in diverse industrial environments. It is perfect for applications in binocular vision, PoE projects, and other industrial applications.

Features

  • CM4 slot: compatible with all Compute Module 4 variants
  • Network: Gigabit Ethernet RJ45, supports PoE compliant with 802.3af (5V/2.5A)
  • M.2 B KEY: supports 5G/4G module
  • SIM card slot: supports standard SIM card for 5G/4G/3G/2G connectivity
  • Isolated RS485 connectors, isolated RS232, PCIe Gen 2 x1, I2C, ADC, GPIO
  • 2 x USB 2.0 Type-A ports
  • 2 x MIPI DSI ports (15pin 1.0mm FPC)
  • 2 x MIPI CSI-2 ports (15pin 1.0mm FPC)
  • 2 x HDMI ports, supporting 4K 30fps output
  • RTC clock with battery socket and CM4 wake-up functionality
  • MicroSD card slot (for CM4 Lite version without eMMC)
  • Fan connector: allows speed control and measurement, 5V/12V input
  • Power input: 7V to 36V
  • Dimensions: 160 x 114 mm

Kit contains

  • Compute Module 4 PoE 4G board
  • Metal enclosure
  • Fan Fan-4010-PWM-12V
  • Screwdriver
  • Screw set
  • 12V 2A power supply
