ID: 1203696
zł2,986.16
Tax included

zł2,427.77 tax excl.

This industrial-grade edge AI/IoT NVR is based on the Raspberry Pi Compute Module 5, featuring a quad-core 2.4 GHz Arm Cortex-A76 processor and 16 GB RAM. The built-in Hailo-8 M.2 accelerator with 26 TOPS of power enables the analysis of up to four 1080p@30 FPS video streams directly on the device. It also offers four Gigabit Ethernet ports with PoE PSE (up to 12 W/port), an additional LAN, and a wide range of industrial interfaces, including RS485, RS232, and CAN FD. SeeedStudio 100077451

4 weeks
On request
Kamami is the official distributor of Seeed Studio modules and development kits. All products of this brand in our offer are original and come directly from the manufacturer.

Description

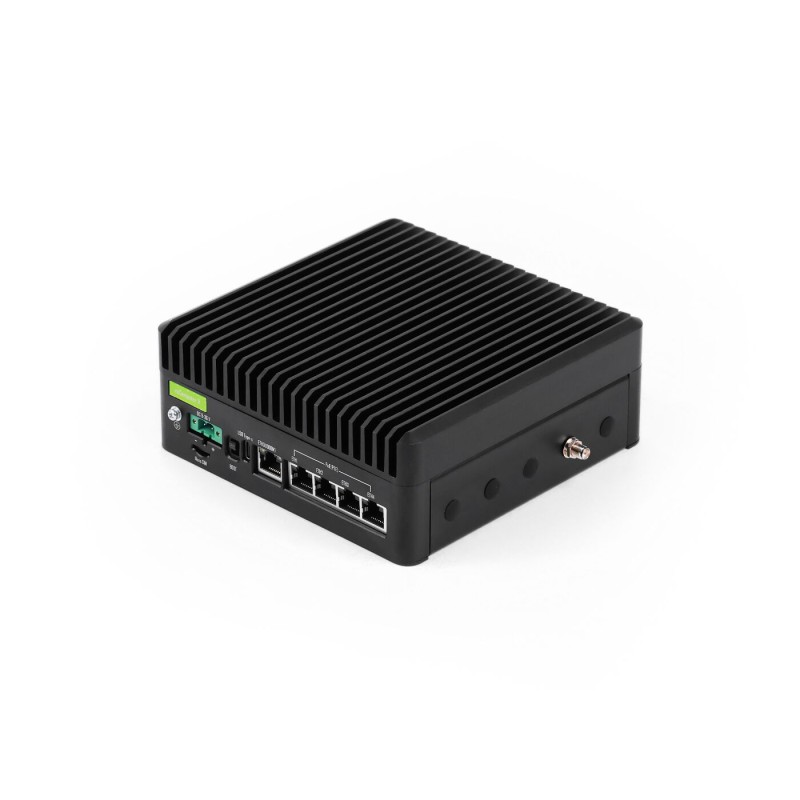

reComputer Industrial R2245-12 is an industrial-grade Edge AI/IoT NVR designed for reliable real-time video analytics. The device is based on the Raspberry Pi Compute Module 5 featuring a quad-core Arm Cortex-A76 2.4 GHz processor and offers 16 GB RAM, ensuring high performance in AI and surveillance applications. The integrated Hailo-8 M.2 accelerator delivers up to 26 TOPS of AI computing power, enabling on-device image processing without sending data to the cloud. The system supports up to 4 video streams at 1080p and 30 FPS with advanced image analytics.


The model is equipped with 4 Gigabit Ethernet ports with PoE PSE support (up to 12 W per port) and an additional Gigabit LAN port, allowing direct powering and handling of multiple IP cameras. A rich set of industrial interfaces – including RS485, RS232, CAN FD, and isolated digital inputs/outputs – enables integration with industrial automation systems. The aluminum enclosure with IP40 protection rating and fanless cooling ensure stable operation in temperatures ranging from -20°C to 50°C. A built-in RTC, hardware watchdog, and optional TPM 2.0 module enhance system security and reliability.

The device offers extensive connectivity options, including Wi-Fi 2.4/5 GHz, BLE 5.0, and optional 4G/5G, LoRa®, or Zigbee modules. Thanks to M.2 and Mini-PCIe slots, further expansion with NVMe storage and additional communication modules is possible. The reComputer Industrial R2235-12 is designed for continuous operation in demanding industrial environments, with guaranteed production support until January 2036. It is an ideal solution for intelligent surveillance, security systems, and Smart City and Industry 4.0 applications.

Features

  • Processor: Raspberry Pi Compute Module 5, 4× Arm Cortex-A76 2.4 GHz
  • AI accelerator: Hailo-8 M.2, 26 TOPS
  • RAM: 16 GB
  • eMMC storage: 32 GB
  • 4× Gigabit Ethernet with PoE PSE (max 12 W/port)
  • 1× additional Gigabit Ethernet
  • 4× USB 3.0, 1× USB-C (flash/debug)
  • 2× HDMI 2.0
  • 2× RS485 (isolated), 1× RS232 (isolated)
  • 1× CAN FD (isolated)
  • 4× DI (5–24 V DC), 4× DO (<60 V DC)
  • Nano SIM slot
  • 2× M.2 M-Key (NVMe), 1× M.2 B-Key (4G/5G), 1× Mini-PCIe (LoRa)
  • 4 × LED indicators, buzzer, Reset button
  • 3.5 mm audio jack
  • Connectivity: Wi-Fi 2.4/5 GHz, BLE 5.0, optional 4G/5G, LoRa®, Zigbee
  • Power supply: DC 9 to 36 V (2-pin screw terminal)
  • Enclosure: aluminum, IP40, DIN rail/wall mounting
  • Operating temperature: -20°C to 50°C
  • Certifications: CE, FCC, TELEC, RoHS, REACH
  • Passive cooling
  • Dimensions: 197.5 × 155 × 67.5 mm

Kit contains

  • reComputer Industrial R2245
  • 2 × mounting brackets
  • 4 × mounting screws
  • DIN rail bracket
  • DC power adapter (female jack to screw terminal)
  • 19V/4.7A power supply (US and EU plugs)
  • 11× 2-pin screw terminal (male)
  • 5 × 120Ω resistors
  • Wi-Fi/BLE antenna
1203696

Data sheet

RAM
16 GB
Module type
CM5
Wifi/Bluetooth module
Yes
eMMC storage
32 GB
