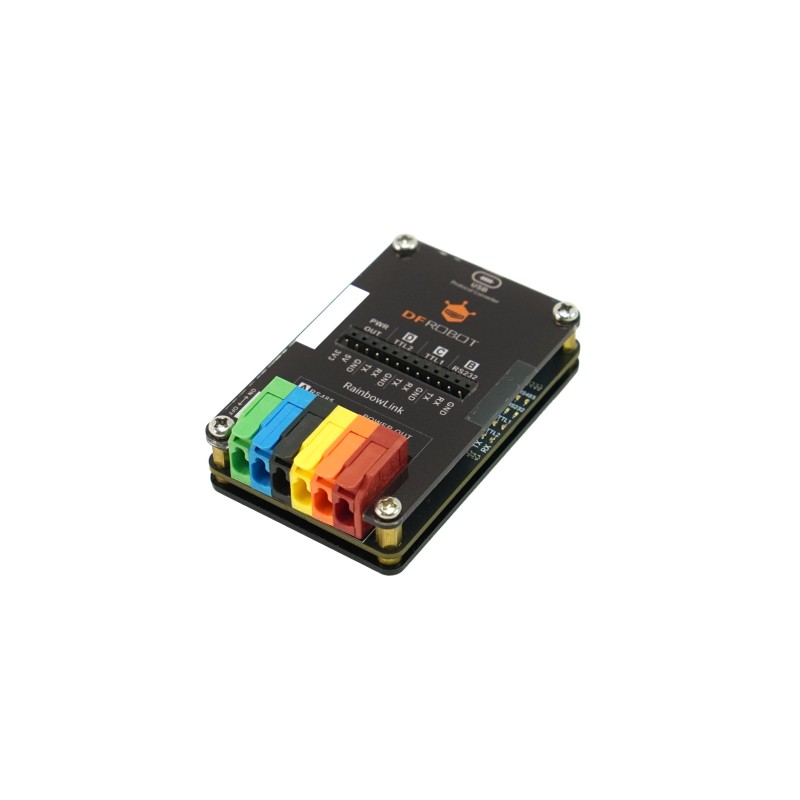

RainbowLink 4 Channel - USB to RS485/RS232/TTL converter
ID: 1196952
5902186300972
zł85.66
Tax included
zł69.64 tax excl.
Versatile USB protocol converter, offering four channels (RS485, RS232, two TTL) and 12V, 5V and 3.3V power supply, ideal for IoT and industrial applications. Compatible with Windows, Linux, LattePanda and Raspberry Pi, no drivers required, and optional installation allows easy device management. DFRobot TEL0185
Description
RainbowLink is an advanced USB protocol converter, designed for efficient multi-channel communication and power delivery, making it ideal for IoT and industrial applications. The device offers four independent channels — RS485, RS232, and two TTL channels — providing a comprehensive solution for engineers managing various communication protocols. With support for both Windows and Linux systems and compatibility with devices like LattePanda and Raspberry Pi, RainbowLink is suitable for a wide range of work environments.
By default, the device requires no drivers, and optional driver installation allows for the assignment of unique identifiers for easier management. Additionally, RainbowLink offers simultaneous power outputs of 12V, 5V, and 3.3V, eliminating the need for additional converters and power supplies. The quick-connect terminal blocks allow for rapid wire connections without the need for tools, and the compact dimensions make the device perfect for use both in laboratories and in the field.
Features
- USB Interface: Type-C
- Input Voltage: 5V
- Transmission Speed: 2400 to 128000 bps
- TTL Signal Level: 3.3V
- Number of TTL Channels: 2
- RS485 Channel: 1
- RS232 Channel: 1
- Power Outputs:
- 3.3V: max. 200mA
- 5V: directly from the USB Type-C port (max. 2A through the USB Type-C port of the computer; max. 500mA through the USB-A port)
- 12V: max. 800mA
- Compatibility: Windows and Linux; LattePanda, Raspberry Pi
- Driver Support: basic functionality without drivers; additional features after driver installation
- Dimensions: 72 x 47 x 23mm
