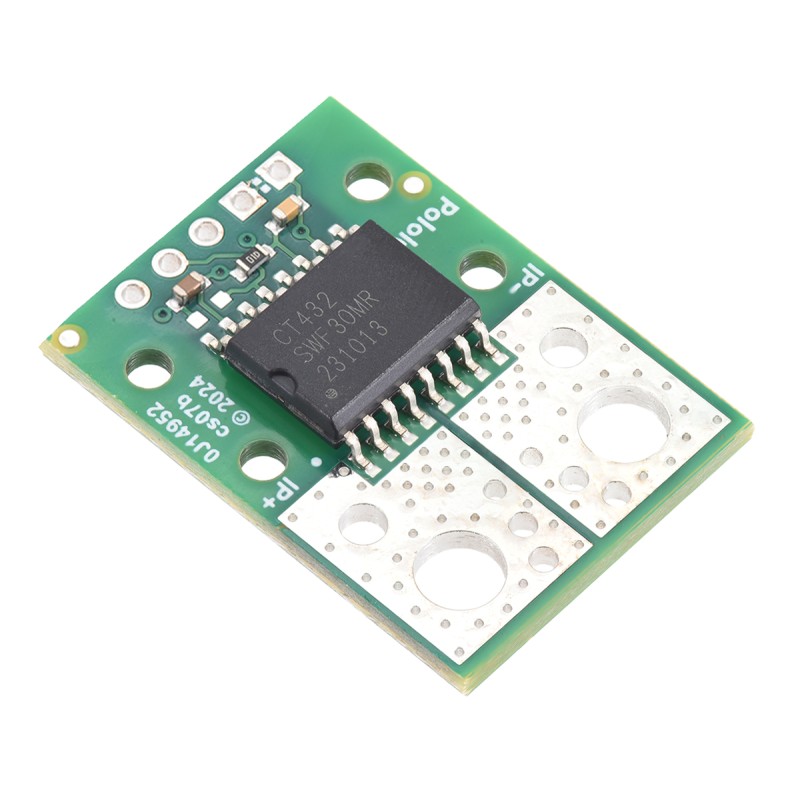

Main view
search
  • Main view
  • Top view
  • Bottom view
ID: 1194433
zł48.01
Tax included

zł39.03 tax excl.

Compact current sensor Pololu 5301 based on the CT432-HSWF30MR, designed for current measurement in the range from -30A to +30A at 5V supply in applications requiring galvanic isolation and analog voltage output. Pololu 5301

24h
Available
Available quantity: 3
Kamami is the official distributor of electronic modules and Pololu robotic parts. All products of this brand in our offer are original and come directly from the manufacturer.

Description

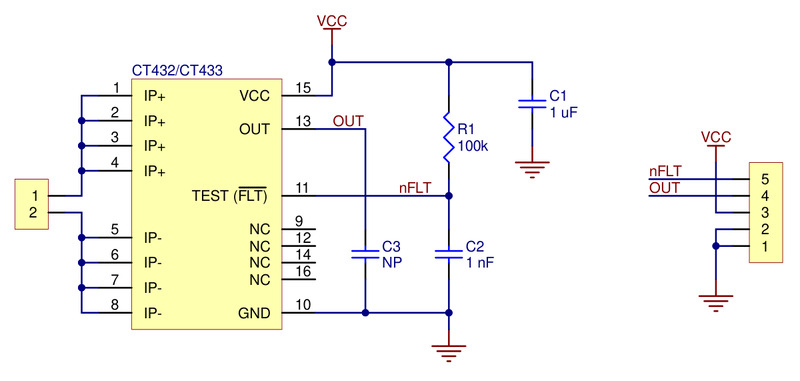

Compact current sensor based on the CT432-HSWF30MR, designed for measuring AC and DC currents in the range from -30 A to +30 A at a nominal supply voltage of 5 V. Measurement is performed using TMR (tunneling magnetoresistance) technology in an isolated current path with very low resistance (approx. 1 mΩ), which reduces power losses and minimizes the impact of the sensor on the measured circuit.


The output signal is provided as an analog voltage proportional to the measured current, with a zero-current output level of approximately 2.5 V. The module features a wide bandwidth up to 1 MHz and a short response time of approximately 300 ns, enabling monitoring of rapidly changing currents in power electronics and switching applications. The sensor includes an FLT output that indicates when the allowable current range is exceeded, which can be used in protection and diagnostic systems.

Features

  • sensing IC: CT432-HSWF30MR
  • sensing technology: TMR (tunneling magnetoresistance)
  • current measurement range: -30 A to +30 A
  • current type: AC and DC (bidirectional)
  • supply voltage: 4.75 - 5.5 V
  • nominal voltage: 5 V
  • output type: analog, proportional to current
  • sensitivity: 66.7 mV/A
  • zero-current output voltage: approx. 2.5 V
  • bandwidth: up to 1 MHz
  • response time: approx. 300 ns
  • primary current path resistance: approx. 1 mΩ
  • measurement method: series (in-line), galvanically isolated

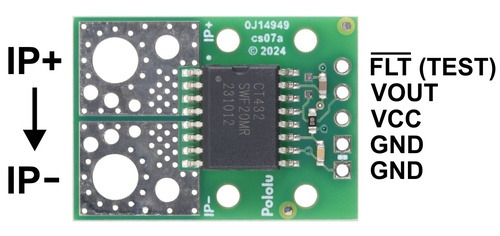

  • FLT output (overcurrent indication)
  • FLT threshold: approx. 110% of the measurement range
  • supply current: approx. 6 mA
  • PCB: 2 layers, 2 oz copper
  • signal pin pitch: 2.54 mm

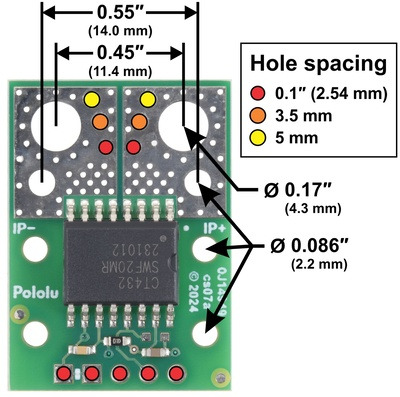

  • dimensions: 0.8″ x 1.1″ (approx. 20.3 x 27.9 mm)
  • weight: approx. 2.3 g
  • operating temperature: -40°C to +125°C
  • manufacturer: Pololu
  • manufacturer code: 5301
1194433

Data sheet

Interface
Sygnał analogowy
Zakres pomiarowy
±30 A
Sposób podłączenia
Szeregowy
