2.9" e-Paper Display 296x128 SPI (G) - Waveshare 33215
ID: 1202592
zł61.94
Tax included
zł50.36 tax excl.

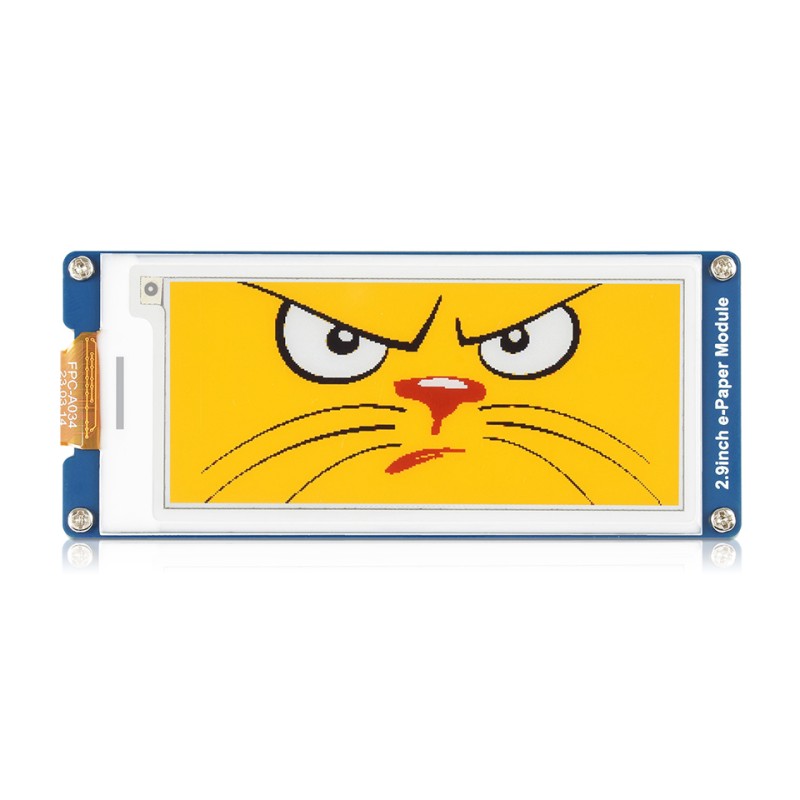

2.9" e-Paper display with a resolution of 296 x 128 px, supporting red, yellow, black, and white colors, featuring an SPI interface and very low power consumption. Includes a driver board. Waveshare 2.9inch e-Paper Module (G)
Description
Waveshare 33215 is a 2.9" e-Paper (E-ink) display designed for applications that require continuous content visibility with minimal power consumption. The electrophoretic technology enables image display without backlight, using only ambient light, and the displayed content remains visible even after power is removed.
A resolution of 296 x 128 px and support for four colors: red, yellow, black, and white allow the presentation of text, icons, and simple informational graphics. A viewing angle greater than 170° ensures good readability regardless of the viewing position.
The version with a driver board is equipped with an SPI interface and an onboard voltage level translator, enabling direct connection to microcontrollers and single-board computers operating at 3.3 V or 5 V. The module is suitable for price tags, shelf labels, identification tags, warehouse labels, and battery-powered devices.

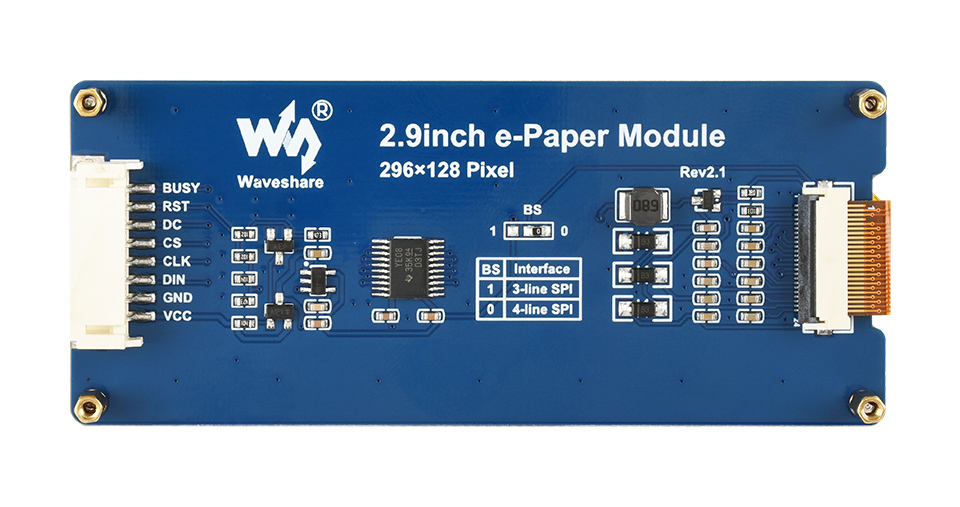

- BUSY – busy status output (display operating status)
- RST – external reset, active low
- DC – data/command selection (high: data, low: command)
- CS – SPI chip select, active low
- CLK – SPI clock line (SCLK)
- DIN – SPI data input (MOSI)
- GND – ground
- VCC – power supply (3.3 V / 5 V)
Features
- Display type: e-Paper (E-ink)
- Screen size: 2.9"
- Resolution: 296 x 128 px
- Display colors: red, yellow, black, white
- Gray scale: 2
- Display type: passive, reflective
- Viewing angle: >170°
- Communication interface: SPI (3-wire, 4-wire)
- Backlight: none
- Power consumption during refresh: <30 mW
- Standby current: <0.01 µA
- Fast refresh time: 11 s
- Full refresh time: 16 s
- Operating voltage:
- version with driver board: 3.3 V / 5 V
- Active area dimensions: 66.89 x 29.05 mm
- Dot pitch: 0.135 x 0.135 mm
- Dimensions:
- with driver board: 89.50 x 38.00 mm
Kit includes
- 1x 2.9" e-Paper Module (G) Waveshare 33215
- 1x PH2.0 8-pin cable
1202592
Data sheet
- Screen type
- E-Ink/Epaper
- Diagonal (inch)
- 2,9
- Resolution
- 296 x 128 px
- Interface
- SPI
- Touch
- No
