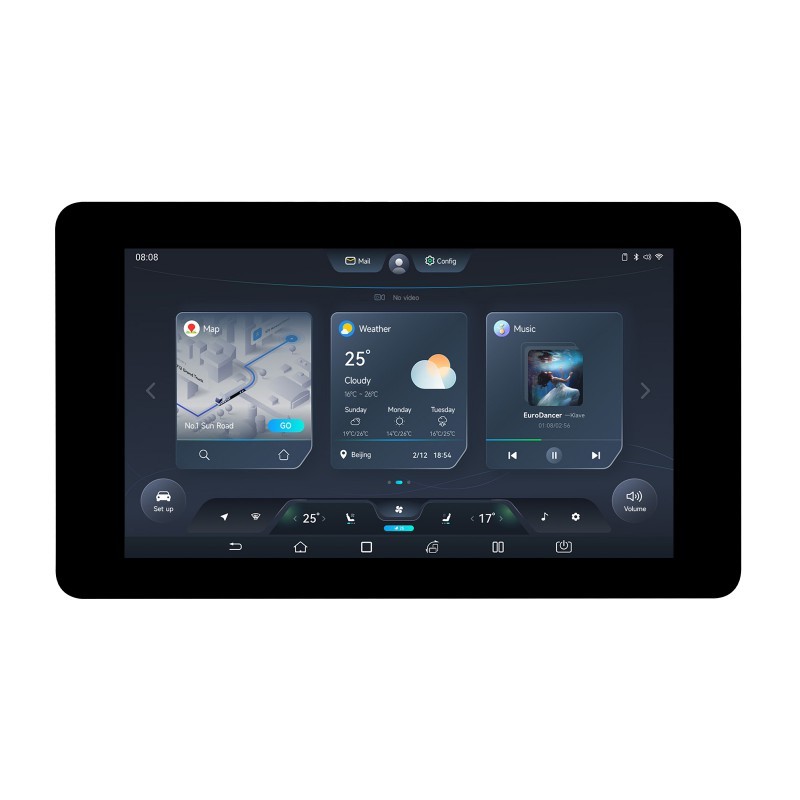

ESP32-S3 7" capacitive touch display board 800x480 - Waveshare 27078
search
  • ESP32-S3 7" capacitive touch display board 800x480 - Waveshare 27078
  • ESP32-S3 7" capacitive touch display board 800x480 - Waveshare 27078
  • ESP32-S3 7" capacitive touch display board 800x480 - Waveshare 27078
  • ESP32-S3 7" capacitive touch display board 800x480 - Waveshare 27078
ID: 1195674
zł173.09
Tax included

zł140.72 tax excl.

ESP32‑S3‑Touch‑LCD‑7 is a comprehensive solution for developing HMI panels, automation systems, industrial controllers, and IoT applications with a graphical interface. Its large touchscreen display, wireless connectivity, and extensive peripheral interfaces enable flexible and rapid deployment of projects requiring visualization and interaction with the environment.

4 weeks
Awaiting delivery
Kamami is the official distributor of Waveshare displays, accessories and modules.

Description

The development module is based on the ESP32‑S3‑N8R8 chip, featuring a dual-core Xtensa LX7 processor clocked up to 240 MHz, integrated 2.4 GHz Wi‑Fi and Bluetooth 5 LE. It includes 8 MB Flash and 8 MB PSRAM, a built-in antenna, and a 7-inch TFT display with a resolution of 800 × 480 px and a 5-point capacitive touch panel controlled via I²C. With a rich set of interfaces (CAN, RS‑485, I²C, UART, USB‑C, microSD) and support for graphical libraries (e.g., LVGL), it is ideal for building HMI interfaces and other ESP32 applications requiring visualization.

Features

  • ESP32‑S3‑N8R8 microcontroller with dual-core Xtensa LX7 (up to 240 MHz)
  • 512 KB SRAM, 384 KB ROM, 8 MB PSRAM, 8 MB Flash
  • Built-in Wi‑Fi 802.11 b/g/n and Bluetooth 5 LE antenna
  • 7″ TFT display, 800×480 px, 65K colors, 5-point capacitive touch panel (I²C with interrupts)
  • Connectors: RGB/SPI for LCD, I²C, RS‑485, CAN, UART1/UART2, sensor headers, TF card slot
  • USB Type-C (full-speed), USB–UART converter
  • PH2.0 socket for 3.7 V lithium battery connection
  • Independent power supply options for module and peripherals
  • Adjustable I²C logic level (3.3 V / 5 V)
  • Indicator LEDs: PWR, CHG, DONE
  • BOOT and RESET buttons

Included

  • ESP32-S3-Touch-LCD-7 ×1
  • HY2.0 2P to 2PIN male cable 10 cm ×2
  • HY2.0 2P to 3PIN male cable 10 cm ×1
  • HY2.0 2P to 4PIN male cable 10 cm ×2
